| Prod Model: |
G36D |
| Markets: |
North America,Eastern Europe,Oceania,Eastern Asia,Western Europe |
| Brand: |
Sinewave |
| Package: |
Yes |
| Channel: |
4 |
| Power: |
4 X 200W |
| Processing: |
DSP |
| AC Supply: |
100-265VAC |
| Input Source: |
Analog(Stereo)/Coaxial/Optical/USB2.0 |
| Type: |
Mini Amplifier |
| Usage: |
Hi-Fi |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Output Number: |
4 |
| Conductive Mode: |
D |
| Sound Channel: |
4 |
| Voltage: |
100-265VAC |
Product Description
FEATURES
Optical /Coaxial/USB2.0/Analog 4 switchable source support.
High power version: 4X200W/4ohm 4CH mode or 2X200W+2X200W(sub) 2.1CH mode.

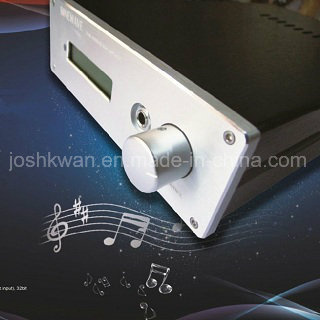

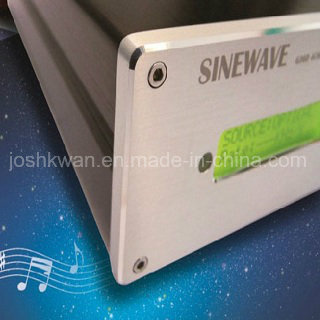

LCD display system and only one rotary encoder control system.
All 24bit/192kHz Hi-End system. All preamp digital signal processed by TI SRC, high quality sound output, and ADI professional audio DSP core process middle chain digital signal.
True USB 2.0 interface, 24bit/192kHz in win7 and OS system, support upsampling to 192kHz

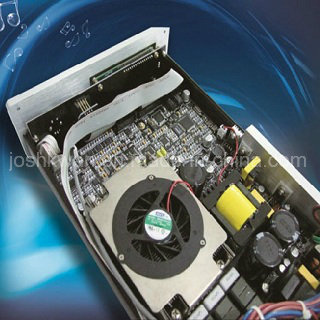

Dual TAS5630B PHD chip inside, 4CH mode or 2.1 mode software control.
Multilayer PCB design, high power density and very well EMI.
Auto fan speed control system, no fan cooling noise at standby status.
High efficiency system, very low temperature rise after 24hours continue working.
High power SMPS support, global AC supply. 110V or 230V auto switch.
Perfect remote control function, concise remote controller with infrared ray.
Compact console AMP, one rotary code control.
Ultra low EMI design and parts, support Radio signal amplify.
Hi-end Headphone amplify system, Headphone plug insert main out mute function.
2.1 CH mode, subwoofer channel cut off frequency and gain adjust alone.
SPDIF out function, suit for record and cascade connection.
SPECIFICATION:
| Power Out: | 2.1 mode: 2X200W/4ohm(subwoofer)+ 2X200W/4ohm
4way mode: 4X200W/4ohm |
| Input | Analog: 44.1K/48K/88.2K/96K/176.4K/192kHz @ 16bit/24bit
SPDIF: 44.1K/48K/96K/192kHz @ 16bit/24bit
USB2.0: 352.8 kHz (44.1K 88.2K 176.4KkHz input) or 384 kHz (48K/96K/192KkHz input), 32bit |
| Frequency Response | -3dB, 24bit/192KHz input 10 Hz to 48 KHz |
| Loader | 2Ω/4Ω/8Ω |
| AC Power | 110Vac or 230Vac/ 50 or 60Hz |
Sinewave Electronics company established in 2008 in hangzhou, China. We are a professional company in developing and manufacturing audio amplifier products for both consumer and industrial areas. Our products has been distributed in 35 countries around the world and it's been widely used in audio broadcasting and other fields. In recent years, professional customers have developed rapidly and broadcasting, ultrasound and sonar products have been promoted and applied in China.
Sinewave have good experience to develop professional audio amplifier and sonar amplifier, cover the wide range from 0Hz-1MHz, power range from several watt to thounds watt.
SMPS and class D AMP all-in-one solution is Sinewave's core technology.
Above 3000W AMP, Sinewave engineers developed advanced Multifeedback System with Ultrafast Mosfet Bridge class D AMP, it's been widely used in our high level AMP, covered 2500W-10000W AMP.
Especially Sinewave technology invented the transformerless constant voltage amplifier, sinewave developed original'B to B 'technology, it is the high-end and smart solution in this area, this technology is gradually and widely applied to audio and industry system. 4KW 100V industry AMP have applied to industry testing site, works well. This technology support 100W-5000W power level and 10Hz -40kHz frequency range.
Sinewave have over 5 extremely rich experience engineers, all of them have over 10years professional experience in product development. From older tube amplifier to good sound Class A amplifier, even classAB amplifier to class H, Sinewave have good analog amplifier design to product ability.
New century, Green engineering is our direction, High watt density switch power supply technology may fit in high efficiency class D technology, sinewave has been following closely of the multiunit high efficiency technology, completed more types of technology directivity products.
Products to the market and gradually mature, now sinewave products covering professional audio AMP to Hi-end home audio AMP, especially some military project settle down our company, sinewave sonar amplifier have widely used in some special area, win very good praise.
We happily face to the opportunities and challenges that come with new energy technologies. Sinewave face to the technical challenge, dare to try the new technology, unites our customers, believe we have bright future.
Note: B to B technology, it is one new class D technology from sinewave, balance signal input and balance powered signal output, good signal performance and better stability.
