| Prod Model: |
PI5500 |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Knob Control |
| Speaker Material: |
Metal |
| Certification: |
CCC |
| Monitor: |
LCD Screen |
| Application: |
Home, Communication Electronic Products, Industry, |
Product Description

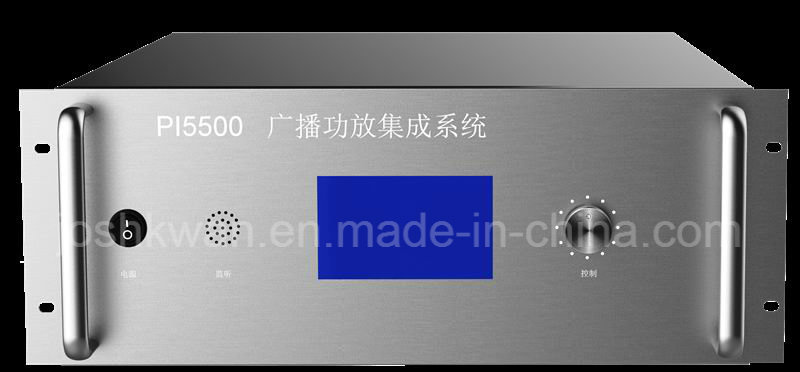

PI5500 Integrated audio power amplifier and signal control system, audio controls/power amplifier/signal processing functions such as integrated system solutions.
Advanced System
Using the most advanced integrated devices, by means of simple products, common features of complex systems, modular product design, architecture, building blocks flexible configuration, achieving a higher level of functional integration.
Typical system consists of several components, versatile line complex, lots of points of failure, low reliability, the new system uses a modular design, omitting repeating functional units, each functional unit integrated as plug-in boards, flexible configuration and maintenance.
The reliability of the system
Much higher reliability compared to distributed systems:
1) Omitted repeating functional units, single-chip processing.
2) Bus structure, eliminating the external wiring, connect the input, connect the output ,no longer consider middle unit wiring, connection failure is greatly reduced.
3) Modular design, high product consistency, high reliability is guaranteed

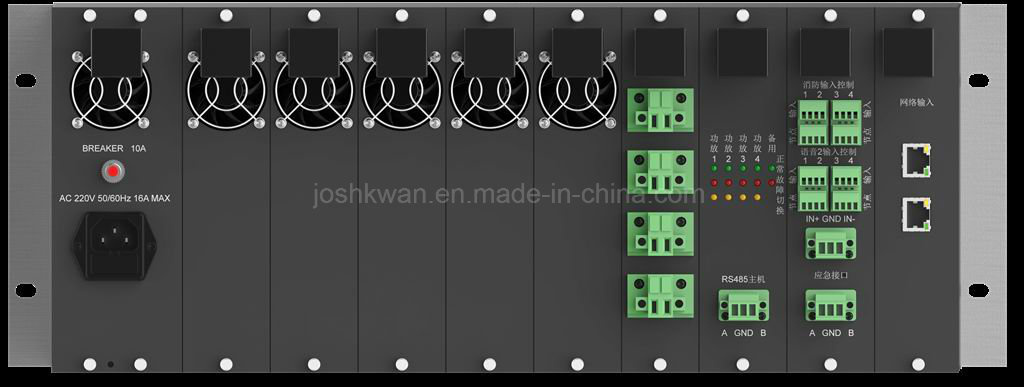

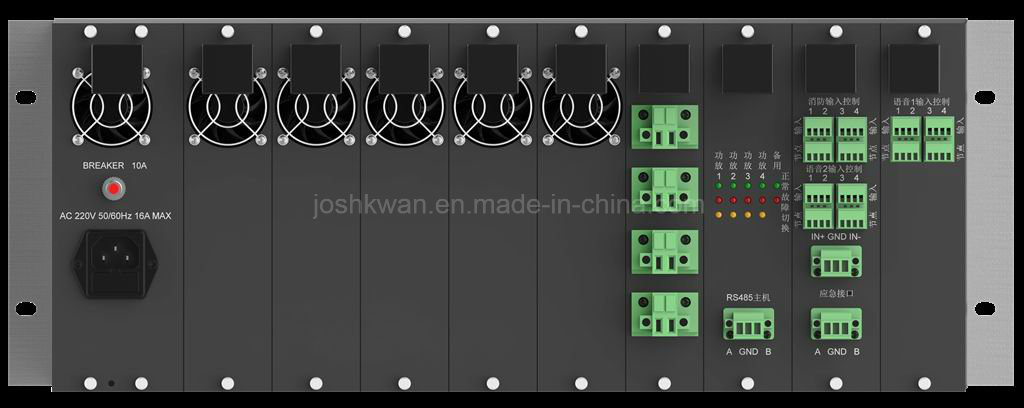

Host integrated emergency switch device/5 units amplifier/amplifier service switch/ Lightning arrester /COBRANET module/power module, used module structure, maximum degree improve unit density, optimization function configuration, latest of amplifier service switch monitoring control unit can effective system online working ability, ensure reliable work, 5 units amplifier used latest of d class technology, high efficiency, small volume, outputsignal better, amplifier work status LCD screen real-time displayed, fault alarm displayed, Setting status query displays, highly integrated, and highly intelligent.
Features
1) Integrated 5 amplifier units, 4 main and 1 backup configurations, each module can be configured with 100W/300W/500W, standard 100V signal output.
2) Emergency switch module for integration, achieving 4-channel LINE1 input /LINE2 input 1emergency signal input/1emergency fire signal input, the fire emergency signal has highest priority, emergency signal as second priority, 4 types of input signals may be achieved through an external node based on priority configuration for signal output.
3) Amplifier service switch modules, achieving 4-channel main amplifier and 1 standby power amplifier, sync switch input/output, audio input signal/amplifier fault/switch success real-time indicate. Automatic detection of input signal, automatic detection of output signals, real-time fault channels detection, automatic switch replacement, real-time status can be queried through the control bus.
4) Power modules, reliable and efficient power supply unit meets 2000Wrms audio power, perfect protection function to ensure stability.
5) Lightning arrester module, 4 output power signal lightning protection using discharge tube TVS and hybrid, reliable lightning protection, integrated output filter circuits, providing high quality power signal output.
6) Analog input module, 4-channel analog signal input and filtering, access emergency switch unit LINE1.
7) COBRANET module, this module 4-channel audio access, integrated CM2 module and the AD converter, can replace analog input module.
8) 110V or 220Vac 50Hz/60Hz AC power.
Sinewave Electronics company established in 2008 in hangzhou, China. We are a professional company in developing and manufacturing audio amplifier products for both consumer and industrial areas. Our products has been distributed in 35 countries around the world and it's been widely used in audio broadcasting and other fields. In recent years, professional customers have developed rapidly and broadcasting, ultrasound and sonar products have been promoted and applied in China.
Sinewave have good experience to develop professional audio amplifier and sonar amplifier, cover the wide range from 0Hz-1MHz, power range from several watt to thounds watt.
SMPS and class D AMP all-in-one solution is Sinewave's core technology.
Above 3000W AMP, Sinewave engineers developed advanced Multifeedback System with Ultrafast Mosfet Bridge class D AMP, it's been widely used in our high level AMP, covered 2500W-10000W AMP.
Especially Sinewave technology invented the transformerless constant voltage amplifier, sinewave developed original'B to B 'technology, it is the high-end and smart solution in this area, this technology is gradually and widely applied to audio and industry system. 4KW 100V industry AMP have applied to industry testing site, works well. This technology support 100W-5000W power level and 10Hz -40kHz frequency range.
Sinewave have over 5 extremely rich experience engineers, all of them have over 10years professional experience in product development. From older tube amplifier to good sound Class A amplifier, even classAB amplifier to class H, Sinewave have good analog amplifier design to product ability.
New century, Green engineering is our direction, High watt density switch power supply technology may fit in high efficiency class D technology, sinewave has been following closely of the multiunit high efficiency technology, completed more types of technology directivity products.
Products to the market and gradually mature, now sinewave products covering professional audio AMP to Hi-end home audio AMP, especially some military project settle down our company, sinewave sonar amplifier have widely used in some special area, win very good praise.
We happily face to the opportunities and challenges that come with new energy technologies. Sinewave face to the technical challenge, dare to try the new technology, unites our customers, believe we have bright future.
Note: B to B technology, it is one new class D technology from sinewave, balance signal input and balance powered signal output, good signal performance and better stability.
