Garage Door Forward and Reverse Remote Motor Controller Kl-Clkz02b

Prod Model:	L-CLKZ02B
Ambient Temperature:	-20c -- +50c
Weight/G:	36g (Without Case),76g(Case)
Current/Ma:	12
Frequency:	315MHz, 433MHz, Optional
Adjustable Frequency:	250-460MHz
Use:	Cars, Garage Doors , Gates Doors, Alarm Systems Et
Encoding Type:	Fixed, Learning, Rolling/Hopping Code
Battery:	23A 12V
Modulation Way:	Ask/Ook
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery

Product Description

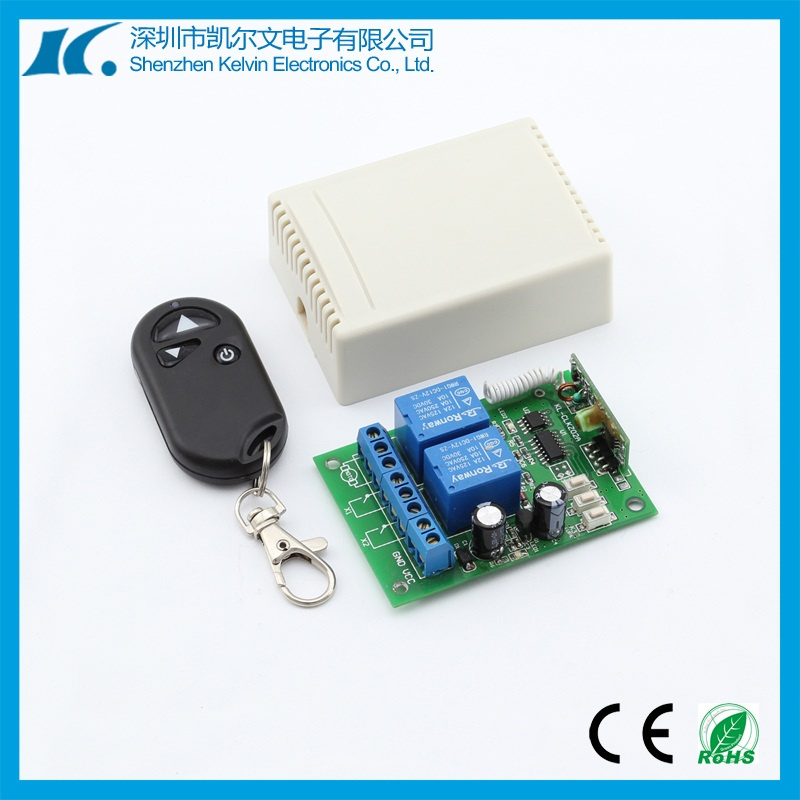

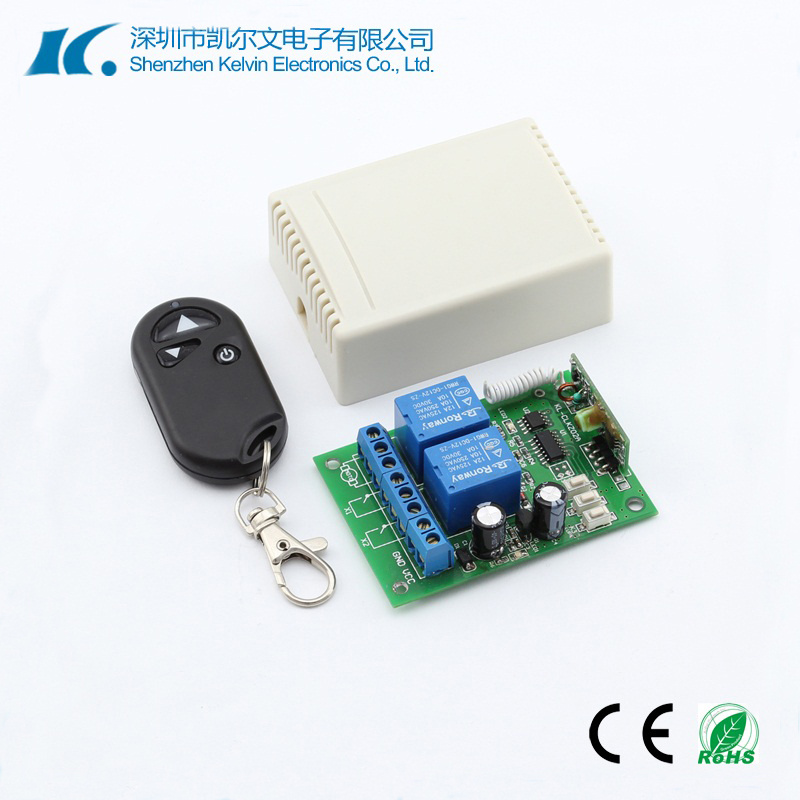

 Garage Door  Forward and Reverse Remote Motor Controller KL-CLKZ02B

    The product is one of wireless remote controller which work with low directly current, pressing button "UP STOP DOWN"  which on remote control to make motor forwards, stop, reverse. When motor run the right position, it will trigger limited switch and stop immediately, it widely be used in controlling curtain, electronically gate/window etc.

Technology data

Model	KL-CLKZ02B
Name	Remote curtain controller
Operating voltage	DC12V
Quiescent current	20mA
Rated power	60W
Operating frequency	315-433MHz
Receiving sensitivity	-95dBm
Encoding mode	match code

Connection diagram:

How to add/delete remote controls
1. Remote control works after match remote switch. Remote control must have 3 buttons at least. The 3 buttons must match the switch separately.
2. Jumper on S1, then hold the learning button K1, when the indicator light blinks, press the Forward key of the remote control until the light off, that means Forward key match code successfully. Repeat above steps to match Reverse and Stop. After all buttons match code, the jumper must be removed from S1. Otherwise, if press remote control at Momentary mode, it will clear all code. The order of matching must be Forward→Stop→Reverse.
3. Working mode can be adjusted with a jumper on S2. Jumper on S2, Momentary mode. Nothing on S2, Latched mode.
4. If need add more remote controls, only repeat step 1 is ok and 20pcs at most.
5. If need delete remote controls ,Hold the learning button of main board more than 3 seconds until led indicator from flashing to extinguish, then release finger.
6. This product can learn remote controls with the following coding chip: PT2262,PT2260,EV1527,PT2240 etc

Attention
The correct operation step must be Forward-Stop-Reverse, or Reverse-stop-Forward,
Please don't try as Reverse-Forward or Forward-Reverse. Thanks
