| Prod Model: |
GCK |
| Name: |
Low Voltage Switchgear |
| Reted Frequency: |
50Hz/60Hz |
| Application: |
Industrial, High-Rise Buildings |
| Standard: |
ISO9001:2008/IEC Standard |
| Rated Voltage: |
12kv |
| Room Design: |
H.V.Transformer and L.V.Room |
| Switch: |
Cabinet Box |
| Switchgear: |
Hv/LV |
| Special Service: |
Customized |
| Signal: |
Continuous |
Product Description

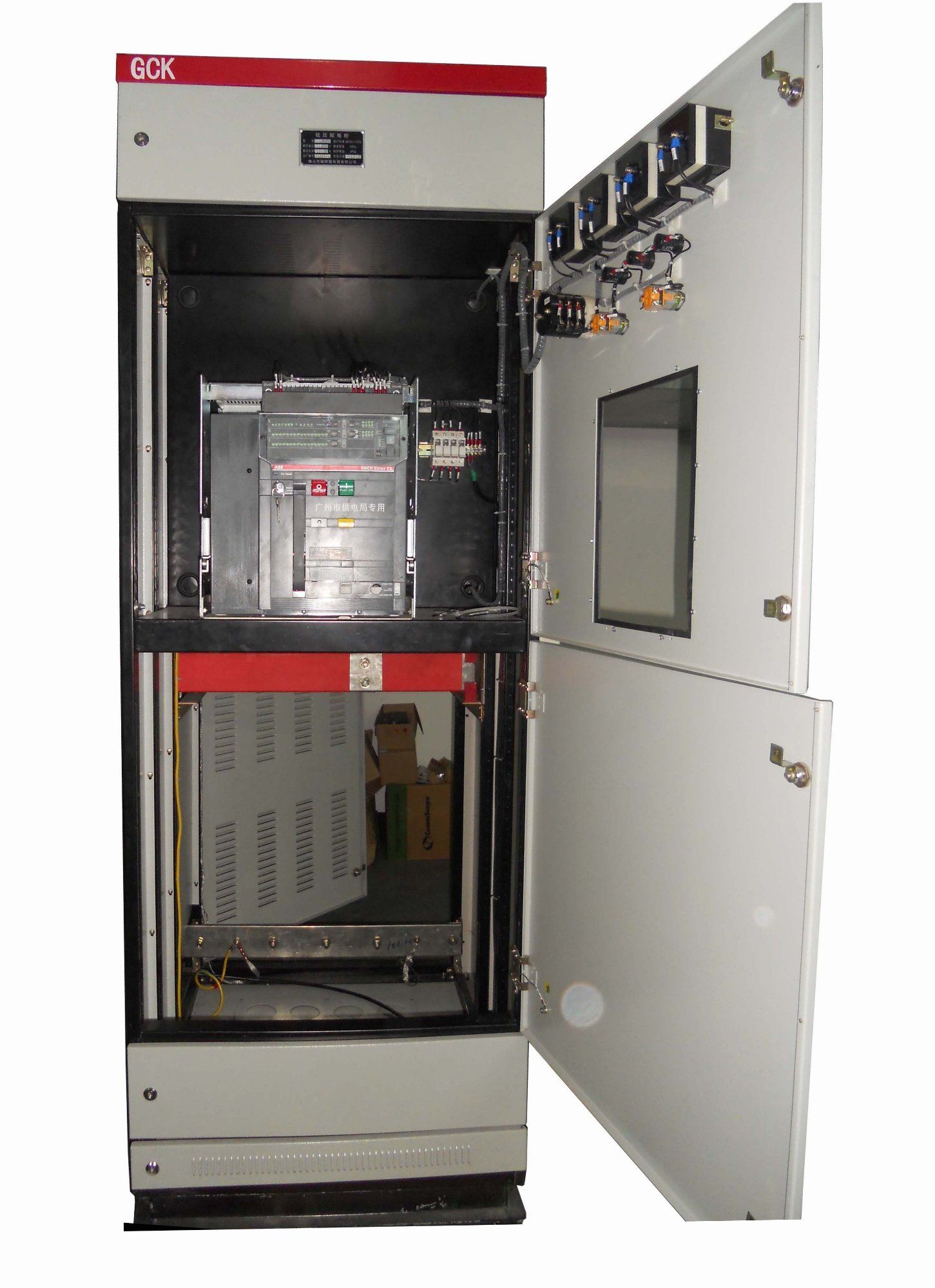

GCK series Low Voltage Power Switchgear
Product Description
GCK series Low Voltage Power Switchgear
GCK low-voltage drawer type switchgear cabinet is applicable to rated operating voltage 380V. AC three-phase four-wire and
three-phase five-wire system can be used as centralized control of power- receiving, power supply, reactive power compensation, calculation of electric energy, illumination and motor in the power plant of power system, industrial and mining enterprises and high-rise building substations.
This product complies with the Standards GB7251 Low-voltage Switchgear Assembly and Control Equipment, JB / T9661 Low-voltage Drawer Type Switchgear, IEC 60439-1 Low - voltage Switchgear Assembly and Control Equipment.
Features:
1. Metal-enclosed and separately arranged, with high protection Category
2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces
3. Protection Category of enclosure reaches to IP4X,
4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining
Technical Specification
| Item | Unit | Specification |
| Rated Working Voltage | kV | 7.2,12 |
| 1Min Power Frequency Withstand Voltage | kV | 32, 42 |
| Lightning Pressing Voltage (Whole-Band) | kV | 60, 75 |
| Rated Frequency | Hz | 50 |
| Main Busbar Rated Currenct | A | 630, 1250, 1600, 2000, 2500, 3150* |
| Sub-Busbar Rated Currenct | A | 630, 1250, 1600, 2000, 2500, 3150* |
| 3S Thermal Stability Currenct (Effective Data) | kA | 16, 20, 25, 31.5, 40, 50 |
| Rated Dynamic Stability Currenct (Peak Value) | kA | 40, 50, 63, 80, 100, 125 |
| Protection Categoty | | Enclosure:IP4X, CB Compartment open: IP2X |
Environmental Requirement
Normal Operation Conditions
1. Altitude 1000m
2. Ambient temperature: -10°C ~ +40°C (temperature can be as low as -25°C during transportation and storage)
3. Relative humidity: daily relative humidity 95% on average; monthly relative humidity 90% on average
4. Seismic scale of earthquake 8
5. The switchgear is applicable to category II contaminated environment.
Special Operation Conditions
If the switchgear will be used in conditions that exceed the normal environmental conditions, users shall
negotiate with the manufacturer.
Application
The switchgear is mainly used in power plants, small- and mediumsized power generators, industrial and mining enterprises, and secondary substations of power system for power receiving, power transmission, and startup of large-sized high-voltage motor in order to implement control, protection, and monitor.
