Gctfty 288 Core G652. D Microduct Air Blowing Optical Fibre Cable

Gctfty 288 Core G652. D Microduct Air Blowing Optical Fibre Cable
Price: US $ 0.1-2.9/Meter
Min Order: 5000/Meter
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: GCYFTY-288B1.3
Installation: Air Blown in Microduct
Fiber Count: 288 Core
Weight: 78kg/Km
Drum Length: 2km, 4km, 6km
Fiber Type: G652.D
Application: Communication
Certification: CCC
Sheath Material: HDPE

Product Description

GCTFTY 288 Core G652.D Microduct Air Blowing Optical Fibre Cable

A. Product Description
Air Blown Optical Fibre Cables are ultra light weight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower initial investment and the flexibility to install and upgrade to the latest fiber technologies after the initial installation.


B. Features and Benefits
1. 12~288 cores fiber optic cable
2. Perfect cable structure with high fiber density
3. Accurate fiber length balance to ensure stable performance
4. No gel in cable core for water blocking
5. Sheath structure innovation to enhance blowing performance
6. Greater blowing distance
7. Fiber: G.652D, G.657A1, G.657A2

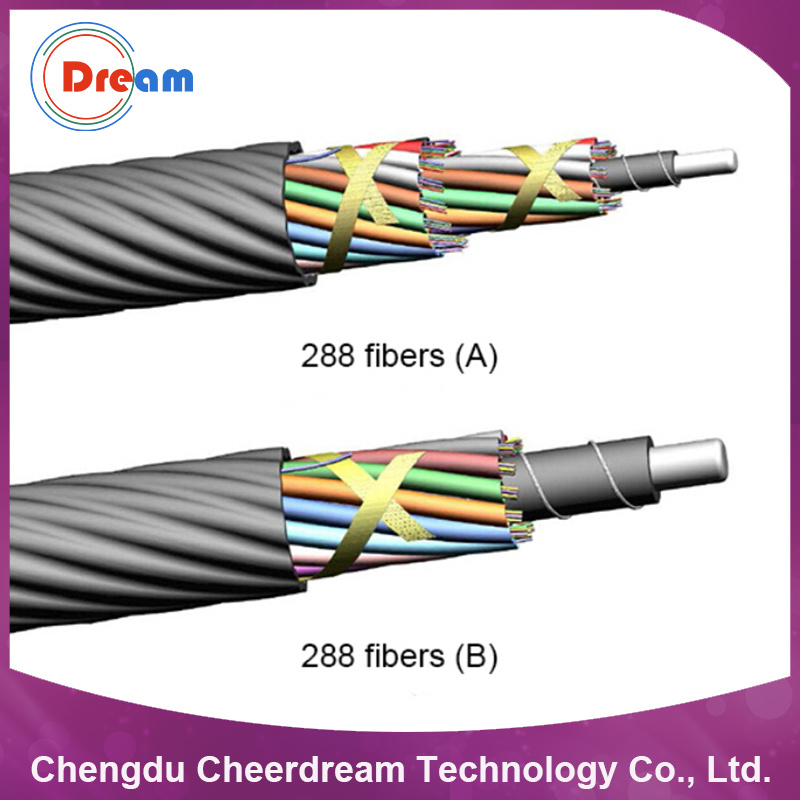

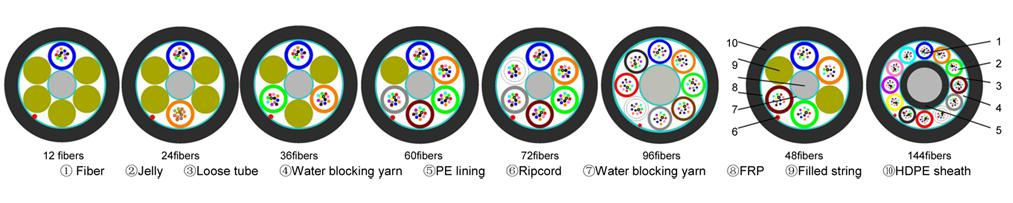

C. Cable Structure



D. Parameter
Fiber Count (F)Outer Diameter(mm)Weight (kg/km)Max tensile strength (N)Temperature
125.2±0.125500-40ºC ~ +70ºC
245.2±0.125500
365.2±0.125500
485.2±0.125500
605.2±0.125500
725.2±0.125500
966.1±0.1351000
1447.9±0.1571200
1927.9±0.155500-20ºC ~ +70ºC
2167.9±0.155500
2889.4±0.1781000

E. Blowing Performance
Fiber Count12~72 Fibers96 Fibers144 Fibers192~216 Fibers288 Fibers
Microduct10/8mm or 12/10mm10/8mm or 12/10mm12/10mm12/10mm14/12mm
Blowing MachinePLUMETTAZ PR-140; MiniJet-400
Blowing Pressure15bar
Blowing Distance1800m or 2300m1800m or 2300m1200m1500m1500m

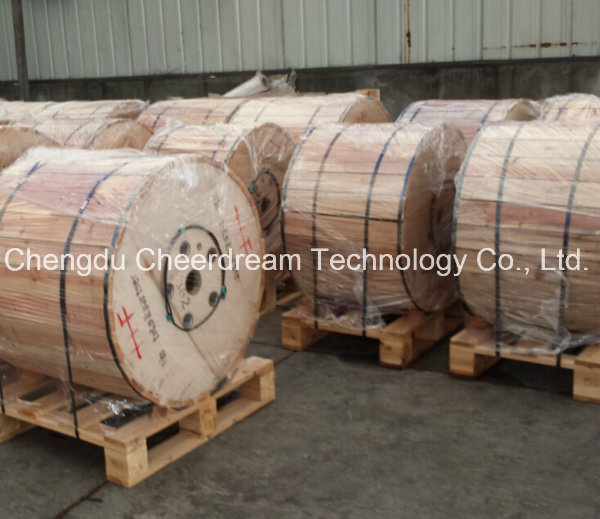

F. Packing:

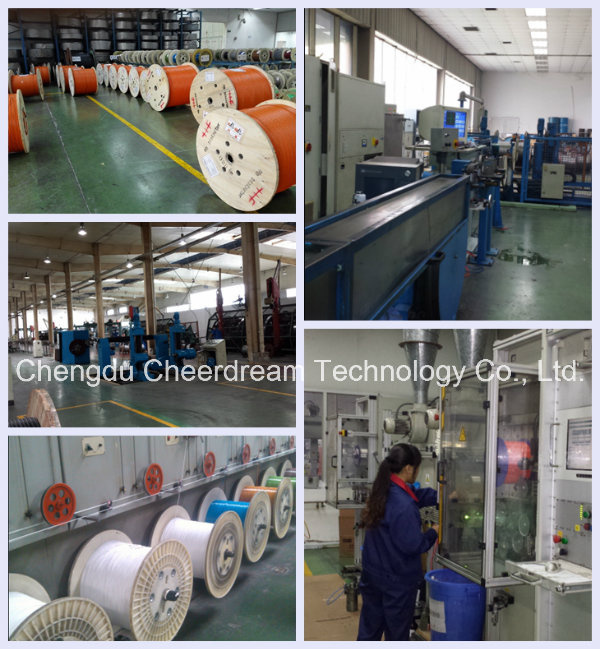

G. Factory:



H. FAQ:

1. Where is your company?

     Our company lacated in Chengdu City, Sichuan Province. Welcome to visit our company.

2. Is the optical fibre cable sample available?

     Yes, we can provide free samples of the optical fibre cable for you to check the quanlity.

3. Can you provide OEM service?

     Yes, we can provide OEM service.



I. Our Services:

1. Your inquiry related to our products or prices will be replied in 6 hours

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. Best after-service

4. Supply full accessories related to our main products



Chengdu Cheerdream Technology Co., Ltd. Was established in 2008, specialized in fiber optic area. Our company has established cooperation relationship with more than 20 countries for years.

We are specialized in air blown project for FTTH, including air blown fiber optic cable, microducts and accessories. And we supply plastic fiber optic, EL wire and glass fiber optic for years.

Our company has provided full types of fiber optic products and accessories for our clients from more than 20 countries, such as Thailand, Indonesia, U. S. A., Saudi Arabia, Zambia, Colombia, Philippine, Bulgaria, and so on.

Cheerdream Company has passed ISO9001 Quality Management System Certification. From the raw materials selection to manufacturing, from industrial design to brand management, we always focus on every detail. Our principles are "Quality-cored", "Customer-obligated". We have full desire for the future and unremitting efforts, willing to work with you to create brilliant.
