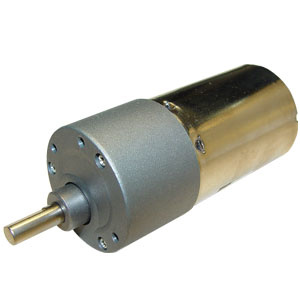

Gear Motor for Automatic Stabilized Voltage Supply

Name: Gear Motor for Automatic Stabilized Voltage Supply
Brand: all-electronics-online.com
SKU: 773966565
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	US $ 8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	36ZYT50-37SPG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	CE,Rosh
Brand:	Longway

Product Description

supr gear motor

motor specification:

Model	Rated Voltage (VDC)	No-load Speed (r/min)	No-load Current (mA)	Rated Speed (r/min)	Rated Torque (mN.m)	Output Power (W)	Pated Current (A)	Stall Torque (mN.m)	Stall Current (A)
36ZYT501242	12	4200	200	3300	12	4	0.9	52	3.5
36ZYT57-1242	12	4200	300	3650	18.5	7	2	138	5
36ZYT50-2442	24	4200	100	3300	12	4	0.6	52	1.6
36ZYT57-2442	24	4200	100	3650	18.5	7	1	138	2.5

gear specification:

Reduction ratio	6	10	18	30	50	75	100	150	200	250	300
Number of grea trains	2	2	3	3	4	4	4	5	5	5	5
(L) Length(L) mm	19	19	26.5	26.5	29	29	29	31.5	31.5	31.5	31.5
No-load speed r/min	700	420	233	140	84	56	42	28	21	17	14
Rated speed r/min	550	330	183	110	66	44	33	24	19	15	13
Rated torque N.m	0.06	0.09	0.16	0.26	0.39	0.59	0.6	0.6	0.6	0.6	0.6
N.m Max.permissible load in a short time	0.3	0.3	0.6	0.6	1.2	1.2	1.2	1.8	1.8	1.8	1.8
Direction of Rotation	CCW	CCW	CW	CW	CCW	CCW	CCW	CW	CW	CW	CW

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
