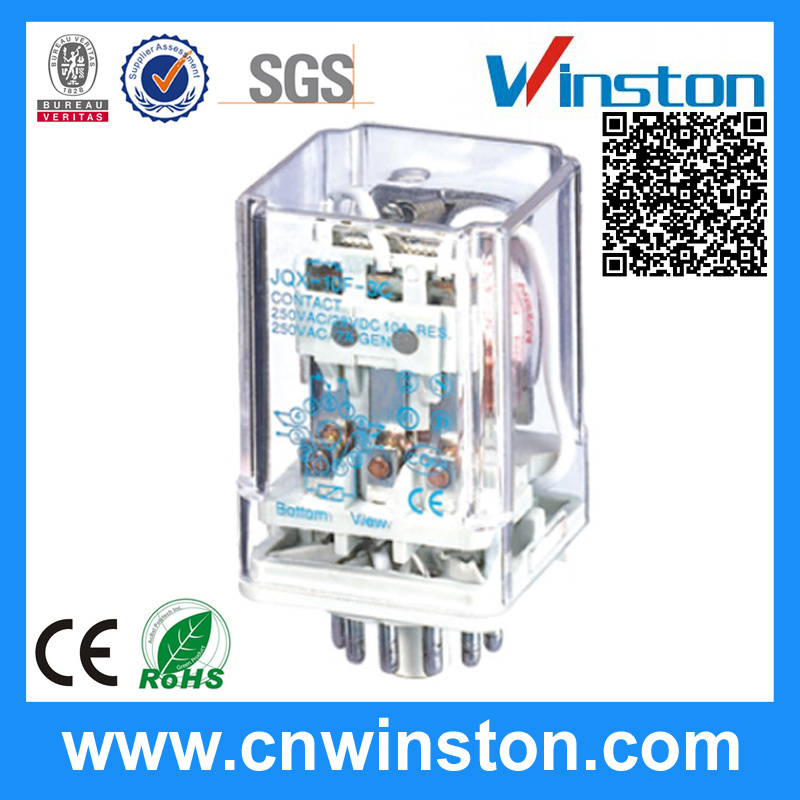

General Purpose Industrial Power Socket Mounted Electromagnetic Relay with CE

General Purpose Industrial Power Socket Mounted Electromagnetic Relay with CE
Price: US $ 3.3-4.3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: JQX-10F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand: Winston
Protect Feature: Sealed
Contact Load: Low Power
Ambient Temperature: -40~-55degree
Weight(G): 85g
Outline Dimension: 34.5*34.5*52(mm)
Humidity: 95% R.H.+40%
Mounting Form: Socket
Construction: Dust Vover
Manufacturer: OEM

Product Description

Product Description


1,Miniature,light,high sensitivity,long life.

2, 2 group, 3 group (10A) contact transfermation are available.

3,Installation method like PCB print layout,Socket type,flange type are avaible.

4,Indicator light and diode are optional.

5.Silver alloy contact, with the features of heat resistance,shock resistance,high flame retardant refractive index, is used to make the casing.

6.Best quality grass and integral punch forming method are adopted,resulting in outstanding conduction.

7.Our company has 7 years exported experiences , we are an enterprise specialized in design , production and sales of electric equipment .

8.Electromagnetic relay  passed,CE&RoHS,CQC,UL.

9.OEM/ODM Service.





 characteristics
 Contact Form 2C 3C
 Contact Resistance 100mΩ (at 1A 24VDC)
 Contact Rating
 2C: 10A 250VAC/30VDC
 3C: (NO)10A 250VAC/30VDC
       (NC)5A 250VAC/30VDC

 Contact material
 AgSnO2, AgCdO
 Max.Switching Current 10A
 Max.Switching voltage 250VAC/30VDC
 Electrical life 100000 ops
 Mechanical Life 10000000 ops
 Initial insulation resistance 500MΩ (at 500VDC)
 Dielectric strength 2500VAC/2000VAC
 Operate Time 25ms
 Release Time 25ms
 Ambient temperature 70°C
 Termination Octal and Undacal Type Plug
 Construction Dust cover
 Unit Weight 85g



PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.
2.  Quality Product: Manufacture company, each of the products is tested and calibrated.
3.  Hospitality: Offer smiling service and your visiting is highly welcomed
4.  Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.
Trade Information

Trade TermsFOB ,CIF ,CFR,EXW,DDP
Payment termsT/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions30% deposit in advance,70% balance before shipping.
Delivery time3-7working days after deposit,2-4 working days for inventory
PackingNeutral carton,Wooden case for large size
ShippingBy sea,by air and by express delivery
Payment conditions30% deposit in advance,70% balance before shipping.
Delivery time3-7working days after deposit,2-4 working days for inventory
PackingNeutral carton,Wooden case for large size
ShippingBy sea,by air and by express delivery

Yueqing Winston Electric Co., Ltd, established in 2010, is a rapid growing enterprise who integrate the production and marketing of Industrial electrical appliance. After seven years' effort and development, now we have become one of the leading electrical manufacturers and suppliers in China. We are always keeping very kind relationship with many strong electrical factories and Insearch institutes in China. We have been enjoying high reputation in electrical market domestically and internationally.

Our factory focus on formulating most kinds of electrical in China. Which include proximity sensor, power supply, motor soft starter, frequency inverter, relay, thermostat, heater, transformer and so on. We are capable of supplying our products in various kinds of packaging according to customers' specific requirements. Now we are producing more than 100 kinds of electrical products which are exported to about 80 countries and regions all over the world. But Winston have never stop going forward, in order to control the cost, and supply competitive price for our customers, in 2012, together with our partners, we build another factory, which producing circuit breaker, distribution box, AC contactor, etc.

Winston have an special professional registration department, who in charge of the domestic registration and oversea registration. We can help our current or potential customers to do registration work. We have a good relation with domestic famous institute who can provide us with authoritative impurity analysis and toxicological report. Quality and Service are always the top concern in Winston. We provide full set of service, including data and samples, which are available on request.

Winston's Mission is: "Focus on the industrial Electrical protection, serve the worldwide Electrical. And our tenet is: "Hold integrity, Forge Ahead, Serve the world". We are always trying our best to offer the best services and the most competitive prices with high quality goods for our customer, It's the way we win our customers and the market.

Given Chance and full space, we would show you all of our advantages and let's grow up together. I am sure we can establish long term and friendly business relationship with your esteemed company because of your trust and our excellent service.

Our advantage:

1. Quality is our culture.

2. We have our own developing and designing team, which ensure our own technological and innoative products for customers.

3. For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.

4. For any customers who send us the samples of some products, we will design and develop better ones based on the samples!

5. For every customer, we will choose the best fit material, and also innovative material for their products!

6. We can according to any customers' design to do sample of them!

7. We are manufacturer, factory, so we have the ability of mass production!

8.24*7 service, professional sales group.

Technical Support:

Most of our Winston products adopt Germany advanced technology, and the producing machine are all equipped with advance system, all our workers are experienced and skilled!

Besides, for some products material are all use imported parts.

So the quality and safety are guaranteed!

After sale service:

Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.

Winston has a complete supply system for the parts, which can guarantee the company's demand of product accessories. We have stocked the common parts in the major cooperation point world widely, which can shorten the supply time largely. So if have any question, just contact us any time at your convenience!

Transportation service:

We can guarantee the fast and safe delivery to the customers' hand.
