Genreral Purpose AGM Battery

Name: Genreral Purpose AGM Battery
Brand: all-electronics-online.com
SKU: 835288615
Availability: InStock
Rating: 4.7 (119 reviews)

Price:	US $ 10-20/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	AGM-001
Weight:	2.66kg
Capacity:	800ah
Terminal:	17
Usage:	Electric Bicycle/Tricycle
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Type:	Lead Carbon

Product Description

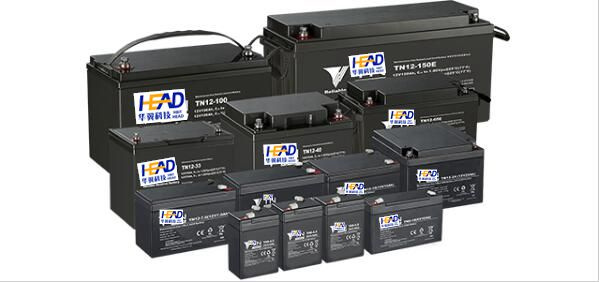

Genreral Purpose AGM Battery

Industry Reserve Battery- TN Series (General Purpose Type)The TN Series is general purpose vlave regulated lead acid (VRLA) AGM battery which combine TN power's industry scale and advanced equipment.

Product Details

Industry Reserve Battery (General Purpose Type)
The TN Series is general purpose vlave regulated lead acid (VRLA) AGM battery which combine TN power's industry scale and advanced equipment together to provide high reliability product and the most competitive price. This range offers 5~8 years design life with very good cycling capability, it is highly suited to cyclic or standby application.

Construction:
Positive plate - Patent rare earth alloy grid with special paste for corrosion resistance
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for high pressure cell design, The electrolyte is completely absorbed into the separator
Electrolyte - Dilute high purity sulphuric acid
Battery container and cover - ABS UL94-HB (Flame-resistant ABS UL94-V0 is optional)

Features:
Cycle or standby (or float) application.
Long life, low self-discharge rate and high reliability.
It has safety, low resistance so recharge is easy and energy output is more remarkable.
Deep discharge recoverability.
Strictly manufacture process control and high consistency .
ISO9001, ISO14001 certified.
UL, IEC60896-21&22, TLC, CE and European council Directive 2006/66/EC and its amendment (2008/12/EC) certification.

Application Standby Use:

Uninterrupted Power Supply (UPS)
Communications and electric equipment
Emergency lighting equipment
Fire alarm and security systems
Robots, control equipment, and other factory automation equipment
Emergency power supply (EPS) in power generation plants and substations

Cycle Use:
Portable VTR/TV, radio and so on
Power tools, lawn mowers, vacuum cleaners
Cameras and photographic equipment
Portable measuring equipment
Portable telephone sets
Various power toys and hobby equipment
Lighting equipment

TN Series Specification

Model	Nominal Voltage (V)	Nominal Capacity C10 (AH) 1.80Vpc/25°C	Nominal Capacity C20 (AH) 1.80Vpc/25°C	Dimension (mm)				Weight (kg)	Dimension (Inch)				Weight (lbs)	Terminal
Model	Nominal Voltage (V)	Nominal Capacity C10 (AH) 1.80Vpc/25°C	Nominal Capacity C20 (AH) 1.80Vpc/25°C	L	W	H	TH	Weight (kg)	L	W	H	TH	Weight (lbs)	Terminal
TN6-1.2	6	1.1	1.2	97	24	51.5	57.5	0.29	3.82	0.94	2.03	2.26	0.64	T1
TN6-2.8	6	2.6	2.8	66	33	97	103	0.57	2.60	1.30	3.82	4.06	1.26	T1
TN6-3.0B	6	2.8	3.0	70	47	100	106	0.64	2.76	1.85	3.94	4.17	1.41	T1/T2
TN6-3.2	6	3.0	3.2	134	34	60	66	0.67	5.28	1.34	2.36	2.60	1.48	T1
TN6-3.2B	6	3.0	3.2	70	47	100	106	0.68	5.30	1.30	2.40	2.60	1.50	T1
TN6-4.0	6	3.7	4.0	70	47	100	106	0.72	2.76	1.85	3.94	4.17	1.59	T1/T2
TN6-4.5	6	4.2	4.5	70	47	100	106	0.75	2.76	1.85	3.94	4.17	1.65	T1/T2
TN6-5.4	6	5.0	5.4	70	47	100	106	0.80	2.76	1.85	3.94	4.17	1.76	T1/T2
TN6-6.0	6	5.6	6.0	70	47	100	106	0.90	2.76	1.85	3.94	4.17	1.98	T1/T2
TN6-7.0	6	6.5	7.0	151	35	93	99	1.10	5.94	1.38	3.66	3.90	2.43	T1/T2
TN6-7.2	6	6.7	7.2	151	34	94	100	1.20	5.94	1.34	3.70	3.94	2.65	T1/T2
TN6-7.5	6	7.0	7.5	151	34	94	100	1.26	5.94	1.34	3.70	3.94	2.78	T1/T2
TN6-7.8	6	7.3	7.8	151	34	94	100	1.28	5.94	1.34	3.70	3.94	2.82	T1/T2
TN6-8.5	6	7.9	8.5	151	34	94	100	1.20	5.94	1.34	3.70	3.94	2.65	T1/T2
TN6-10	6	9.3	10.0	151	51	94	100	1.62	5.94	2.01	3.70	3.94	3.57	T1/T2
TN6-12	6	11.2	12.0	151	51	94	100	1.80	5.94	2.01	3.70	3.94	3.97	T1/T2
TN6-14	6	13.0	14.0	151	51	94	100	2.05	5.94	2.01	3.70	3.94	4.52	T1/T2
TN12-1.2	12	1.1	1.2	97	43	52	58	0.57	3.82	1.69	2.05	2.28	1.26	T1
TN12-1.9	12	1.8	1.9	178	35	60	66	0.88	7.01	1.38	2.36	2.60	1.94	T1
TN12-2.3	12	2.1	2.3	178	35	60	66	0.97	7.01	1.38	2.36	2.60	2.14	T1
TN12-2.8	12	2.6	2.8	132	33	98	104	1.18	5.20	1.30	3.86	4.09	2.60	T1
TN12-3.2	12	3.0	3.2	134	67	60.5	66.5	1.35	5.28	2.64	2.38	2.62	2.98	T1
TN12-4.0B	12	3.7	4.0	90	70	101	107	1.45	3.54	2.76	3.98	4.21	3.20	T1/T2
TN12-4.5	12	4.2	4.5	90	70	101	107	1.48	3.54	2.76	3.98	4.21	3.26	T1/T2
TN12-5.0B	12	4.7	5.0	151	53	93	99	1.75	5.94	2.09	3.66	3.90	3.86	T1/T2
TN12-5.0	12	4.7	5.0	151	65	93.5	99	1.85	5.94	2.56	3.68	3.90	4.08	T1/T2
TN12-5.4	12	5.0	5.4	90	70	101	107	1.65	3.54	2.76	3.98	4.21	3.64	T1/T2
TN12-6.0	12	5.5	5.8	90	70	101	107	1.88	3.54	2.76	3.98	4.21	4.14	T1/T2
TN12-6.0B	12	4.2	5.0	151	65.5	93.5	99.5	1.90	5.94	2.58	3.68	3.92	4.19	T1/T2
TN12-6.5	12	6.1	6.5	151	65.5	93.5	99.5	2.06	5.94	2.58	3.68	3.92	4.54	T1/T2
TN12-7.0	12	6.5	7.0	151	65.5	93.5	99.5	2.18	5.94	2.58	3.68	3.92	4.81	T1/T2
TN12-7.2	12	6.7	7.2	151	65	93.5	99	2.35	5.94	2.56	3.68	3.90	5.18	T1/T2
TN12-7.5	12	7.0	7.5	151	65	93.5	99	2.35	5.94	2.56	3.68	3.90	5.18	T1/T2
TN12-8.5	12	7.9	8.5	151	65	93.5	99	2.45	5.94	2.56	3.68	3.90	5.40	T1/T2
TN12-9.0	12	8.3	9.0	151	65.5	93.5	99.5	2.66	5.94	2.58	3.68	3.92	5.86	T1/T2
TN12-10	12	9	10	151	99.5	95.5	101.5	3.25	5.94	3.92	3.76	4.00	7.16	T1/T2
TN12-12	12	11	12	151	99.5	95.5	101.5	3.60	5.94	3.92	3.76	4.00	7.94	T1/T2
TN12-14	12	13	14	151	98	95	101	4.05	5.94	3.86	3.74	3.98	8.93	T1/T2
TN12-15	12	14	15	182	76	170	170	5.00	7.17	2.99	6.69	6.69	11.02	I10
TN12-17	12	16	17	182	77	170	170	5.00	7.17	2.99	6.69	6.69	12.57	I10
TN12-18	12	17	18	181.5	77	167.5	167.5	5.40	7.15	3.03	6.59	6.59	11.90	L1
TN12-20	12	19	20	182	77	170	170	5.70	7.15	3.03	6.59	6.59	12.74	I10
TN12-24A	12	22	24	164	125	175	175	8.45	6.46	4.92	6.89	6.89	18.63	I1
TN12-24B	12	22	24	166	175	125	125	7.20	6.54	6.89	4.92	4.92	15.87	L1
TN12-26	12	24	26	166	175	125	125	7.80	6.54	6.89	4.92	4.92	17.20	I1
TN12-28	12	26	28	166	175	125	125	8.40	6.54	6.89	4.92	4.92	18.52	L1
TN12-30A	12	28	30	166	175	125	125	8.60	6.54	6.89	4.92	4.92	18.96	L1
TN12-30B	12	28	30	195	130	164	178	9.70	7.68	5.12	6.46	7.01	21.38	B1
TN12-33	12	34	35	195	130	157.5	162	10.00	7.68	5.12	6.20	6.34	22.05	I1
TN12-35	12	33	35	195	130	164	178	11.20	7.68	5.12	6.46	7.01	24.69	B1

Model	Nominal Voltage (V)	Nominal Capacity C10 (AH) 1.80Vpc/25°C	Nominal Capacity C20 (AH) 1.80Vpc/25°C	Dimension (mm)				Weight (kg)	Dimension (Inch)				Weight (lbs)	Terminal
Model	Nominal Voltage (V)	Nominal Capacity C10 (AH) 1.80Vpc/25°C	Nominal Capacity C20 (AH) 1.80Vpc/25°C	L	W	H	TH	Weight (kg)	L	W	H	TH	Weight (lbs)	Terminal
TN6-60	6	60	62	185	112	205	205	9.10	7.28	4.41	8.07	8.07	20.06	T2
TN6-150	6	150	156	260	180	247	253	21.00	10.24	7.09	9.72	9.96	46.30	I5
TN6-180	6	180	190	306	168	222	228	27.00	12.05	6.61	8.74	8.98	59.52	I5
TN6-200	6	200	206	306	168	222	228	28.00	12.05	6.61	8.74	8.98	61.73	I5
TN6-200B	6	200	206	322	178	228	234	29.70	12.68	7.01	8.98	9.21	65.48	I5
TN12-38	12	38	39	198.5	166	169.5	169.5	12.10	7.81	6.54	6.67	6.67	26.68	I3
TN12-40	12	40	42	198.5	166	170	170	12.60	7.81	6.54	6.69	6.69	27.78	I3
TN12-45	12	45	46	198.5	166	169.5	169.5	14.20	7.81	6.54	6.67	6.67	31.31	I3
TN12-50	12	50	52	257	132	200	200	15.70	10.12	5.20	7.87	7.87	34.61	I3
TN12-55	12	55	57	229	138.5	211	216	16.50	9.02	5.45	8.31	8.50	36.38	I3
TN12-60	12	60	62	260	168	208	214	18.40	10.24	6.61	8.19	8.43	40.56	I3
TN12-65	12	65	68	350	167	180	180	21.00	13.78	6.57	7.09	7.09	46.30	I3
TN12-65E	12	63	65	350	167	180	180	20.20	13.78	6.57	7.09	7.09	44.53	I3
TN12-70	12	70	73	348	167	178	178	21.60	13.70	6.57	7.01	7.01	47.62	I3
TN12-75	12	75	78	260	168	211	213.5	22.30	10.24	6.61	8.31	8.41	49.16	I3
TN12-80	12	80	83	260	168	211	213.5	23.80	10.24	6.61	8.31	8.41	52.47	I3
TN12-80Z	12	80	85	407	177	225	225	28.30	16.02	6.97	8.86	8.86	62.39	I7
TN12-90	12	90	94	306	168	208	211	25.80	12.05	6.61	8.19	8.31	56.88	I7
TN12-95Z	12	95	100	408	177	224	224	30.50	16.06	6.97	8.82	8.82	67.24	I7
TN12-100A	12	100	104	306	168	208	230	30.60	12.05	6.61	8.19	9.06	67.46	I7
TN12-100B	12	100	104	330	172	214	221.5	29.80	12.99	6.77	8.43	8.72	65.70	I7
TN12-100E	12	93	100	330	172	214	221.5	29.50	12.99	6.77	8.43	8.72	65.04	I7
TN12-100C	12	100	104	407	177	225	225	31.90	16.02	6.97	8.86	8.86	70.33	I7
TN12-120	12	120	125	407	177	225	225	34.00	16.02	6.97	8.86	8.86	74.96	I7
TN12-135	12	135	140	345	172	274	280	41.20	13.58	6.77	10.79	11.02	90.83	I7
TN12-150	12	150	156	480	170	240	240	42.20	18.90	6.69	9.45	9.45	93.03	I7
TN12-180B	12	180	187	532	207	215	220	57.00	20.94	8.15	8.46	8.66	126.02	I7
TN12-200	12	200	208	520	239	220	225	59.10	20.47	9.41	8.66	8.86	130.29	I7
TN12-230	12	230	240	522	238	218	221	65.30	20.55	9.37	8.58	8.70	143.96	I7
TN12-250	12	250	260	522	268	220	226	72.50	20.55	10.55	8.66	8.90	159.83	I7

Model	Nominal Voltage (V)	Nominal Capacity C10 (AH) 1.80Vpc/25°C	Nominal Capacity C20 (AH) 1.80Vpc/25°C	Dimension (mm)				Weight (kg)	Dimension (Inch)				Weight (lbs)	Terminal
Model	Nominal Voltage (V)	Nominal Capacity C10 (AH) 1.80Vpc/25°C	Nominal Capacity C20 (AH) 1.80Vpc/25°C	L	W	H	TH	Weight (kg)	L	W	H	TH	Weight (lbs)	Terminal
TN2-100	2	100	105	171	76	213	220	6.20	6.73	2.99	8.39	8.66	13.67	I7
TN2-150	2	150	158	171	102	206	222	8.30	6.73	4.02	8.11	8.74	18.30	I7
TN2-200	2	200	210	171	106	330	342	12.90	6.73	4.17	12.99	13.46	28.44	I7
TN2-250	2	250	262	171	151	330	342	14.50	6.73	5.94	12.99	13.46	31.97	I7
TN2-250B	2	250	262	171	106	330	342	13.50	6.73	4.17	12.99	13.46	29.76	I7
TN2-300	2	300	316	171	151	330	342	18.00	6.73	5.94	12.99	13.46	39.68	I7
TN2-350	2	350	368	171	151	330	342	22.00	6.73	5.94	12.99	13.46	48.50	I7
TN2-400	2	400	420	196	171	330	342	25.00	7.72	6.73	12.99	13.46	55.12	I7
TN2-500	2	500	526	241	171	330	342	30.00	9.49	6.73	12.99	13.46	66.14	I7
TN2-600	2	600	630	285	171	330	342	34.90	11.22	6.73	12.99	13.46	76.94	I7
TN2-800	2	800	840	383	171	330	342	47.70	15.08	6.73	12.99	13.46	105.16	I7
TN2-1000	2	1000	1050	471	171	330	342	56.80	18.54	6.73	12.99	13.46	125.22	I7
TN2-1200	2	1200	1260	471	171	330	342	66.20	18.54	6.73	12.99	13.46	145.94	I7
TN2-1500	2	1500	1576	355	338	330	342	87.00	13.98	13.31	12.99	13.46	191.80	I7
TN2-1500	2	1500	1576	400	350	343	381	93.00	15.75	13.78	13.50	15.00	205.00	I7
TN2-2000	2	2000	2100	490	350	339	349	121.00	19.29	13.78	13.35	13.74	266.76	I7
TN2-2500	2	2500	2626	490	350	339	349	133.50	19.29	13.78	13.35	13.74	294.31	I7
TN2-3000	2	3000	3150	709	350	337	347	181	27.91	13.78	13.27	13.66	399.03	I7
