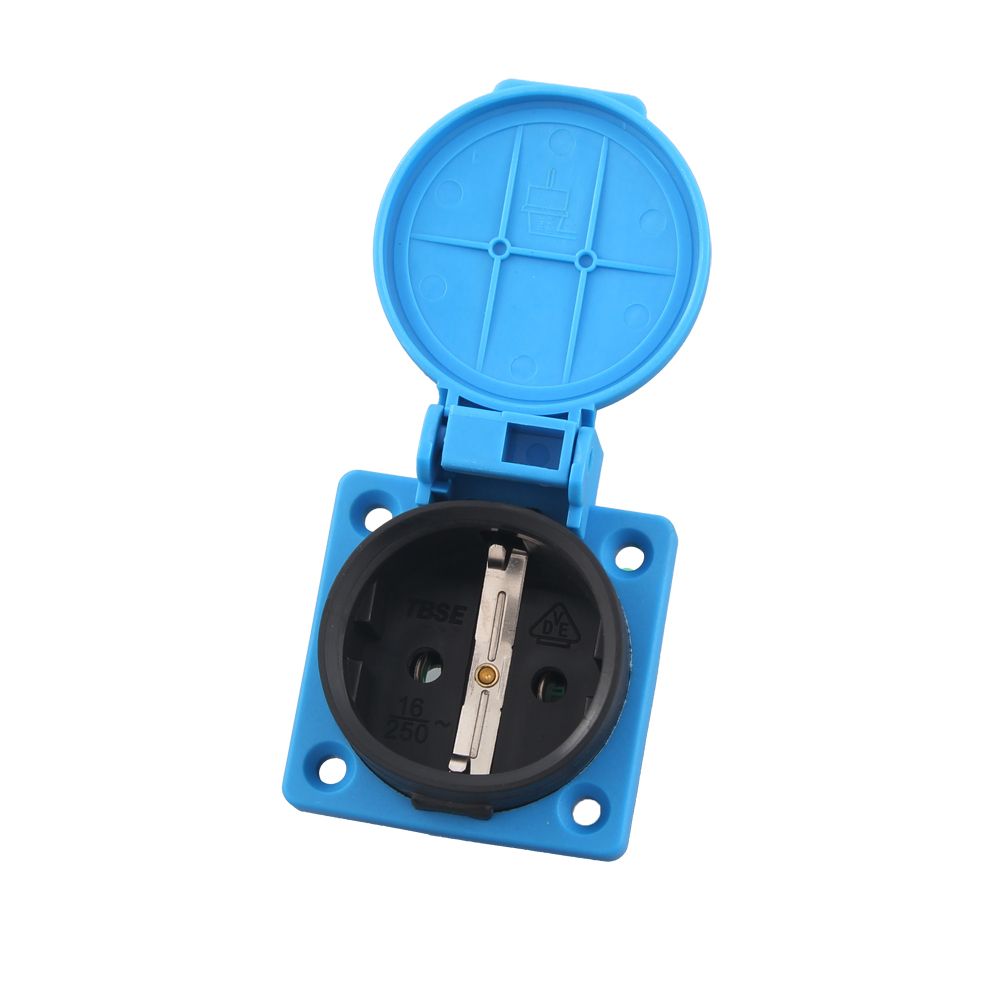

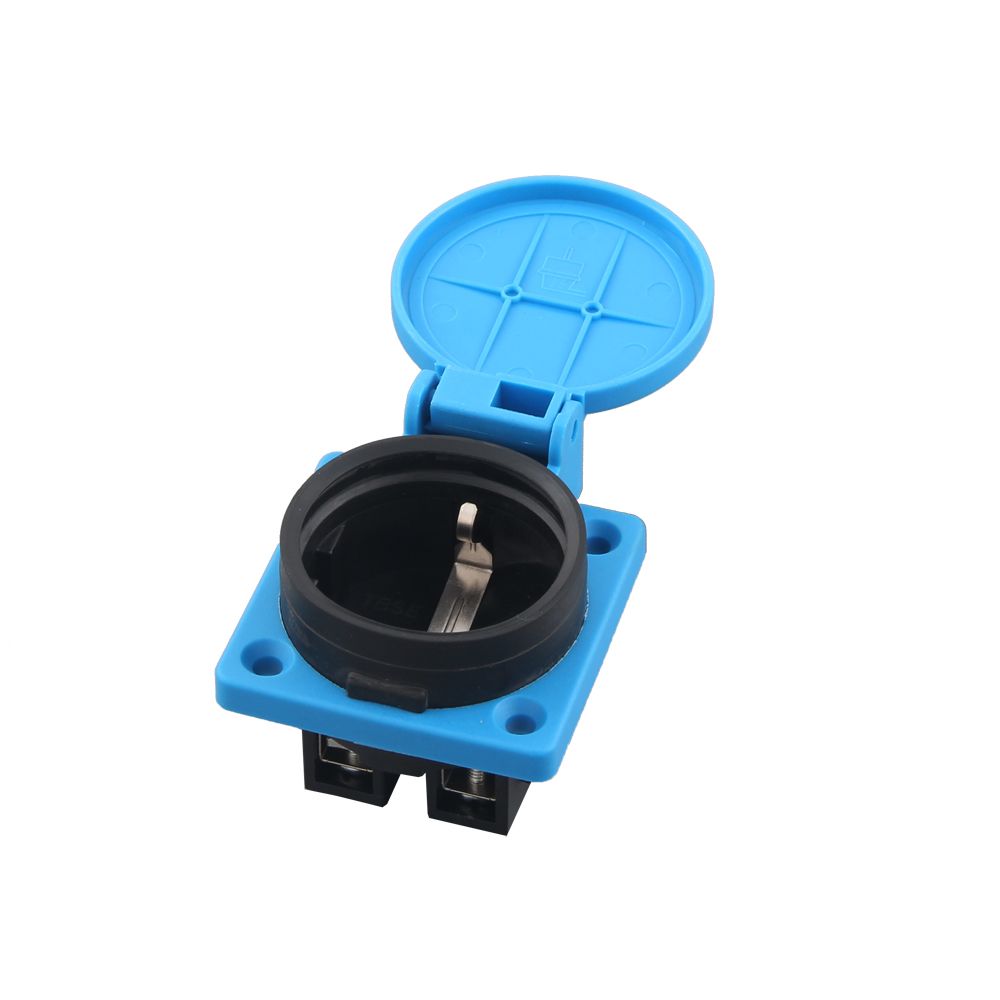

German Waterproof Socket 050301

Name: German Waterproof Socket 050301
Brand: all-electronics-online.com
SKU: 718616942
Availability: InStock
Rating: 4.6 (72 reviews)

Price:	US $ 0.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	050301
Grounding:	Standard Grounding
Type:	Without Switch
Application:	Hospital
Certification:	VDE TUV
Customized:	Non-Customized
Condition:	New
Hole-Digit:	2
IP Rating:	IP54
Color:	Blue

Product Description

Product Model 050301
Certification: VDE,RoHS
standard: VDE0620-1/02.10
Rated Current / Voltage : 16A/250V
Poles: 3 PIN, 2P+E
Insulation Resistance: ≥5MΩ
Electric strength:AC 2000V 50HZ
Waterproof protection: IP54
Main material:PA66
Color: RAL9006black / blue or customized
With Protection gates
Adaptation Model: 100101

Application
They are widely used in Ironmaking and Steelmaking,Generator industry, Petroleum Chemical Industry, Electricity, Electronics, railway, Construction Site, Airports, mine, post-mining land, water treatment plant and port, Pier,market, hotel.
Features This product is exquisitely crafted by using Nylon6 or Polypropylene,which are both featured in waterproof, dust proof, as well as corrosion proof including the abrasion proof In addition, this product is also very durable with long lasting lifespan and superior stability.

Testing and Quality Control
Our product have pass lots type of test, whatever in TEMPERATURE-RISE TEST, CTI/PTI TEST, GLOW WIRE TEST, INSPERTION AND EXTRACTION FORCE TEST, SAND AND UST TEST and the other test, our product performance are over the standards and other brands' product

Product name: German socket, schuko socket, vde socket, European Plug Socket, Female Schuko Plug Socket, euro Socket, triple plug socket, triple socket, schuko outlet, German outlet, German receptacle, German receptacle, electric socket, DISTRIBUTION BOX socket.

Certification
tuv,vde, RoHs

Shenchuang Electrical is an electrical company of invention, production and integration. We concentrate on manufacturing solar panel fairy lights, solar panel lamps and electric starter lock switch, high-current switching, American NEMA socket, plug series, German socket, , plug series, South Africa socket, plug series etc...

Shenchuang Electrical has been dedicating itself to the research and development since its inception. It has strong technical strength and complete tesing equipment. Many products have passed international safety certification organizations such as the famous U. S. "UL", Canada "cUL", German "VDE" "TUV", Australia"SAA" and the ISO90001 quality system certification. It is also widely used in the generator industry, machine tool equipments, Electric vehicle charging piles, factory production lines, construction sites, airport and docks etc. With reasonable price, superior quality and excellent services won the praise and trust of new and old customers. The products have exported to Europe, America and Southeast Asia and other regions. We also support production to Honda, YAMAHA, Generac, Cunmmins, TTI, CPI, BS, ETQ

And other multinational companies. Shenchuang Electrical has become a leader of Chinese generators supporting industry!

Our company adhere to the guidelines of "quality for survival, technology for development. ". We believe that we can achieve new heights with sincerity, ethics technology, creation, mangement.
