Shenzhen Getian Opto-Electronics Co., Ltd. >> Getain High Power White Diodes with Star PCB for Outdoor Lighting

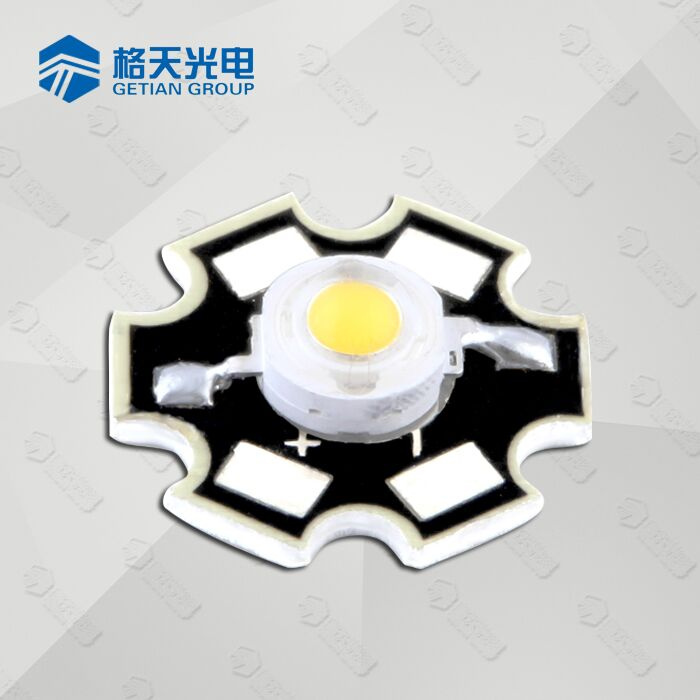

Getain High Power White Diodes with Star PCB for Outdoor Lighting

Getain High Power White Diodes with Star PCB for Outdoor Lighting
Price: US $ 0.097-0.22/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: GT-P03
Voltage: 2.8-3.4
Current: 350mA
CRI: >70;>80
Viewing Angle: 120°

Product Description

High Power 1-3W White LED with Star PCB

Features:

* First-Choice for Outdoor Lighting.
* High Lumen Output & Low Brightness Decay
* High stability & Great CCT Unity
* Low thermal resistance: 12ºC/W
* LM-80; RoHS compliant
* L70 Calculated 58000H

Specification:

Power1WCCT5000-5500K
Voltage2.8-3.4VCurrent350mA
CRI>70Luminous Flux140-170lm
Viewing Angle120°Junction Temperature115ºC
Thermal Resistance12ºC/WLM-80Yes

Variations Available:

Power1-3W
CCT2600-2900K;2900-3200K;4000-4500K; 5000-5500K; 5500-6000K;600-6500K;7000-9000K; 9000-15000K
CRI>70; >80;>90
Luminous Flux110-120lm; 120-130lm; 130-140lm; 140-150lm; 150-160lm; 160-180lm
Viewing Angel50°; 60°; 90°;120°

Product Dimension:


Company Information

Shenzhen Getian, established in 2005, is a professional and innovative integrated led manufacturer specializing in high power led & COB packaging, LED drivers, industrial lighting and molding.


Product Range:
3-400W MSA COB Series
10-400W Copper COB Series
3535 RGB & RGBW Series
Color LEDs 280-850nm Series
Flip Chip LEDs 60-300W
SMD LED Series
LED Drivers 8-150W
Industrial Lights (High Bay/Flood Light/Street Light)
Our Service:
PCB design & Reflow soldering service
COB/LED/Drivers customization
Mold development (Plastic injection & Die casting)
Representatives in the UK, Korea and Czech.
* ISO9001-2008, SGS, TUV, BV, CNAS accredited laboratory & Optical Lab.

More detailed information please feel free to contact us.
Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
