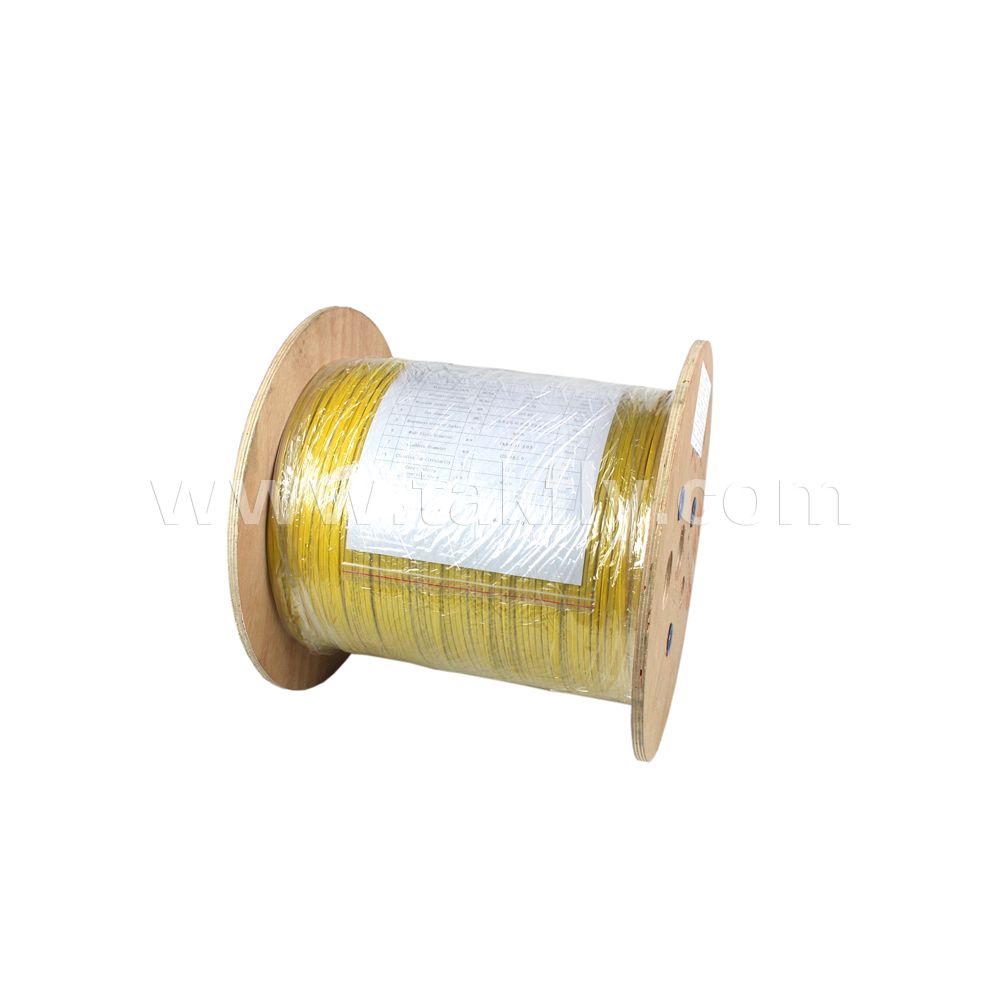

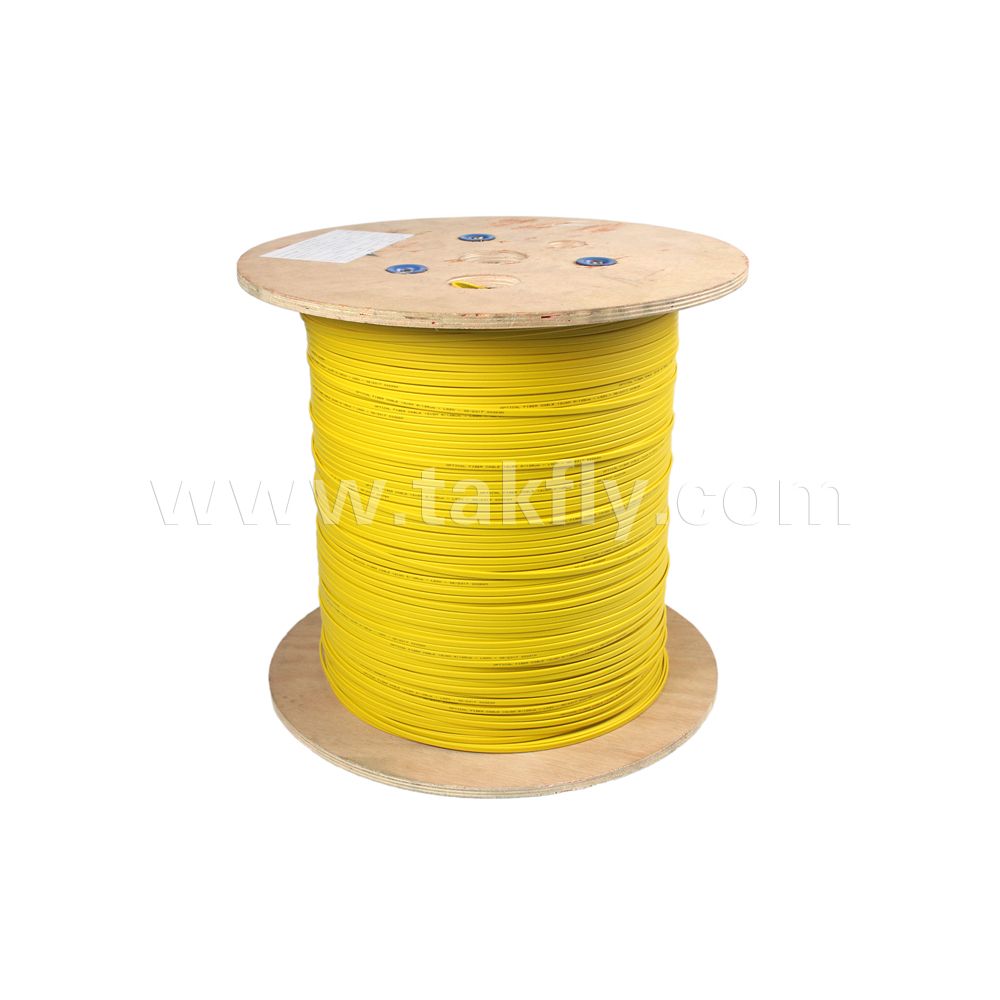

Gjdfjv Flat Cable 12 Core Indoor Single Mode Fiber Optic Cable

Name: Gjdfjv Flat Cable 12 Core Indoor Single Mode Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 815214755
Availability: InStock
Rating: 4.6 (34 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	optic fiber cable
Item Name:	Single Mode Optic Fiber Cable
Keywords:	Flat Cable, Fiber Optic Cable, Optic Fiber
Mode Type:	Single Mode
Core Qty:	2 Core
Loss:	0.35 dB
Customized:	Available
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC

Product Description

Gjdfjv Flat Cable 12 core Indoor Single Mode Fiber Optic Cable

Description
GJDFJV flat fiber ribbon cable uses as optical commucation medium, the fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a flat PVC or LSZH jacket.

Standards:
Comply with standard 1258.4-2005, ICEA-596, GR-409, IEC 60794-2-30/31,etc; and meet the requirements of UL approval for OFNR.

Application
Ribbon optical fiber jumper and pigtail
Indoor cable distribution for any purpose
Interconnect between optical fiber cable distribution equipment

Features
Aramid yarn as strength member make cable have excellent tensile strength
Compact structure with high fiber density, good performance of flexibility and crush resistance
The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to enviroment etc.
All dielectric structure protect it from electromagnetic influence
Scientific design with serious processing art

Cable code	Cable Size mm	Cable weight Kg/km	Tensilse Strength Long/Short term N	Crush Resistance Long/Short term N	Bedning Radius Dynamic/Static mm	Jacket Material
GJDFJV-04	(3.7±0.4)×(2.5±0.2)	6.0	80/150	200/1000	60/30	PVC/LSZH
GJDFJV-06	(4.2±0.4)×(2.5±0.2)	6.5	80/150	200/1000	60/30	PVC/LSZH
GJDFJV-08	(4.7±0.4)×(2.5±0.2)	8.4	80/150	200/1000	60/30	PVC/LSZH
GJDFJV-12	(4.8±0.4)×(2.5±0.2)	8	80/150	200/1000	60/30	PVC/LSZ

Any question about Gjdfjv Flat Cable 12 core Indoor Single Mode Fiber Optic Cable,please leave me an inquiry or contact me directly.
