Gjfjv-1 Core Indoor Optical Fiber Cable
| Price: |
US $ 40-200Kilometer |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10Kilometer |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
1 Core Optical Fiber Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Sheath Material: |
PE |
| Cable Weight (Kg/Km): |
2.0~6.3 |
| Operating Temperature: |
-20~+60 |
| Cable Size(Mm): |
1.6~3.0 |
| Application: |
Communication |
| Certification: |
CE |
| Type: |
Single |
| Brand: |
Daytai |
Product Description
Description

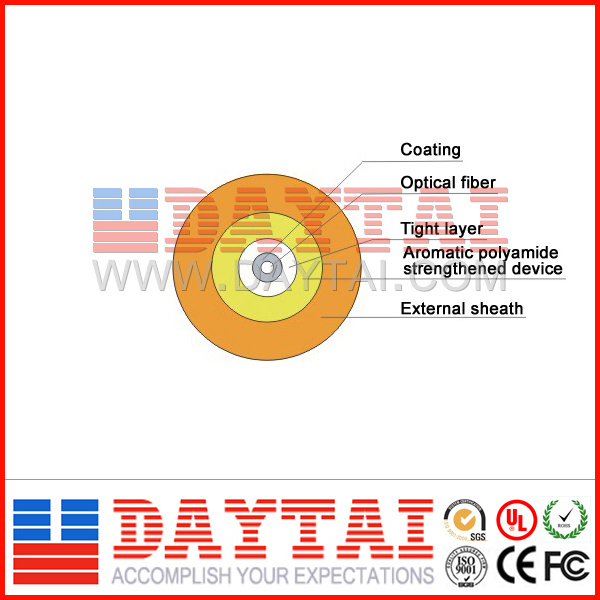

1 Core indoor Optical Fiber Cable, GJFJV-1 Core, The simplex tight-buffered fiber optical cable is cabled with a PVC sheath or LSZH material after the sigle-mode or multi-mode single-core tight-buffered optical fiber claded with a high-strength aramid yarn layer.
Application
Ideal for inter connect applications for instruments and communication equipments.
Used in indoor cabling.
Feature
The HD aramid strengthened device ensures the non-stretching strain of the optical fiber and the long-term stable transmission properties of the optical fiber. The product is lightweight, flame-retardant, flexible, easy to be peeled with smaller outer diameter and lower attenuation. It also can be used for the direct connection between tight-buffered optical cable without reducer union and tail optical cable, which is easily to be operated and maintained.
| Number of cores | Cable Size (mm) | Tensile Strength (N) | Crush Resistance (N/100mm) | Bending Radius (mm) | Cable Weight (Kg/Km) |
| Short Term | Long Term | Short Term | Long Term | Dynamic | Static |
| 1 | 3.0 | 120 | 80 | 500 | 100 | 50 | 30 | 6.7 |
| 1 | 2.8 | 120 | 80 | 500 | 100 | 50 | 30 | 6.3 |
| 1 | 2.5 | 120 | 80 | 500 | 100 | 50 | 30 | 5.1 |
| 1 | 2.4 | 120 | 80 | 500 | 100 | 50 | 30 | 4.8 |
| 1 | 2.4 | 100 | 65 | 500 | 100 | 50 | 30 | 4.7 |
| 1 | 2.4 | 80 | 50 | 500 | 100 | 50 | 30 | 4.6 |
| 1 | 2.0 | 100 | 65 | 500 | 100 | 50 | 30 | 2.9 |
| 1 | 2.0 | 80 | 50 | 500 | 100 | 50 | 30 | 3.1 |
| 1 | 2.0 | 60 | 40 | 500 | 100 | 50 | 30 | 3.0 |
| 1 | 1.8 | 60 | 40 | 500 | 100 | 50 | 30 | 2.3 |
| 1 | 1.6 | 60 | 40 | 500 | 100 | 50 | 30 | 2.0 |
| Operating Temperature | -20~+60 |
| Flame Class | Accord with the instruction of UL: OFNP, OFN-FT6, OFNR, OFN-FT4. |
| Remark | Other requirements can be provide & Cable is accord with the instruction of EU ROHS.
|
