Gjs 03A Optic Cable Joints Enclosure

Gjs 03A Optic Cable Joints Enclosure
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 200/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile
Prod Model: GJS 03 A, GJS 03B

Product Description

GJS 03A Fiber Optic Splice Closure / Fiber Joints Enclosure --- Modefied





Function:
Used to protect the optic fiber joints. Apply for aerial, buried, handhole, manhole.

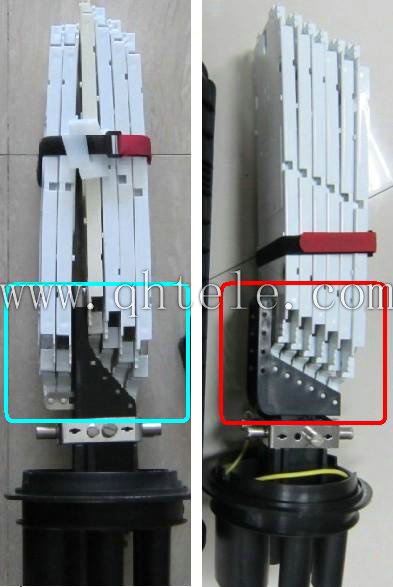

Campare with the old model, the left one is the old base which hold 4 trays front, and 2 trays in the back.

IP: 68
Max Capacity: 144c
Tray Capacity: 24c
Entry Ports: 4 round ports + 1 oval port
Standard: TLC, CE, ISO 9001: 2000, ISO 14000, RoHS.



Features:

1. The material of closure body: Ageing resistance & ultraviolet radiation resistance
2. Base-to-dome seals on closure are mechanical and heat-shrinkable for ease of installation and reentry.
3. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular).
And the product can be used in any environment (aerial, buried, handhole, manhole)and in Many applications(tap-off, expressed, branch, and repair)
4. No special tools are needed to open the closure, and it can be opened and used repeatedly.

Technical Parameter:

1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss

Relating Producing Lines:


Materials for dome and base:
 		   PP alloy

 Material for the tray:
 		   ABS

 Size:
 		  540*150*180mm
 Max capacity:
 		  144c
 Capacity of each tray:
 		  24C

 4 round ports with dia. of
 		  <Φ20mm

 1 oval port with size of
 		  Φ40mm~ Φ60mm

 The main models include:

 GJS03A  (single fiber min: max: 24*6=144 cores)

Chengdu Qianhong Communication Co., Ltd. founded in 1995, is the biggest MANUFATORY in western China. It's registered capital is RMB 102 millions.

Qianhong Comm. specialized in researching, developing, and marketing the connection equipment for communication networks, and heat shrinkable sleeves for gas & oil anti-corrosion pipelines.

Products have been sold to more than 50 countries already. Acquired TLC certificate, ISO9001: 2000, ISO14000, RoHS, SGS and other relating certificates.

Main Products
Heat-shrinkable Splice Closure(XAGA) -- adopt Germany Henkel Rubber as raw material.
Fiber Optical Splice Closure (FOSC) --samiliar with the model of TYCO FOSC 400 and FIST
Fiber Optic Terminal Box
Fiber Optic Splice Cabinets
Fiber optic Distribution Boxes
ODF
FTTX Series Products.
Indoor/ outdoor cable (G657)
Antenna & Jumper protective system
