Gjs 03b Fiber Optic Joint Enclosure

Gjs 03b Fiber Optic Joint Enclosure
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 200/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile
Prod Model: GJS 03 B fiber optic enclosure

Product Description

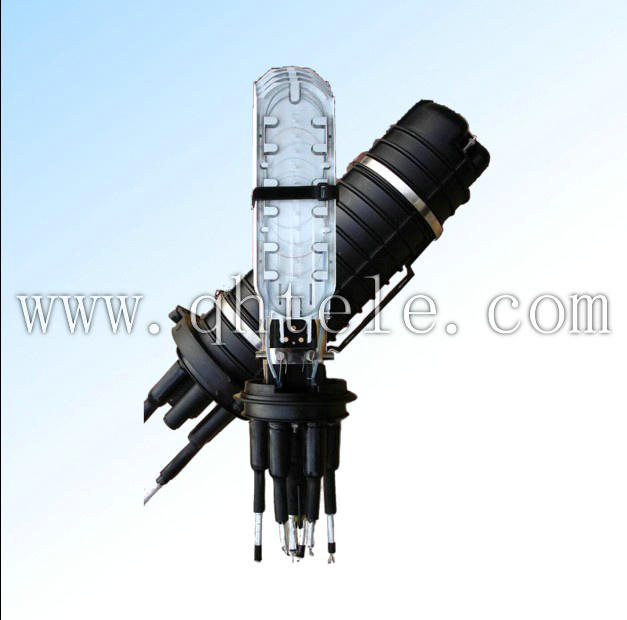

GJS03B  Fiber Optic Splice Closure --   ( RoHS)




Application :
It can be installed in aerial locations, ducted applications, direct buried, manholes.


Features :

Fiber optic splice closures are designed for splicing fibers on the two sides of splice trays.
The optic fiber splice closures are widely apply for the connecting of optical cable.


1. Single-ended thermoplastic closure
2. Fabricated by mixing the imported material and other chemical assistant agent(ageing resistance & ultraviolet radiation resistance), increase of service life
3. Base-to-dome seals on closure are mechanical and heat-shrinkable for ease of installation and reentry. No other sealing adhesive tape is needed
4. Base and dome sealed with clamp and O-ring system
5. The splice trays are hinged for access to any splice without disturbing others trays
6. The inner parts and fixing parts are made of stainless steel
7. Closure with a earthing device protect it from damage by lightning
8. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)
9. No special tools are needed to open the closure, and it can be opened and used repeatedly.

Relating Producing Line:



Materials for dome and base:
 		   PP alloy

 Material for the tray:
 		   ABS

 Size:
 		 540*180 mm
 Max capacity:
 		  144 C
 Capacity of each tray:
 		  24 C

 4 round ports with dia. of
 		  <Φ 20mm

 1 oval port with size of
 		  Φ40mm~ Φ60mm

 The main models include:
                                          GJS03B -JF96 single fiber min: 24 cores/max: 96 cores
                                          GJS03B -JF144 single fiber max: 144 cores
Features:

1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss

Chengdu Qianhong Communication Co., Ltd. founded in 1995, is the biggest MANUFATORY in western China. It's registered capital is RMB 102 millions.

Qianhong Comm. specialized in researching, developing, and marketing the connection equipment for communication networks, and heat shrinkable sleeves for gas & oil anti-corrosion pipelines.

Products have been sold to more than 50 countries already. Acquired TLC certificate, ISO9001: 2000, ISO14000, RoHS, SGS and other relating certificates.

Main Products
Heat-shrinkable Splice Closure(XAGA) -- adopt Germany Henkel Rubber as raw material.
Fiber Optical Splice Closure (FOSC) --samiliar with the model of TYCO FOSC 400 and FIST
Fiber Optic Terminal Box
Fiber Optic Splice Cabinets
Fiber optic Distribution Boxes
ODF
FTTX Series Products.
Indoor/ outdoor cable (G657)
Antenna & Jumper protective system
