Product Description
Introduce :

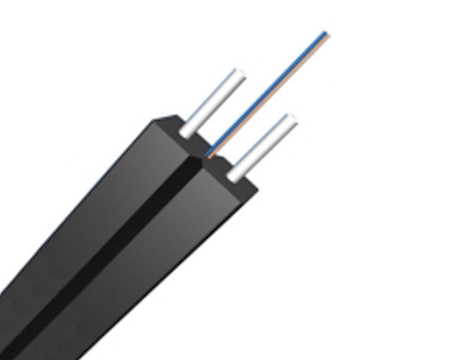

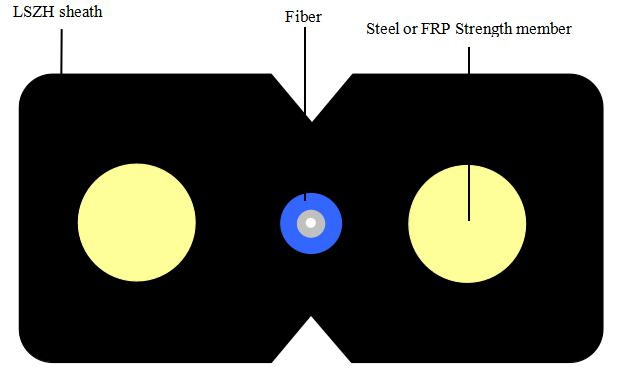

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
Product Description
Fiber to the Home Indoor Drop Cable(GJXH) Optical Fiber Cable Detail:
1. Cable Design
| Item | Description |
| Model No | GJXH |
| 1. Fiber count | 2 Core |
| 2. Cable Diameter | 3.0*2.0mm |
| 3. Cable Weight | 11.5KG |
| 4. Strength member | |
| -Material | Steel |
| -Diameter | 0.45mm |
| 5.Outer Sheath | |
| -Material | LSZH (white) |
| 6. Sheath marking | |
| -Type of marking | Laser printing |

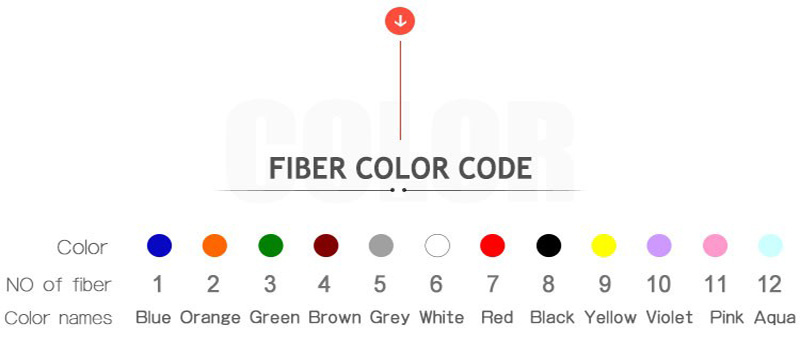

2. Standard Color Identification of Fiber
3. Fiber Specifications| Fiber style | Unit | SM
G652D | SM
G657A1 | SM
G657A2 |
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 |
| attenuation | dB/km | ≤0.36/0.23 | ≤0.35/0.21 | ≤0.35/0.21 |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ≤18 | ≤18 |
| 1550nm | Ps/(nm*km) | ≤22 | ≤22 | ≤22 |
| Zero dispersion wavelength | nm | 1312±10 | 1312±10 | 1300-1324 |
| Zero dispersion slope | ps/(nm²×Km) | ≤0.091 | ≤0.090 | ≤0.092 |
| PMD Maximum Individual Fiber | [ps/√km] | ≤0.2 | ≤0.2 | ≤0.2 |
| PMD Design Link Value | ps/(nm²×Km) | ≤0.08 | ≤0.08 | ≤0.08 |
| Fiber cutoff wavelength λc | nm | >=1180,≤1330 | >=1180,≤1330 | >=1180,≤1330 |
| Cable cutoff wavelength λcc | nm | ≤1260 | ..... | ..... |
| MFD | 1310nm | um | 9.2±0.4 | 9.0±0.4 | 9.8±0.4 |
| 1550nm | um | 10.4±0.8 | 10.1±0.5 | 9.8±0.5 |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.05 | ≤0.05 |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.05 | ≤0.05 |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0.03 | ≤0.03 |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ≤0.01 |
| Cladding diameter | um | 125.0±0.1 | 124.8±0.1 | 124.8±0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤0.7 | ≤0.7 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding concentricity error | um | ≤0.6 | ≤0.5 | ≤0.5 |
| Curl(radius) | um | ≥4 | ≥4 | ≥4 |
4. Cable Performance| Items | Description |
| Installation Temperature range | -20--+60ºC |
| Operation and transport temperature | -40-+70ºC |
| Min Bending Radius(mm) | Long term | 10D |
| short term | 20D |
| Allowable Tensile Strength(N) | Long term | 60 |
| short term | 100 |
| Crush Load (N/100mm) | Long term | 500 |
5. Packing | Items | Description |
| Cable length | 1KM or 2KM per reel |
| Package material | drum+carton |
| Package size | 1KM | 31.5*21*32.5cm |
| 2KM | 34.5*28*35cm |
6. Application1.Used as access building cable
2.Used in indoor cabling, especially used for FTTH
