Name: Indoor Distribution Fiber Cable GJFJV Optical Cable
Brand: all-electronics-online.com
SKU: 730767072
Availability: InStock
Rating: 4.3 (61 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Indoor Distribution Fiber Optic Cable
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yinet

Product Description

·Description

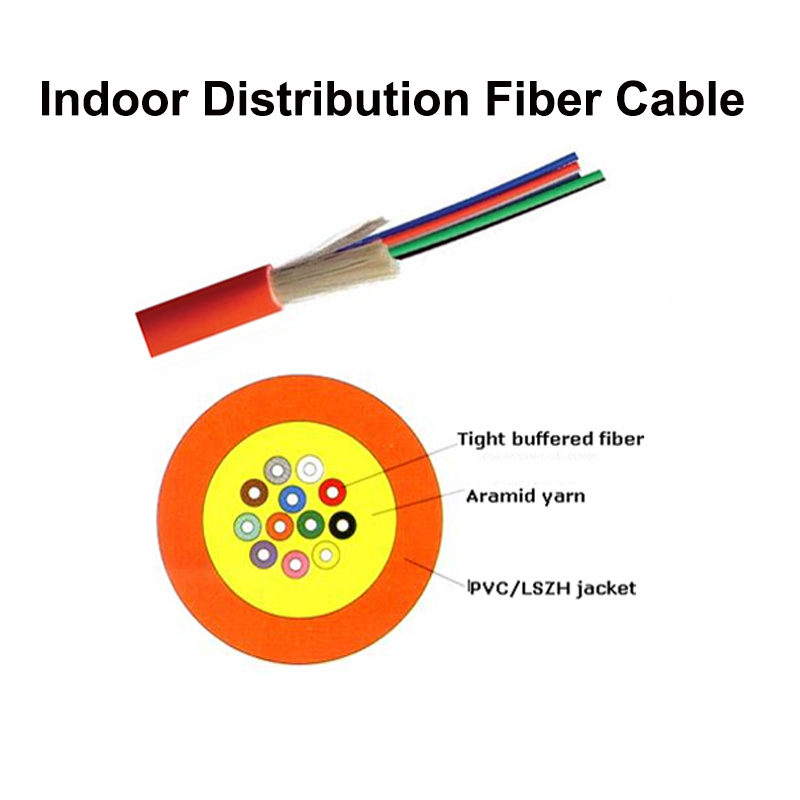

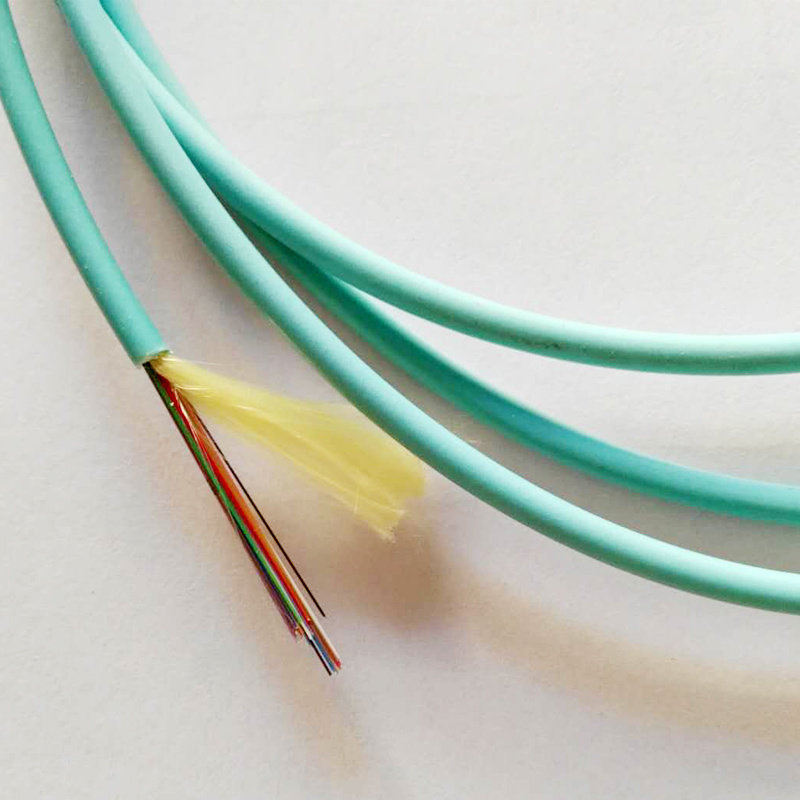

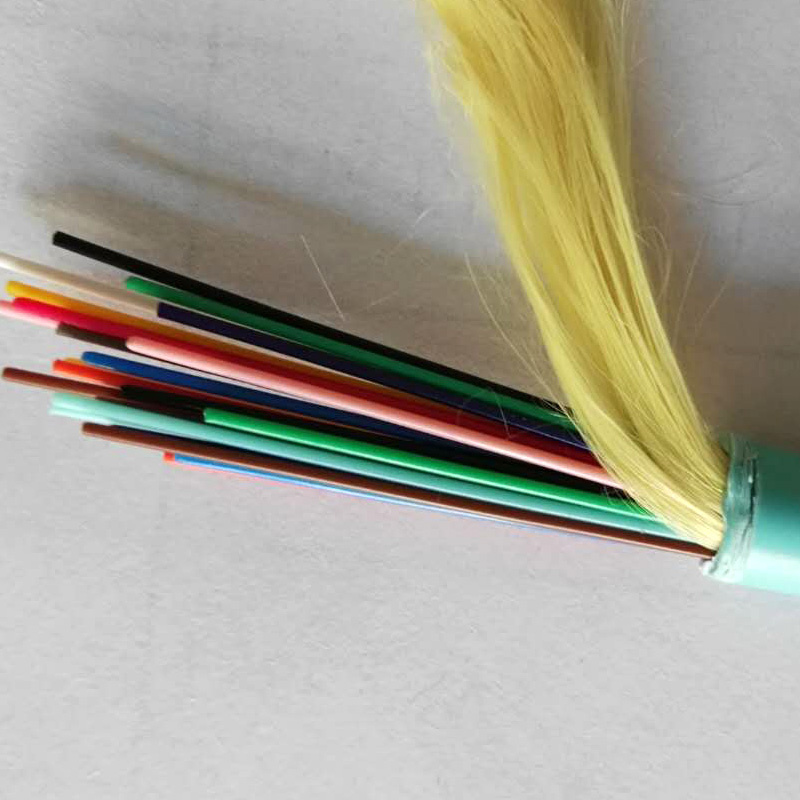

02~12 fiber, Φ900μm Tight buffer fiber, Aramid yarn, PVC Jacket.

·Standards

Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR.

·Cable Code

	MPC-02	MPC-04	MPC-06	MPC-08	MPC-10	MPC-12
Cable Diameter (mm)	4.1±0.25	4.8±0.25	5.1±0.25	5.6±0.25	5.8±0.25	6.2±0.25
Cable Weight (kg/km)	11.0	18.4	22	24	27	31
TBF Diameter	900±50μm

·Mechanical Characteristics

Tensile Strength	Long term	200N
Tensile Strength	Short term	660N
Crush Resistance	Long term	300N/100mm
Crush Resistance	Short term	1000N/100mm
Bending Radius	Dynamic	20×D (Cable Diameter)
Bending Radius	Static	10×D (Cable Diameter)

·Optical Characteristics

		50/125μm	62.5/125μm	G.652	G.655
Attenuation(+20ºC)	@850nm	≤3.5dB/km	≤3.5dB/km
	@1300nm	≤1.5dB/km	≤1.5dB/km
	@1310nm			≤0.45dB/km	≤0.50dB/km
	@1550nm			≤0.30dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm	≥500MHz·km	≥200MHz·km
Bandwidth (Class A)	@1300nm	≥1000MHz·km	≥600MHz·km
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc				≤1260nm	≤1480nm
Attenuation at temperature cycling Δα(-20ºC~+85ºC)	@1300nm	≤0.25dB/km	≤0.25dB/km
Attenuation at temperature cycling Δα(-20ºC~+85ºC)	@1550nm			≤0.10dB/km	≤0.15dB/km

Environmental Characteristics

Transport Temperature	-20ºC~+60ºC
Storage Temperature	-20ºC~+60ºC
Installation Temperature	-5ºC~+50ºC
Operating Temperature	-20ºC~+60ºC
