Glass Insulator

Name: Glass Insulator
Brand: all-electronics-online.com
SKU: 741193285
Availability: InStock
Rating: 4.6 (125 reviews)

Price:	US $ 2-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	U70BS U70BL, U120B, U160B, U160BL
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Application:	High-voltage
Material:	Glass
Structure:	Solid
Type:	Hybrid Insulation

Product Description

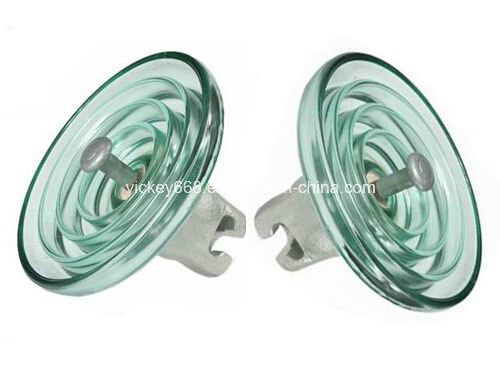

Glass Insulators U70BS, U70BL, U120B, U160B, U160BL
which we have exported glass insulators to Vietnam , Ukrain, Poland, Russian about 5years and have enjoyed very good reputations
glass insulator Standard: IEC60383

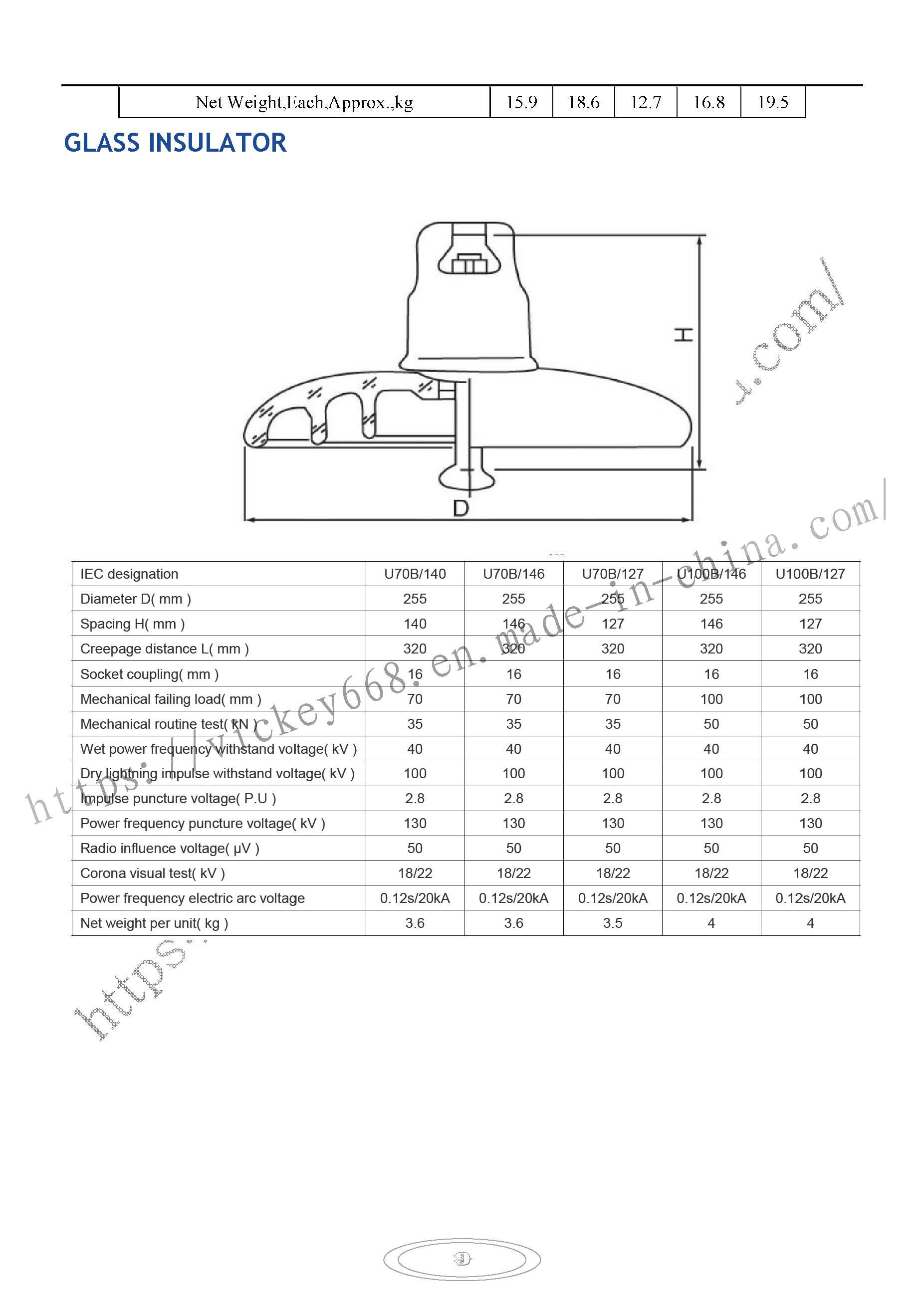

IEC Standard insulators	Designation	( mm ) Diameter D	( mm ) Spacing H	( mm ) Creepage L	( mm ) Ball and Socket soupling	( kN ) Mechanical failing load	( kN ) Mechanical routine test	( kV ) Wet power frequency withstand voltage	( kV ) Dry lightning impulse withstand voltage	( P.U ) Impulse puncture voltage	( kV ) Power frequency puncture voltage	( µV ) Rodio influence voltage	( kV ) Corona visual test	Power frequency electric arc voltage	( kg ) Net weight per unit
U70BS	LXP2-70	255	127	320	16	70	35	40	100	2.8	130	50	18/22	0.12s/20kA	3.5
U70BL	LXP1-70	255	146	320	16	70	35	40	100	2.8	130	50	18/22	0.12s/20kA	3.6
U120B	LXP-120	255	146	320	16	120	60	40	100	2.8	130	50	18/22	0.12s/20kA	4.2
U160B	LXP4-160	280	146	400	20	160	80	45	110	2.8	130	50	18/22	0.12s/20kA	6.1
U160BL	LXP-160	280	170	400	20	160	80	50	110	2.8	130	50	18/22	0.12s/20kA	6.5

VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
