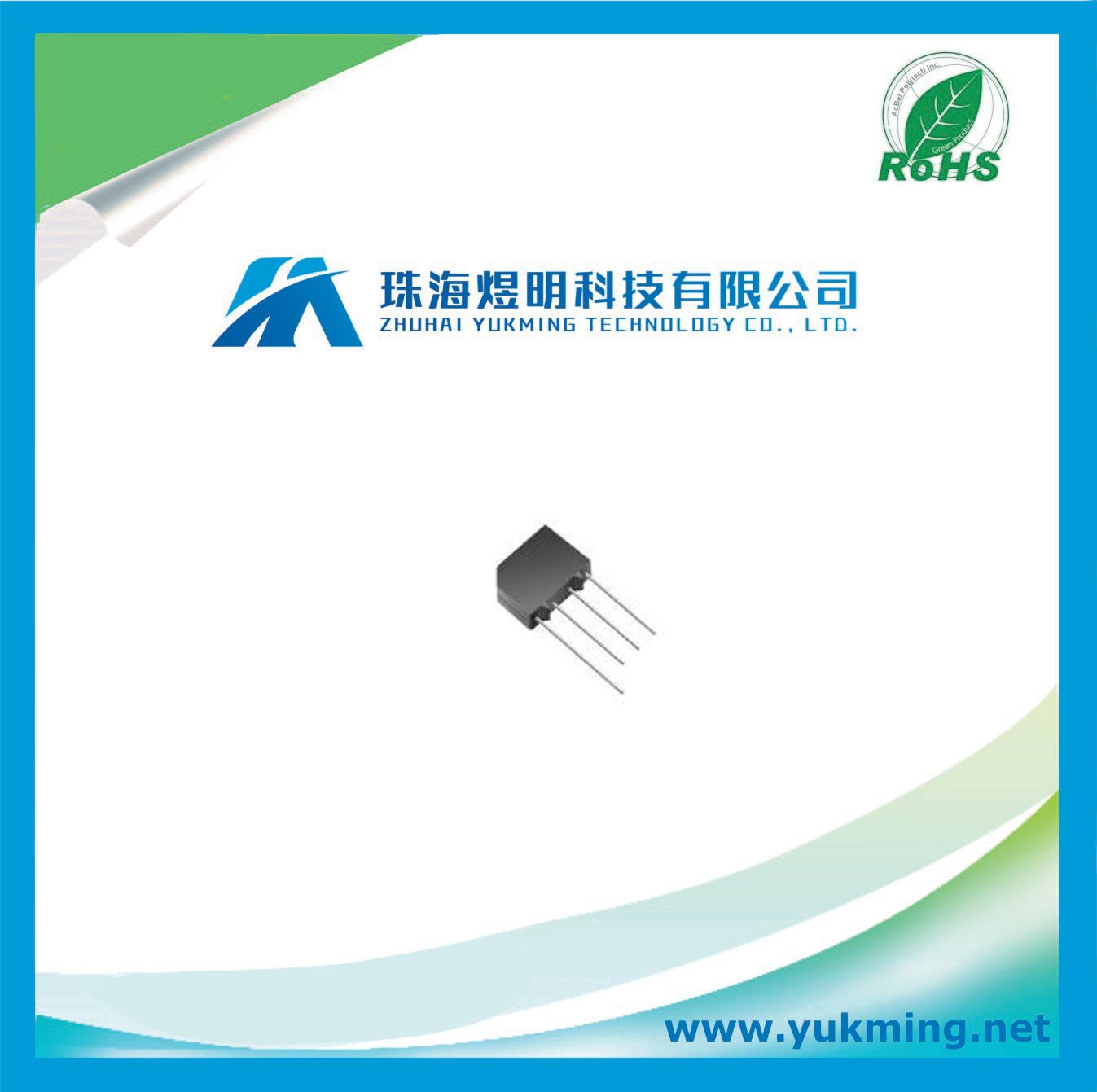

Glass Passivated Single-Phase Bridge Rectifier Diode

Prod Model:	2KBP06M-E4/51
Peak Reverse Repetitive Voltage (V):	600
Maximum Continuous Forward Current (a):	2@Ta=55c
Peak RMS Reverse Voltage (V):	400
Peak Non-Repetitive Forward Surge Curren:	60
Peak Reverse Current (Ua):	5
Operating Junction Temperature (°c):	-55 to 165 Degree C

Product Description

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require





Glass Passivated Single-Phase Bridge Rectifier

MANUFACTURER
Vishay

PRODUCT CATEGORY
Bridge Rectifiers

DESCRIPTION
Diode Rectifier Bridge Single 600V 2A 4-Pin Case KBPM Bulk

If you want to convert an alternating current input into a direct current, then this 2KBP06M-E4/51 full bridge rectifier from Vishay is perfect for you! This product comes packaged in bulk, so the parts will be stored loosely. This rectifier has an operating temperature range of -55 °C to 165 °C. It is made in a single configuration.

Specifications
Bridge Type Single Phase
Configuration Single
Peak Reverse Repetitive Voltage (V) 600
Peak Average Forward Current (A) 2@Ta=55C
Peak RMS Reverse Voltage (V) 420
Peak Non-Repetitive Forward Surge Current (A) 60
Peak Reverse Current (uA) 5
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 165
Packaging Bulk
Peak Forward Voltage (V) [email protected]
Mounting Through Hole
Package Height (mm) 11.68(Max)
Package Length (mm) 15.24(Max)
Package Width (mm) 5.08(Max)
PCB changed 4
Supplier Package Case KBPM
Pin Count 4
Lead Shape Through Hole

FEATURES
 • UL recognition file number E54214
 • Ideal for printed circuit board
 • High surge current capability
 • High case dielectric strength
 • Solder dip 260 °C, 40 s
 • Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
General purpose use in ac-to-dc bridge full wave
rectification for switching power supply, home
appliances, office equipment, and telecommunication
applications.
MECHANICAL DATA
Case: KBPM
Epoxy meets UL 94V-0 flammability rating
Terminals: Silver plated leads, solderable per
J-STD-002 and JESD22-B102
E4 suffix for consumer grade
Polarity: As marked on body
