Gold Finger PCB 2 Layer Cricuit Board with Black Soldermask

Gold Finger PCB 2 Layer Cricuit Board with Black Soldermask
Price: US $ 1.02/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: BIC1334R3.1
Surface Finish: Immersion Gold
Legend Color: White
Board Thick: 1.6mm
Number Of Layer: 2
Outer Copper Foil: 42.17 Um(1 Oz)
Inner Copper Thick: 1 Oz
Warp-Twist: 0.42%
Solder Mask Color: Balck
Electrical Test: 100% PCB Passed
Min Line Width (Mil): 7.4 Mil
Type: Rigid Circuit Board
Dielectric: FR-4
Material: Fiberglass Epoxy
Flame Retardant Properties: V0

Product Description

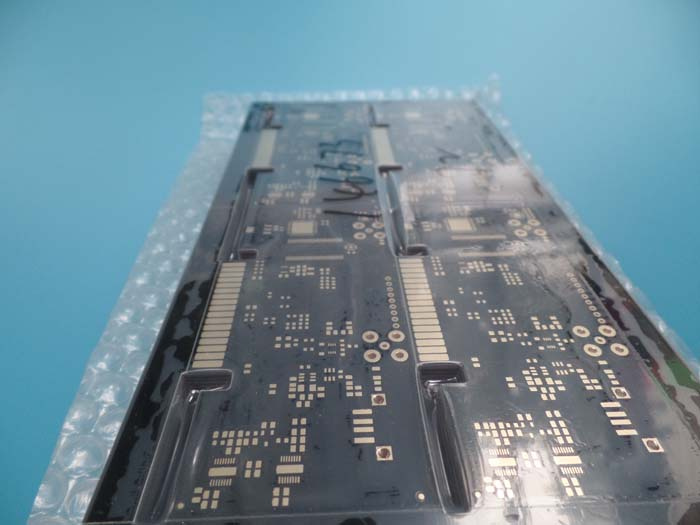

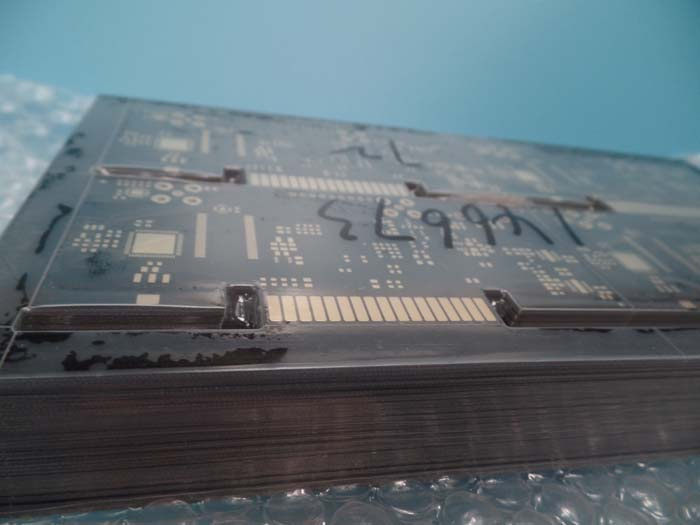

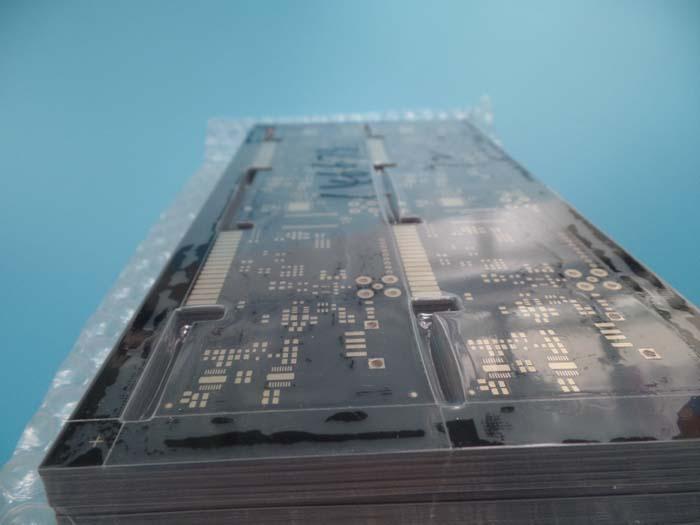

Gold finger PCB 2 Layer cricuit board with Black Soldermask and Immersion Gold


Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 2  layer board at 1.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Kuang Shun and Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are pa
-cked separately.



Parameters & Data Sheet
ItemRequirementResult
LaminateTypeFR-4  TG170FR-4 TG170
SupplierITEQITEQ
Board thickness1.60±10%mm1.58-1.63mm
Outer copper foil>=35 um42.27
Inner copper foil//
Warp-twist<= 0.75%0.42%(max)
LegendTypeKUANG SHUNKUANG SHUN
ColorWhiteWhite
LocationCS & SSCS & SS
MarkingCo.logoYESOK
UL.logo YESOK
Date codeWWYY0 917
Marking formNA  ok
LocationCSCS
Min line width (mil)7.67.4
Min line spacing (mil)55.2
Min ring width (mil)NA  NA
Solder MaskTypeKSM-S6189BK31KSM-S6189BK31
ColorBlackBlack
Thickness>=10 um13 um
Pencil Test6H OR ABOVE OK
SOLVENT TESTNO ATTACKOK
TAPE TEST NO PEEL OFFOK
Surface TreamentImmersion GoldOK
Special TreamentSilk screen//
Location//
FormingV-cutOK
Normal TestingElectrical test100% PCB passed OK
Visual inspectionIPC-A-600H&IPC-6012BOK
Solderability Test 245ºC 5S 1 CycleOK



Layer Stackup

The purpose of stackup is to interleave the thin laminates and the prepreg sheets in correct
sequence and ensure correct layer-to-layer registration. The stackup of multilayer boards can be
done in many different ways.

Among multilayer PCB's, 12- layer is the largest number of layers that can be produced easily in
1.6mm thick.

Hybrid PCB stack up

4 layer PCB, RO4350B combined with FR-4 Core.
Genuine RO4350B 4 layer PCB vs FR-4 4 layer PCB

Build-up of FR-4 PCB (4 layer)            Build-up of RO4350B PCB (4 layer)
Copper track --- Layer 1                      Copper track --- Layer 1
Prepreg(PP)                                        RO4350B Core
Copper track --- Layer 2                     Copper track --- Layer 2
FR-4 Core                                          Rogers Prepreg(PP)
Copper track --- Layer 3                    Copper track --- Layer 3
Prepreg(PP)                                       RO4350B Core
Copper track --- Layer 4                    Copper track --- Layer 4
