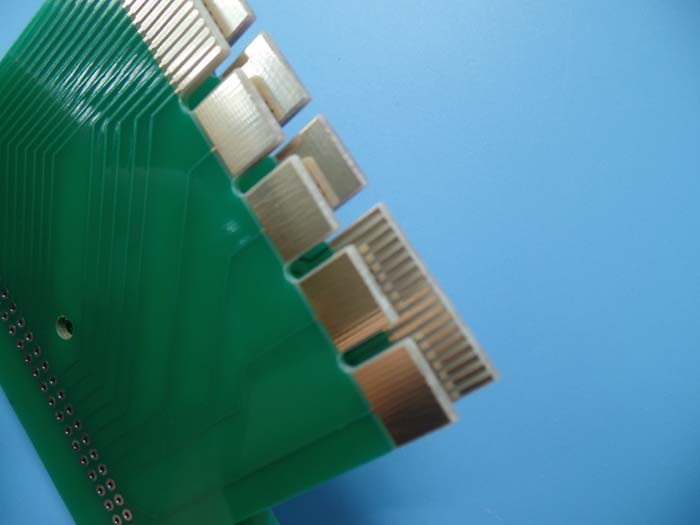

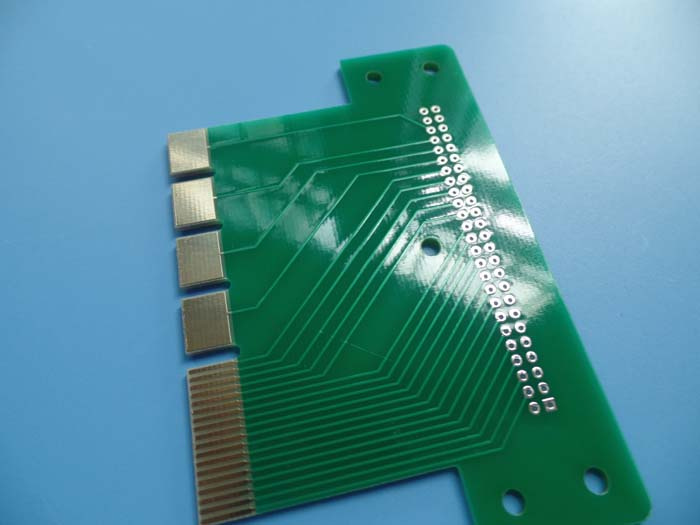

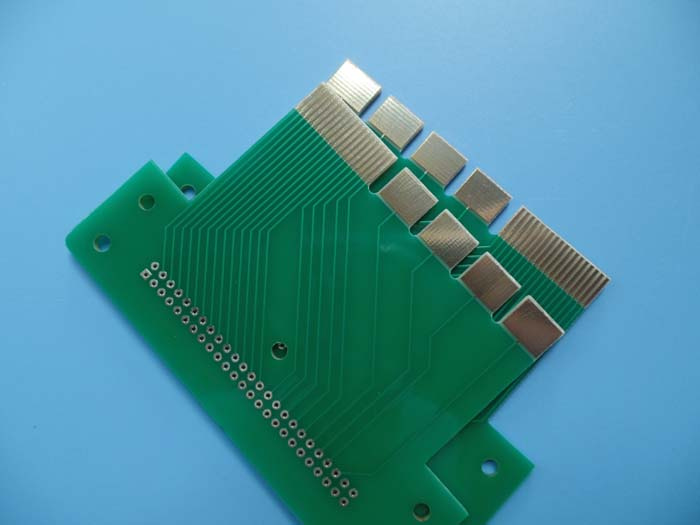

Gold Finger PCB Board 2 Layer Green Soldermask Without Silkscreen

Name: Gold Finger PCB Board 2 Layer Green Soldermask Without Silkscreen
Brand: all-electronics-online.com
SKU: 822233115
Availability: InStock
Rating: 4.7 (52 reviews)

Price:	US $ 0.45/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-220-V2.20
Outer Copper Foil:	43.37 Um
Board Thickness:	1.58-1.64mm
Surface Treament:	Enig
Solder Mask Color:	Green,Kuang Shun
Legend Color:	White,Kuang Shun
Electrical Test:	100% PCB Passed
Forming:	V-Cut
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Solderability Test:	245ºC 5s 1 Cycle
Test:	100% Electrical Test
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

Double sided PCB Green Solder Mask PSR-2000GT600D PCB FR-4 ITEQ 1.6mm Gold finger PCB with
ENIG in Wifi Range Extender

Commodity Introduction
This is a type of FR-4 PCB for the application of Wifi Range Extender. It's a 2 layer board at 1.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4 TG170	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.6+/-10%mm	1.58-1.64mm
	Outer copper foil	>=35 um	43.37 um
	Inner copper foil	/	/
	Warp-twist	<= 0.75%	0.19%
Legend	Type	KUANG SHUN	KUANG SHUN
	Color	White	White
	Location	CS	CS
Marking	Co.logo	As requirement	OK
	UL.logo	94V0	94V0
	Date code	WWYY	WWYY
	Marking form	As reqruiement	OK
	Location	CS	CS
Min line width (mil)		8.5	8.7
Min line spacing (mil)		5.9	5.7
Min ring width (mil)		NA	NA
Solder Mask	Type	KUANG SHUN	KUANG SHUN
	Color	Green	Green
	Thickness	>=10 um	13 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface treament	ENIG		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

NO	Required Dimension (tolerance)	Actual dimension
1	211.99	212.02	211.98	211.90	211.99
2	89.51	89.58	89.40	89.52	89.49

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

NO	Required		Actual dimension
1	0.700	Y	0.700	0.675	0.725	0.700
2	1.000	Y	1.000	0.975	1.025	1.000
3	1.600	Y	1.600	1.575	1.625	1.600
4	1.800	Y	1.800	1.775	1.825	1.800
5	1.930	Y	1.950	1.925	1.975	1.950
6	3.200	Y	3.200	3.175	3.225	3.200
7	3.500	N	3.500	3.475	3.525	3.500

Learn PCB and Buy PCB
Frequently used Unit Conversion in PCB industry

1 inch= 25.4mm
1 inch= 1000mil
1 foot = 12 inch=0.3048 meter

1mm = 39.37mil
1mm = 1000µm
1µm = 39.37 micro inch

1oz = 35µm = 1.4mil = 305g/m²

1inch² = 0.0645dm² = 6.4516cm² = 645.16mm²
1ft² = 144 inch² = 0.09290304m² = 9.29dm²
1m² = 1549.9969 inch²
