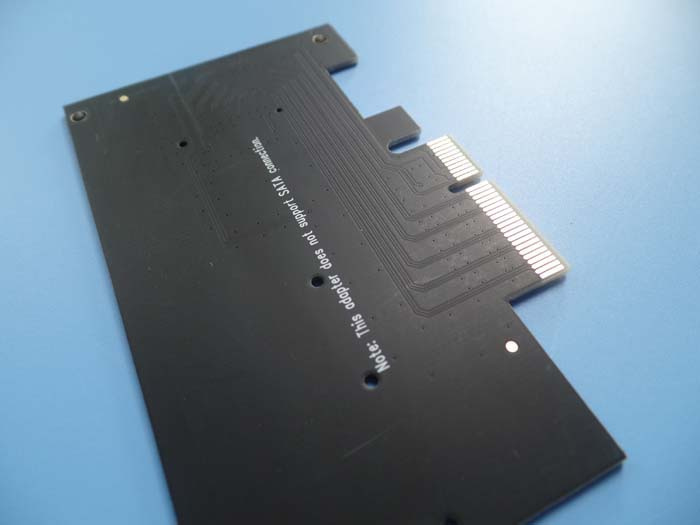

Gold Finger PCB Board 2layer 1.6mm Thick with Black Soldermask

Name: Gold Finger PCB Board 2layer 1.6mm Thick with Black Soldermask
Brand: all-electronics-online.com
SKU: 822230785
Availability: InStock
Rating: 4.8 (97 reviews)

Price:	US $ 0.56/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-218-V2.18
Outer Copper Foil:	43.37um
Board Thickness:	1.58+/-1.64mm
Surface Treament:	Enig
Solder Mask Color:	Black,Ksm-S6189bk31
Legend Color:	White,Kuang Shun,Ijr-4000 MW300
Electrical Test:	100% PCB Passed
Forming:	V-Cut
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

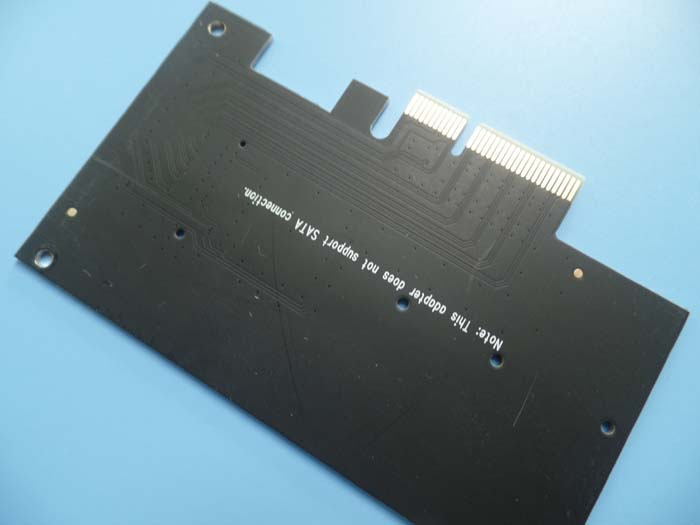

Golder finger Double sided PCB 1.61-1.64mm thick Black Solder Mask and white Screen with
Immersion Gold for Wireless Speakers

Commodity Introduction
This is a type of FR-4 PCB for the application of Wireless Speakers. It's a 2 layer board at 1.58+/-1.64mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

ITEM		REQUIRED	ACTUAL
Laminate	Type	FR-4 Tg170	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.6+/-10%mm	1.58+/-1.64mm
	Outer copper foil	>=35 um	43.37
	Inner copper foil	/	/
	Warp-twist	<= 0.75%	0.21%
legend	Type	KUANG SHUN	IJR-4000 MW300
	Color	White	White
	Location	CS	CS
Marking	Co.logo	As requirement	OK
	UL.logo	As requirement	OK
	Date code	As requirement	OK
	Marking form	As requirement	OK
	Location	CS	CS
Min line width (mil)		4.5	4.45
Min line spacing (mil)		4.5	4.51
Min ring width (mil)		NA	NA
Solder Mask	Type	KSM-S6189BK31	KSM-S6189BK31
	Color	Black	Black
	Thickness	>=10 um	14 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface treament	ENIG		OK
Special Treament	Silk screen		/
	Location		/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished Dimension (unit: mm): including v-cut

NO	Required Dimension (tolerance)	Actual Dimension
1	236.00	236.10	236.04	236.11	235.99
2	218.00	218.06	218.03	217.96	217.99

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

NO	Required	PTH	Actual dimension
1	1.050	Y	1.050	1.025	1.075	1.050
2	1.400	Y	1.400	1.375	1.425	1.400
3	0.800	N	0.800	0.775	0.825	0.800
4	2.400	N	2.400	2.375	2.425	2.400

Learn PCB and Buy PCB
Frequently used Unit Conversion in PCB industry

1 inch= 25.4mm
1 inch= 1000mil
1 foot = 12 inch=0.3048 meter

1mm = 39.37mil
1mm = 1000µm
1µm = 39.37 micro inch

1oz = 35µm = 1.4mil = 305g/m²

1inch² = 0.0645dm² = 6.4516cm² = 645.16mm²
1ft² = 144 inch² = 0.09290304m² = 9.29dm²
1m² = 1549.9969 inch²
