| Prod Model: |
Heating Element |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heater: |
Infrared Heater |
| Light Source: |
Halogen |
| Wave Length: |
2.2-3.5 Micron |
| Color Temperature: |
1800k |
| Heating Unit: |
Fecral Heating Wire |
| Surface Treatment: |
Half Golden Plated or Coated White Processing |
| Dia: |
Customized |
| Lifetime: |
5000 Hours |
| Application: |
Heater |
| Structure Material: |
Non-Metallic Material |
| Heat Transfer Surface: |
Tubular Heat Exchanger |
| Principle: |
Infrared Heating |
Product Description
Heating Element

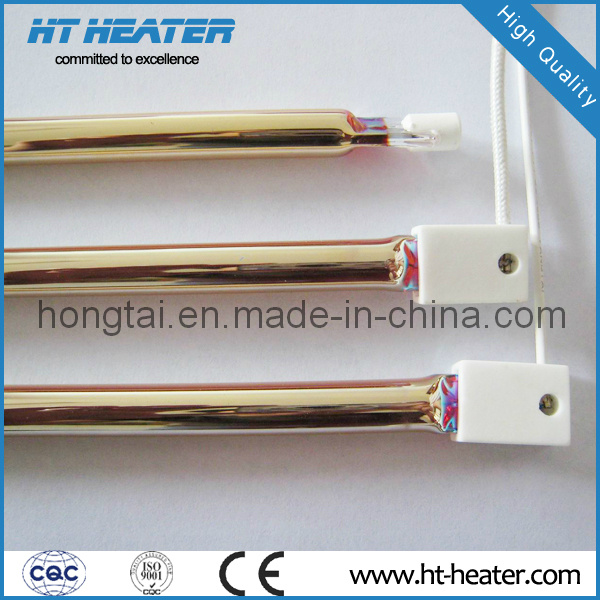

Golden Halogen Infrared Heating Element
1 Introduction
Quartz medium wave infrared heater uses iron chrome alloy wire(FeCrAl wire) as heating unit and uses quartz tube as protection sleeve. Its color temperature is 1800K and the wave length range is 2.2-3.5 micron. Because the main radiation band is located in medium wave area, it is most suitable for water drying and widely used in industry drying, ect. Power, voltage and lamp's length can produced according to customer's requirement and drawing. There are two installation methods: Horizontal operation and vertical operation. In order to improve radiation efficiency, we can make half golden plated or coated white processing.
2 Type
1. Quartz medium wave single tube infrared heater: Using quartz single tube as the slleeve of medium wave infrared heater. The cross section of the heater can be ID8*OD10, ID10*OD12, ID14*OD17, ID17*OD20, ID28*OD34 and so on. Working life reaches 5000 hours.
2. Quartz medium twin tubes infrared heater: Using quartz twin tubes as heater sleeve. Because the special twin tube design, this kind of heater has high mechanical strength. The maximun length we can make is 6 meters. And the working life reaches over 5000 hours.
3 Feature
1. Strong radiation and penetration
2. Fast heating respnse, reaching 100% power after be electrified
3. Save energy, environmental-friendly
4. Good thermostability
5. Easy installation
4 Application
It is widely used in industrial draying, such as water paint, water-based oil, water-based resin, water-based ink glass, resin, plastic and papermaking industry. It is also applys in heating devices, sterilization cabinets, paint machines, optical air condition, dry curing and food processing.
5 When you inquiry, pls sspecify the following details
1. Diameter, total length, voltage, power, working temperature
2. Termination zone, how you want the heater to be connected with the electricity (screws, cable, cap etc. )
3. Surface quartz tube color
4. Connection
5. It is perferred to offer a drawing with all parameter
|
Medium-wave infrared (IR) |
|
Model |
Power
(W) |
Voltage
(V) |
Color temperature
(K) |
The peak wavelength
(um) |
Life
(H) |
Diameter
(mm) |
Size
(mm) |
|
IR-1 |
300 |
120 |
980-1380 |
2.5-4.5 |
5000 |
8-10 |
200-450 |
|
IR-1 |
325 |
120 |
980-1380 |
2.5-4.5 |
5000 |
8-10 |
200-450 |
|
IR-1 |
400 |
120-240 |
980-1380 |
2.5-4.5 |
5000 |
8-10 |
200-450 |
|
IR-1 |
500 |
120-240 |
980-1380 |
2.5-4.5 |
5000 |
8-10 |
200-450 |
|
IR-1 |
600 |
120-240 |
980-1380 |
2.5-4.5 |
5000 |
8-10 |
250-600 |
|
IR-1 |
800 |
120-240 |
980-1380 |
2.5-4.5 |
5000 |
8-10 |
250-800 |
|
IR-1 |
1000 |
120-240 |
980-1380 |
2.5-4.5 |
5000 |
10-12 |
300-1500 |
|
IR-1 |
1200 |
120-240 |
980-1380 |
2.5-4.5 |
5000 |
10-12 |
350-1500 |
|
IR-1 |
1500 |
120-380 |
980-1380 |
2.5-4.5 |
5000 |
10-12 |
350-1500 |
|
IR-1 |
1800 |
120-380 |
980-1380 |
2.5-4.5 |
5000 |
10-12 |
350-1500 |
|
IR-1 |
2000 |
120-380 |
980-1380 |
2.5-4.5 |
5000 |
10-12 |
350-1500 |
Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).
With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.
We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.
We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.
Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.
Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.
We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
