| Prod Model: |
GYTS Fiber optic cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Style: |

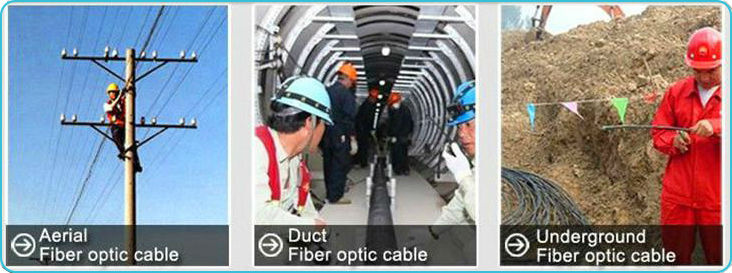

Duct,Aerial Fiber Optic Cable |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
| Waterblocking Material: |
Water Blockaing Tape or Filling Compound |
| Outer Sheath Material: |
MDPE / HDPE / LSZH PE |
| Single Armour Material: |
Corrugated Steel Tape Optic Cable |
| Fiber Count: |
2-288 Core Fiber Optic Cable |
| Central Stranden Member: |
Steel Wire or FRP Fiber Cable |
| Loose Tube Material: |
PBT with Jelly Fiber Optic Cable |
| Temperature: |
-40 Degree to +60 Degree Optic Cable |
| Application: |
Optical Fiber |
| Certification: |
Reach |
| Type: |
Glass Fiber |
| Connection Structure: |
Optical Fiber |
| Allowed Lateral Pressure: |
Fiber Optic Cable |
| Allowed Tensile Strength: |
Glass Fiber |
| Core: |
Optical Fiber |
| Brand: |
Optical Fiber |
| Sheath Material: |
Fiber Optic Cable |
Product Description

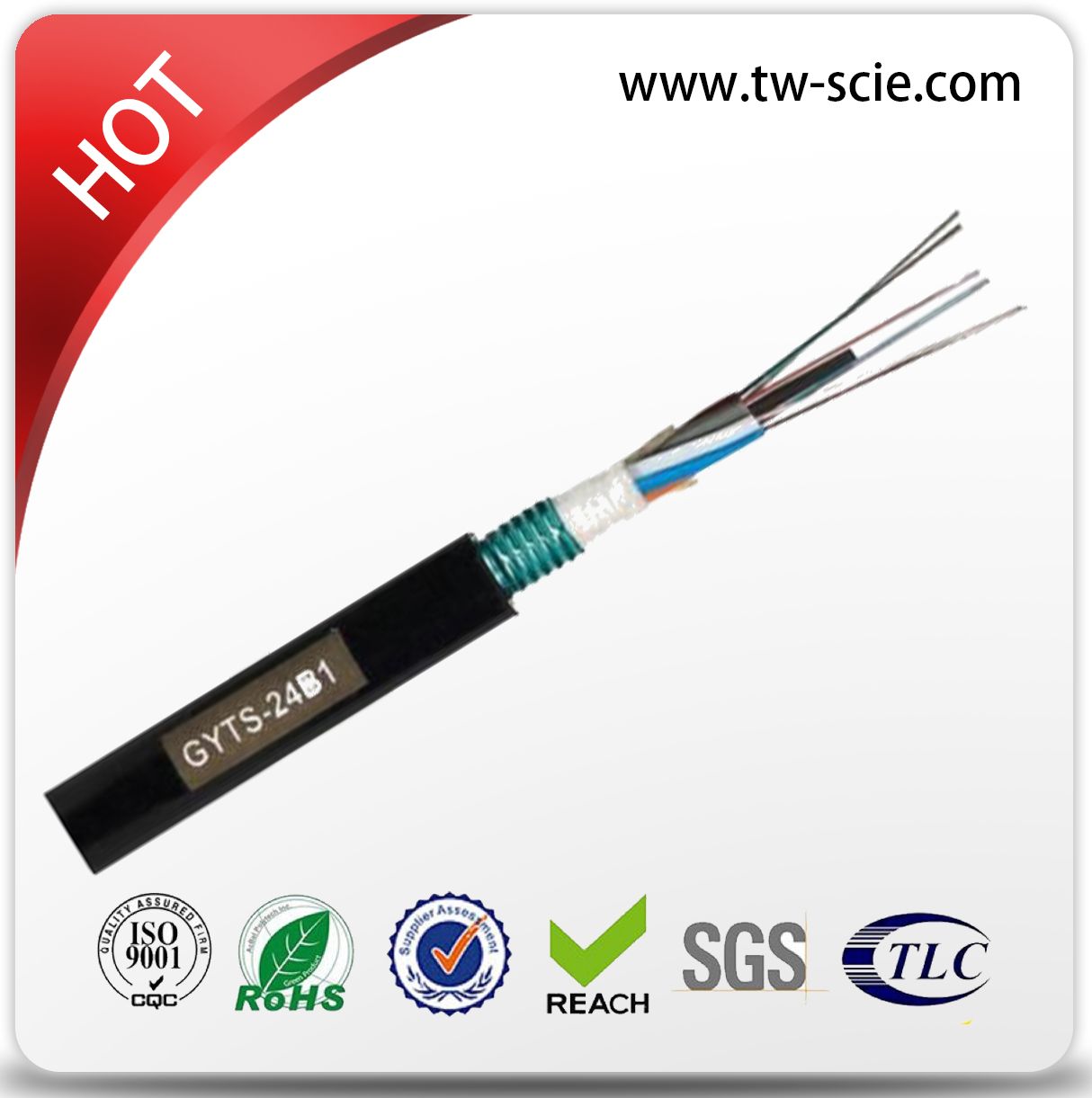

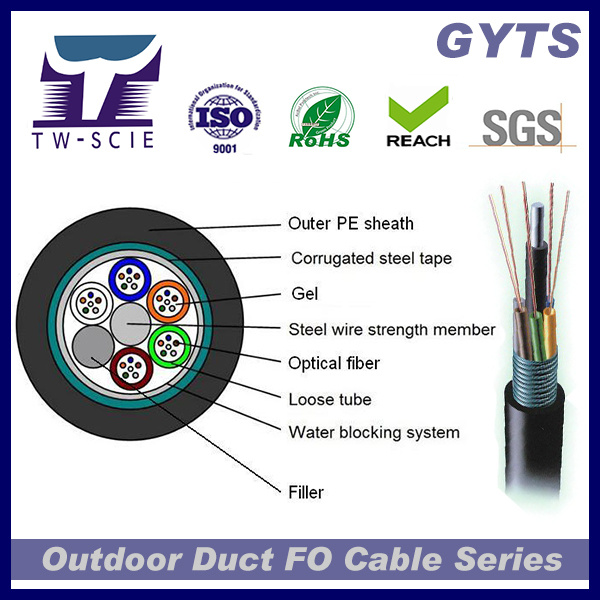

Good Performance Armored Optical Fiber Cable GYTS FO cableGYTS Outdoor Armored Optical Fiber Cable1.Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3.Double sheath structure makes cable have nice moisture resistance and crush resistance performance.
4.Small cable diameter, light cable weight, easily to install.
GYTS 2-288 Core Optical Fiber Cable 2-288 Core Optical Fiber Cable including outdoor 2-288 Core Optical Fiber Cable, indoor 2-288 Core Optical Fiber Cable, ftth 2-288 Core Optical Fiber Cable.TW-SCIE 2-288 Core Optical Fiber Cable are widly used for communication, medical, military. The laying method including aerial, duct, direct burial, underwater, marine.2-288 Core Optical Fiber Cable Certificate including REACH,ISO9001, SGS, RoHS. 2-288 Core Optical Fiber Cable capacibility : 300km/day. We have varity of 2-288 Core Optical Fiber Cable modules, accept custom and supply OEM, ODM services. We have strong sales team, 24 hours supply consult and quotation for you. GYTS optic fiber cable Technology Specification: | Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage |
| | Diameter | | (N) | | (N/100mm) | (MM) | | temperature |
| | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) |
| 2-60 | 9.8 | 116 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 62-72 | 10.5 | 146 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 74-96 | 12.8 | 174 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 98-120 | 14.5 | 209 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 122-216 | 15.5 | 271 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| GYTS optic fiber cable Optical Characteristics: : |
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| | | A1b:62.5/125 |
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber |
| G.652D | | B2: Zero dispersion shifted |
| G.655 | | B1.2 :Cut-off wavelength shifted |
| G.657(A1,A2 ,B3) | B4: Main technical data for positive |
| dispersion shifted single-mode fiber |
GYTS Fiber Optic Cable Details:
(GYTS)Keywords: 2-288 Core Optical Fiber Cable Self-supporting 2-288 Core Optical Fiber CableStranded loss tube 2-288 Core Optical Fiber Cable Aerial 2-288 Core Optical Fiber CableSteel wire strength memner 2-288 Core Optical Fiber CablePE Sheath 2-288 Core Optical Fiber CableGYTS 2-288 Core Optical Fiber Cable Competitive Advantages1.OEM fiber optic cable manufacturer 2. Fiber brand : YOFC, CORNING,FUJIKURA 3.Quality certification :ISO9001.ROSH.REACH4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality, competitive prices , fast delivery and good serviceGYTS 2-288 Core Optical Fiber Cable Main Export Markets· Central/South America· Mid East/Africa· Eastern Europe· North America· Asia· Western Europe· AustralasiaPackaging Detail: GYTS 2-288 Core Optical Fiber Cable package are with export wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM. Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cabledrum from customers. welcome to contact us!Why Choose Our Fiber Optic Cable 1.Introduction of foreign advanced production equipment and technology, have 12 years production experience, 80% employees have more than 10 years experience, excellent enterprise culture and management team.2.FAST SHIPPING from factory3.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.4.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.5.We accept OEM. The cable size and material are customized. Your own logo and own design are welcome. We will produce according to ur requirement and description;6.With more than 12 years experience in fiber optic cable,we already cooperated and established long-term business relationship with both domestic and overseas famous enterprise.Contact us:We highly appreciate your any enquiry by email, fax or instant message. We will reply your email or fax within 12 hours. Please fell free to call us at any time if there is any questions. Transportation: · All available shipping ways could be applied, by courier, air or sea. · Appointed shipping company or our own forwarders all could be used in shipment. · Full-way tracking the cargos for you before the goods arrive. Company overview:
Related Products:
Tag: Fiber optic cable, armoured fiber cable, telecom optical fiber cable, stranded FO cable, outdoor FOC
For more details please feel free to contact me. Any of your inquiry will reply within 24hrs.
Alina SS
Mob:+86-13480750182

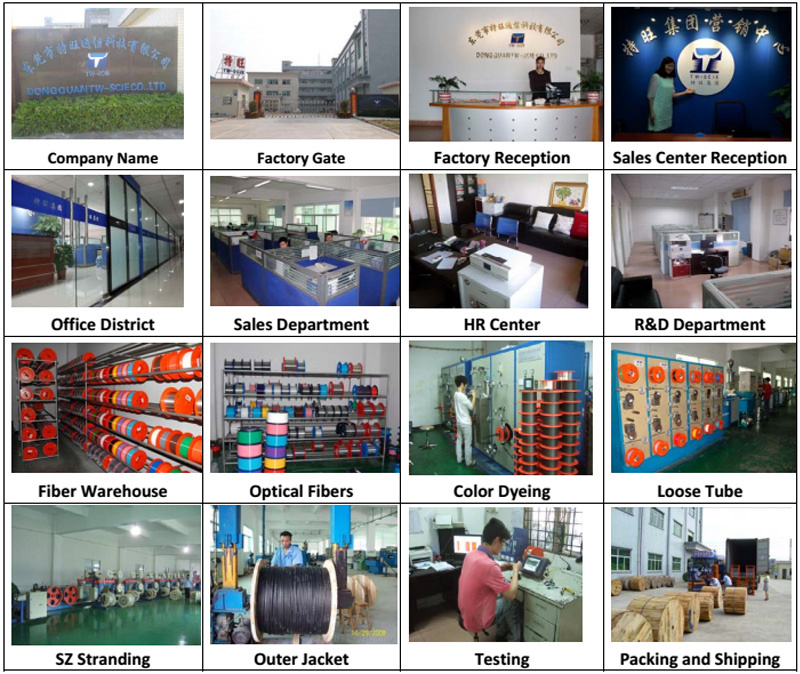

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
