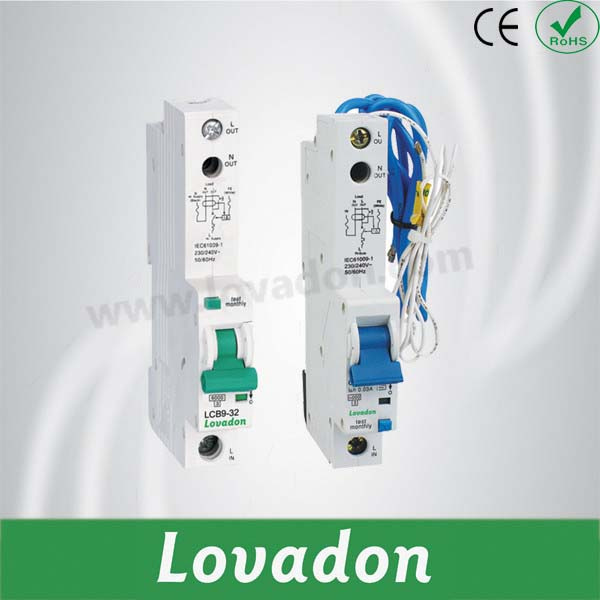

Good Quality Lcb9-32n Series RCCB Residual Current Circuit Breaker

Name: Good Quality Lcb9-32n Series RCCB Residual Current Circuit Breaker
Brand: all-electronics-online.com
SKU: 684078292
Availability: InStock
Rating: 5 (121 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LCB9-32N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Poles Number:	1
Certification:	CE
Breaking Capacity:	4.5 Ka 6ka 10ka
Operation:	Electrical Type / Magnetic Type
Installation:	DIN Type
Structure:	RCCB

Product Description

1.Item name: LCB9-32,LCB9-32N

2.Standard:IEC/EN 61009-1

3.Function:overcurrent protection

4.Rated voltage: 240

5.Rated current: 6A/10A/16A/20A/25A/32A

6.Frequency: 50/60Hz

1.Specifications
	Standard		IEC/EN 61009-1
Electrical features	Type(wave form of the earth leakage sensed)		AC
	Thermo-magnetic release characteristic		B,C
	Rated current In	A	6,10,16,20,25,32
	Poles	P	1P+N
	Rated voltage Ue	V	240
	Rated sensitivity I n	A	0.015,0.03,0.1,0.3
	Rated residual making
	and breaking capacity I m	A	500
	Rated short-circuit capacity lcn	A	6000
	Break time under l n	s	<0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage(1.2/50)Uimp	V	4000
	Dielectric test voltage at ind Freq for 1 min	kV	2
	Insulation voltage Ui		500
	Pollution degree		2
Mechanical features	ElectricaI life	t	4000
	Mechanical life	t	20000
	Contact position indicator		Yes
	Protection degree		IP20
	Ambient temperature		From the -5 C untill 40 C
	(with daily average <35 C)	C
	Storage temperature	C	-25~+70
Installation	Terminal connection type		Cable/U-type busbar/Pin-type busbar
	Terminal size top/bottom for cable	mm2	16
	Terminal size top/bottom for cable	AWG	18---5
		mm2	16
		AWG	18---5
	Tightening torque	N*m	2
		In-lbs	18
	Mounting		On DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

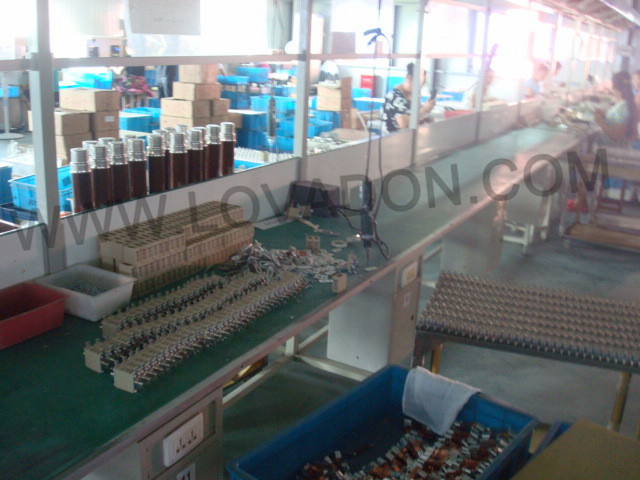

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
