Yueqing Lovadon Electric Co., Ltd. >> Good Quality Lf7 Series Residual Current Circuit Breaker RCCB

Good Quality Lf7 Series Residual Current Circuit Breaker RCCB

Good Quality Lf7 Series Residual Current Circuit Breaker RCCB
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: LF7 2P LF7 4P LF7N 2P LF7N 4P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Certification: CE
Breaking Capacity: 4.5 Ka 6ka 10ka
Operation: Electrical Type / Magnetic Type
Installation: DIN Type
Structure: RCCB
Poles Number: 2p,4p

Product Description

1.Item name: LF7 2P
2.Standard:IEC61008-1
3.Function:Leakage protection
4.Rated voltage: 230/400
5.Rated current: 16A/25A/32A/40A/63A
6.Frequency: 50/60Hz
1.Specifications
Standard IEC61008
Type AC,A
Rated current InA16,25,32,40,63
PolesP2,4
Rated voltage Ue  V230,400
Rated sensitivity I nA0.03,0.1,0.3
Break time under I n s0.1
Rated frequency Hz50/60
Rated impulse withstand voltage (1.2/50) Uimp V6000
Insulation voltage Ui  V500
Electrical lifet6000
Mechanical lifet20000
SCPD fuseA10000
Terminal size top/ bottom for cable and busbarmm225
Tightening torqueN*m2
Mounting On DIN rail EN60715 (35mm) by means of fast clip device
Connection From top

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

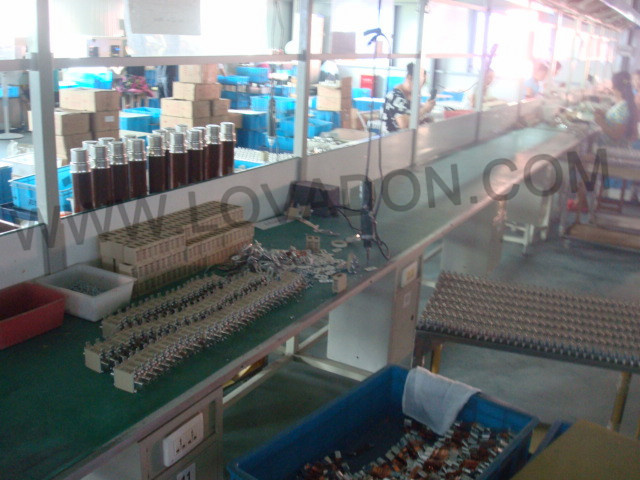

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
