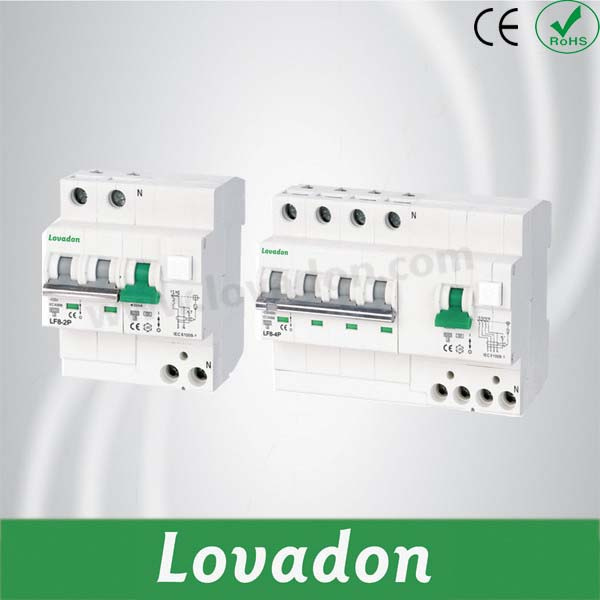

Good Quality Lf8 Series RCCB Residual Current Circuit Breaker

Name: Good Quality Lf8 Series RCCB Residual Current Circuit Breaker
Brand: all-electronics-online.com
SKU: 684077922
Availability: InStock
Rating: 5 (146 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LF8-2P LF8-4P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Certification:	CE
Breaking Capacity:	4.5 Ka 6ka 10ka
Operation:	Electrical Type / Magnetic Type
Installation:	DIN Type
Structure:	RCCB
Poles Number:	2p,4p

Product Description

1.Specifications
Type (wave form of the earth leakage sensed):AC,A
Thermo-magnetic release characteristic:B,C
Rated current In MCB+add-on RCD block:6, 10, 16, 20, 25, 32, 40, 50, 63A
Poles: 2P(1P+N),4P (3P+N)
Rated voltage Ue(V): 230/240
Rated sensitivity I n MCB+add-on RCD block:0.03, 0.1, 0.3
Rated residual making and breaking capacity I m:500A(In 40A) 630(In>40A)
Rated short-circuit capacity lcn:4,500/6,000A
Break time under I n : <0.1s
Rated frequency:50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp:6,000A
Dielectric TEST voltage at ind. Freq. for 1min:2kV
Insulation voltage Ui:500V
Pollution degree:2
Mechanical Features
Contact position indicator: Yes
Protection degree:IP20
Ambient temperature (with daily average 35 ): -5 ...+40
Storage temperation: -25 ...+70

Installation

Terminal connection type: Cable/U-type busbar/Pin-type busbar

Terminal size top/bottom for cable: 25mm2 18-3AWG

Terminal size top/bottom for busbar: 25mm2 18-3AWG

Tightening torque 2 N*m 18In-Ibs.

Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device

Connection: From top and bottom (for combined type)

From top (MCB+add-on RCD block)

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

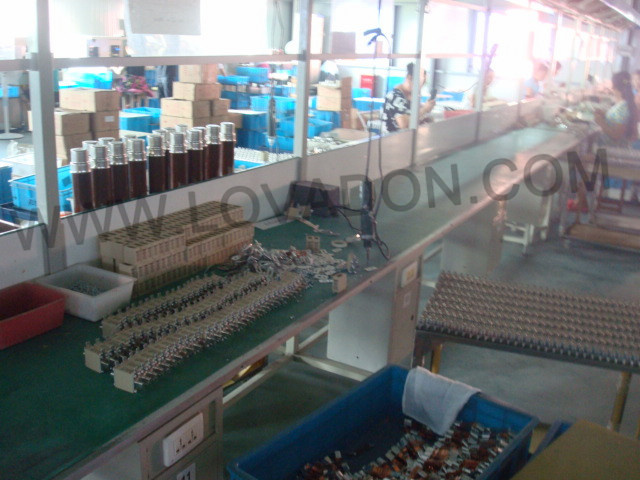

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
