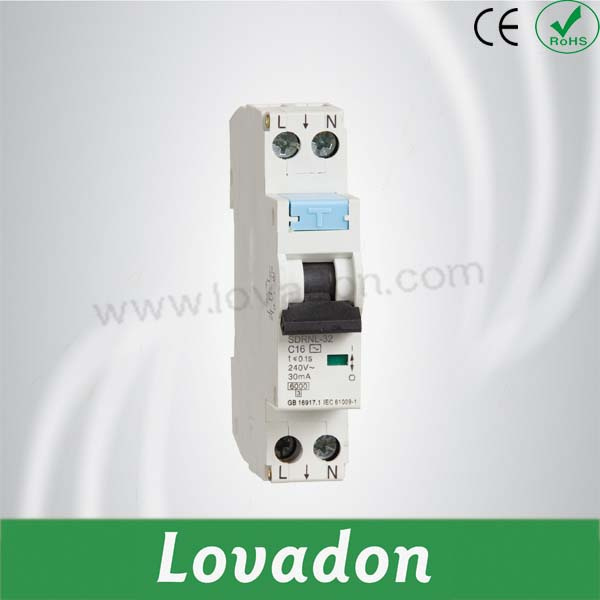

| Prod Model: |
LRNL-32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Breaking Capacity: |
10ka |
| Rated Current: |
1~63A |
| Mechanical Life: |
20,000 |
| Operqating Temperature: |
-25~+55 |
| Terminal Size: |
0.75~25mm2 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
CE |
| Poles Number: |
1,2,3,4 |
Product Description
10 KA according IEC 60947-2 and IEC 60947-4
Miniature Circuit Breakers (MCB) which can be used in low voltage electrical installations to protect conductors, switchgear, and electrical equipment in general against overload and short-circuit.
| | 1.Specifications | | |
| | Standard | | IEC/EN 60898-1 |
Electrical
features | Rated current In | A | 1,2,4,6,10,16,20,25,32,40,50,63 |
| Poles | P | 1,2,3,4 |
| Rated voltage Ue | V | 220/380 230/400 240/415 |
| Insulation voltage Ui | V | 500 |
| Rated frequency | Hz | 50/60 |
| Rated breaking capacity | A | 4500/6000/10000 |
| Rated impulse withstand voltage(1.2/50) Uimp | V | 6000 |
| Dielectric test voltage at ind. Freq. for 1min | kV | 2 |
| Pollution degree | | 2 |
| Thermo-magnetic release characteristic | | B,C,D |
Mechanical
features | Electrical life | t | 8000 |
| Mechanical life | t | 20000 |
| Contact position indicator | | Yes |
| Protection degree | | lP20 |
| Reference temperature for setting | | |
| of thermal element | C | 30 |
| Ambient temperature | C | From -5~+40 |
| (with daily average < 35 ) | | |
| Storage temperature | C | -25~+70 |
| Installation | Terminal connection type | | Cable /Pin-type busbar |
| Terminal size top /bottom for cable | mm2 | 25 |
| | AWG | 18~3 |
| Terminal size top/bottom for busbar | mm2 | 25 |
| | AWG | 18~3 |
| Tightening torque | N*m | 2 |
| | ln-Ibs | 18 |
| | | |
| Mounting | | On DIN rail EN 60715(35mm)by means fast clip device |
| Connection | | From top and bottom |
Product Description
Technical Data
Electrical Features
Type (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: B, C
Rated current In: 6, 10, 16, 20, 25, 32, 40A
Poles: 1P+N
Rated voltage Ue: 230/240V
Rated sensitivity In: 0.01, 0.03, 0.1, 0.3A
Rated residual making and breaking capacity Im: 500A
Rated short-circuit capacity lcn: 4, 500/6, 000A
Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 300V
Pollution degree: 2
Mechanical Features
Electrical life: 2, 000
Mechanical life: 2, 000
Contact position indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation
Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 16mm2 18-5AWG
Terminal size top/bottom for busbar: 16mm2 18-5AWG
Tightening torque 2.0 N*m 11In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top
