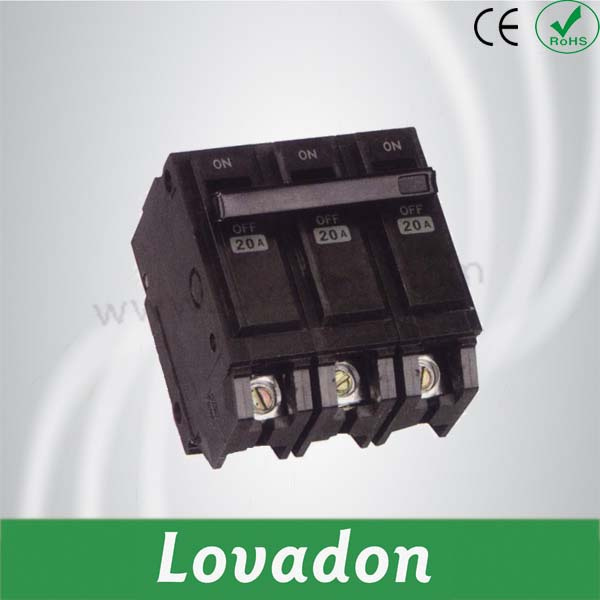

Good Quality Lthql 3 Pole Miniature Circuit Breaker

Name: Good Quality Lthql 3 Pole Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 774187845
Availability: InStock
Rating: 4.7 (148 reviews)

Price:	US $ 2.4-3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Lthql
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Breaking Capacity:	10ka
Rated Current:	1~63A
Mechanical Life:	20,000
Operqating Temperature:	-25~+55
Terminal Size:	0.75~25mm2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CE
Poles Number:	1,2,3,4

Product Description

1) BH series miniature circuit breaker has characteristic of small size, light weight, novel structure and excellent performance, They are mounted in the illuminating distribution board and used in guesthouse, block of flats, high buildings, squres, airports, rail way station, plants and enterprises etc, in ACcircuits220 V(single pole)up to 415V(3 pole)50Hz for protection of overload short circuit and for circuit change-over in lighting system, Braking capacity is 3kA
2)Product parameters:
1. Number of poles: 1P, 2P, 3P
2. Rated current(A): 6, 10, 16, 20, 25, 30, 40, 50, 63, 70, 80, 90, 100
3. Breaking capacity(A): 3000
4. Rated voltage(V)110/220(1P), 240/415(2P), 415(3P)
5. Rated frequency: 50/60Hz
6. Lectrical life: No less than 6000 operation
7. Mechanical life: (O-C)no less than16000 operation

Type	BH
Number of poles	1P, 2P, 3P
Rated Current(A)	6, 10,16, 20, 25, 30, 40, 50, 63, 70, 80, 90,100A
Breaking Capacity(A)	6000
Rated Voltage(V)	110/ 220V (1P); 240/ 415V (2P); 415V (3P)
Electrical Life	≥6000
Mechanical Life	≥16000

Specification of BH Circuit Breaker
Product Name:	Mini Circuit Breaker
Product Type:	BH
G.W (KGS) :	29
N.W (KGS) :	28
QTY/CTN-1P(PCS) :	240
QTY/CTN-2P(PCS) :	120
QTY/CTN-3P(PCS) :	80
Package Size(cm) :	51.53236

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
