| Prod Model: |
GT02A1ENW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection Level: |
IP00 |
| Max. Current: |
10mA |
| Max. Voltage: |
12V AC/DC |
| Electrical Life: |
50,000 Cycles |
| Mechanical Life: |
1,000,000 Cycles |
| Circuit Board Layout: |
Keyswitch Without/ with Flxation Pins |
| Company Assurance System: |
ISO9001 & Ts16949 |
| Choice Of Fee: |
Liner,Soft Tactile,Click Tactile |
| Mounting Options: |
PCB with Pins, Metal Frame(No Pins) |
| Operating Force: |
60gf Max |
| Application: |
Computer,PCB Board,Game Controller |

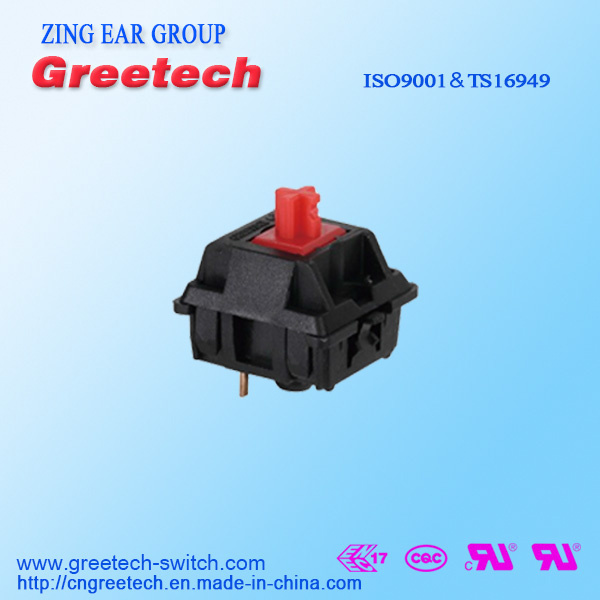

Product Description
Key Specifications/Special Features
. Desktop profile,0.60 inch(15.2mm)from PCB(no keycap)
. Choice of feel: linear,soft tactile,click tactile
. PCB or frame mount
. Long life 50 million operations
. LED,diode or jumper option
. 12V maximum AC/DC
. Current Rating: 10mA
. Insulation Resistance:<100M Ω at 100V DC

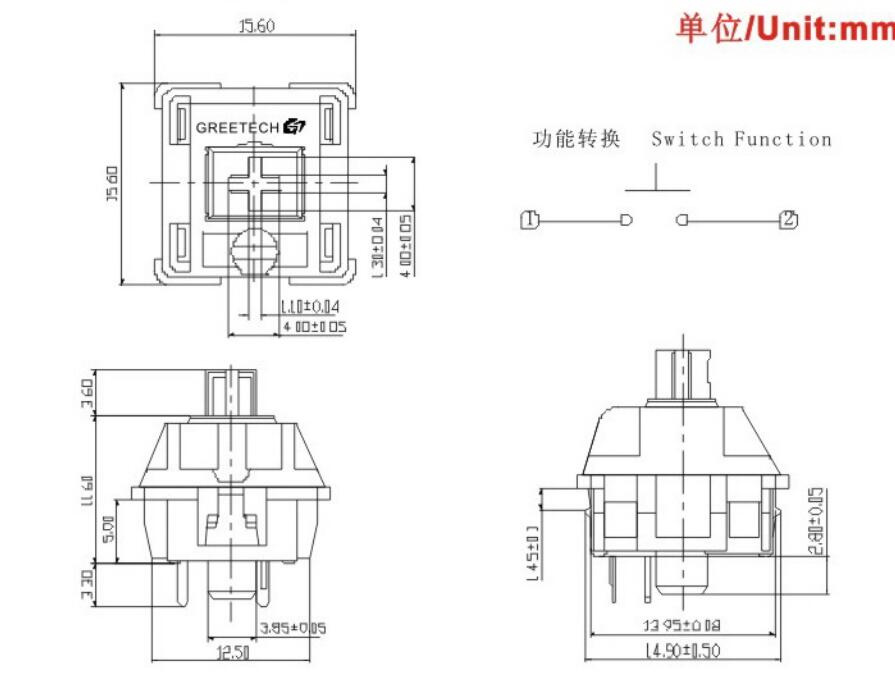

Drawing & Picture & Parameters
Parameters
| Electrical Characteristics | Rating | 12VDC/AC max. 10mA AC/DC max |
| Contact Resitance | 200MΩ max (25MΩ typical )(initial value) |
| Insulation Resistance | 100MΩ Min |
| Voltage Resistence | AC 100V (50-60Hz) 1Minute |
| Eletrical life | Over 50,000,000 cycles (Load) |
| Bounce Time | 400mm/s 5msec (operation speed at 400mm/spec) |
| Mechanical Reliability | Operating Force | See Detail Spec |
| Pre-travel | 2.0+/-0.6mm |
| Total Trave | 4.0+/-0.4 |
| Mechanical Life | Over 50,000,000 cycles (No Load) |
| Operating Temperature Range | (-40ºC~ + 80ºC) |
| Ambient Humidity | |
| Solder ability | 260ºC+/-5ºC 3S+/-0.5S |
| Soldering Heat Resistance | 260+/-5ºC 3S+/-1S |
| Soldering by hand | Use a 30 watts soldering iron for about 3S at 350 ºC while soldering |
| Trade Terms | 1.The price is based on FOB Shenzhen or Hongkong or EXW factory
2.MOQ:5000pcs
Payment:T/T payment,50% deposit before production, balance 50% before shipment |
| Certificates | ISO9001&TS16949
ENEC UL CUL &CQC
RoHS & Reach |
Solding Parameters
| 1.Flux Station |
| A.Flux-Fry type GR8 |
| B.Applied by foaming |
| C.Specific gravty-0.820 g/cm3 |
| 2. Conveyor Speed |
| A. 2.3 meters/min |
| 3. Pre-heat Temperature |
| A. +85ºC measured on top surface of PCB |
| 4. Solder |
| A.63/37 alloy |
| B. Dry wave-no oil |
| C.Approximate contact with wave-2 seconds |
| 5.Cleaning |
| A. Fry GR8 is non-hygroscopic flux and does not require cleaning |
B.
If cleaning is required on isolated areas such as finger connector,cold cleaning by hand with Alpua 564 is recommended,Care must be taken to avoid solvent entering the keymodle. |
Application:
Mainly applied on computer keyboards,cash registers,industrial equipment and Man-Machine interfaces.
Greetech Advantages:
. ISO9001 & TS16949 qualified

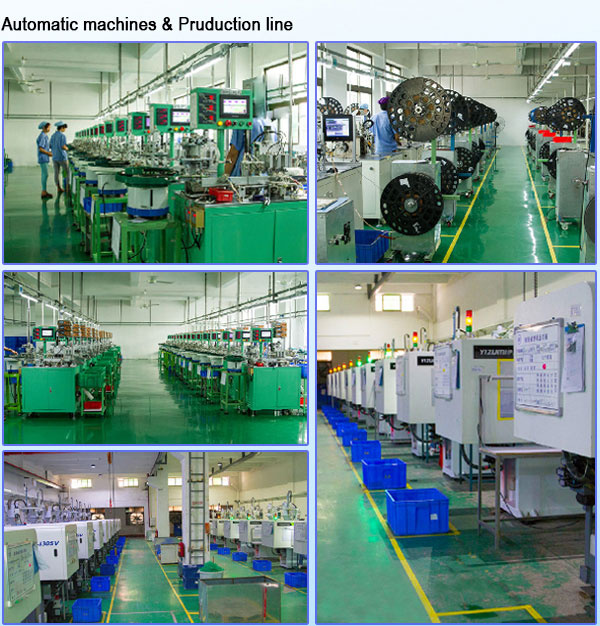

. Most products are produced & tested by automatics
. Automatic machines are designed and assembled by our own team
. Awarded as National Innovative Technology Company
. Strong R&D team, authorized over 30 patents
. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance

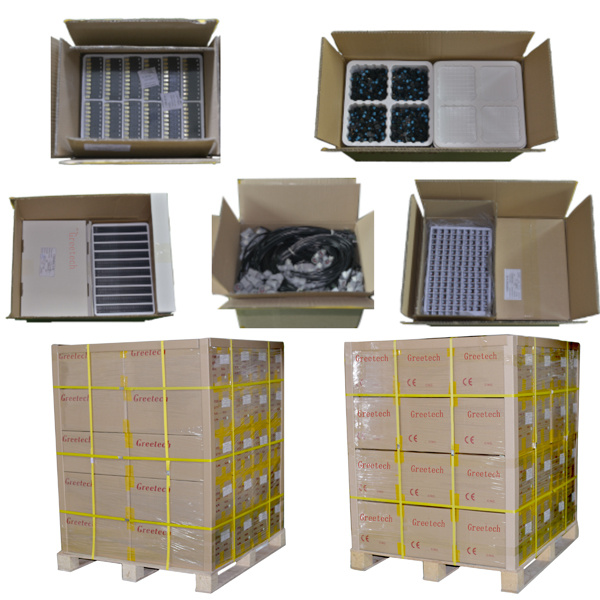

Packaging & Delivery:
. Pack out : 1000pcs/ctn
. Gross weight : about 9.5/kgs per master carton
. Production lead time : 2-4 weeks against order issue
. Sample lead time : 2-5days

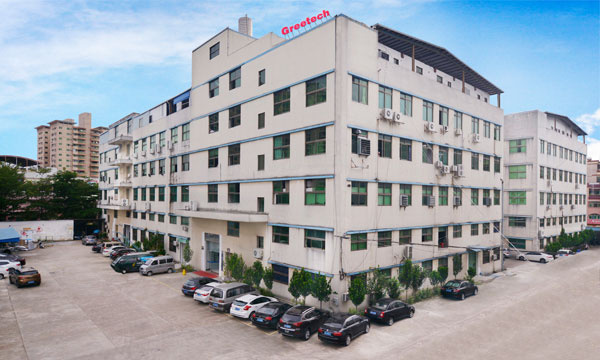

Factory Overview:
Business Partners:
Package:
Packaging Details:
| NO. | Greetech Product | Inner Box | Shipper Carton | MPQ |
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) |
| (pcs) | (pcs) | (pcs) | (Days) |
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 |
