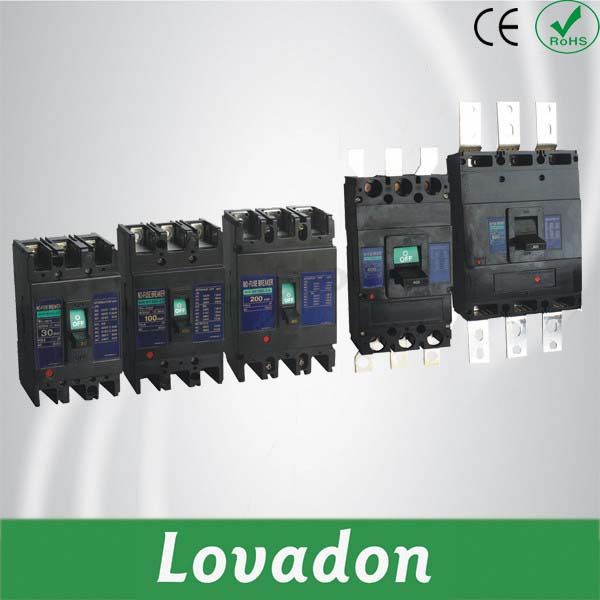

Good Quality NF Series Moulded Case Circuit Breaker MCCB

Name: Good Quality NF Series Moulded Case Circuit Breaker MCCB
Brand: all-electronics-online.com
SKU: 684093722
Availability: InStock
Rating: 4.7 (146 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NF30, NF100, NF200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material Of Plastic Body:	PC
Material Of Inside:	Pure Copper and 85% Silver Contact Point
Box:	1
Electric Current:	100A-1600A
Brand:	Lovadon OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CE
Poles Number:	1,2,3,4

Product Description

1.General

The rated insulation voltage for this series of circuit breaker is 690V,the rated operating voltage is 600V, the rated frequency

is 50Hz/60Hz.

2.Specifications

Rated current of Rated thermal Breaking capacity kA(virtual value)Icu/IcsPolesRated current In
frame Inm(A)current Ith (A)AC380V(A)
NF30-CS331.5/1.53P6(5) 10 16(15) 20 32(30)
NF50-CS NF60-CS6010/7.52P 3P 4P6(5) 10 16(15) 20 32(30) 40 50 63
NF50-SS NF60-SS6010/7.5
NF100-CSC10025/182P 3P 4P10 16(15) 20 32(30) 40 50 63(60) 80(75) 100
NF100-CSL10035/22
NF100-CSN10050/35
NF100-CSH10085/50
NF225-CSC22525/183P 4P 125 160(150) 180(175) 200 225(250)
NF225-CSL22535/22
NF225-CSN22550/35
NF225-CSH22585/503P 4P400 500 600 630
NF400-CSC40035/25
NF400-CSL40050/35
NF400-CSN40065/42
NF400-CSH400100/65
NF630-CSC63035/25
NF630-CSL63050/35
NF630-CSN63065/42
NF630-CSH630100/65
NF800-CSC800125/70700 750 800
NF800-CSL800135/75

1.General
The rated insulation voltage for this series of circuit breaker is 690V,the rated operating voltage is 600V, the rated frequency
is 50Hz/60Hz.
2.Specifications
Rated current of	Rated thermal	Breaking capacity kA(virtual value)Icu/Ics	Poles	Rated current In
frame Inm(A)	current Ith (A)	AC380V	(A)
NF30-CS	33	1.5/1.5	3P	6(5) 10 16(15) 20 32(30)
NF50-CS NF60-CS	60	10/7.5	2P 3P 4P	6(5) 10 16(15) 20 32(30) 40 50 63
NF50-SS NF60-SS	60	10/7.5	2P 3P 4P	6(5) 10 16(15) 20 32(30) 40 50 63
NF100-CSC	100	25/18	2P 3P 4P	10 16(15) 20 32(30) 40 50 63(60) 80(75) 100
NF100-CSL	100	35/22
NF100-CSN	100	50/35
NF100-CSH	100	85/50
NF225-CSC	225	25/18	3P 4P	125 160(150) 180(175) 200 225(250)
NF225-CSL	225	35/22
NF225-CSN	225	50/35
NF225-CSH	225	85/50	3P 4P	400 500 600 630
NF400-CSC	400	35/25
NF400-CSL	400	50/35
NF400-CSN	400	65/42
NF400-CSH	400	100/65
NF630-CSC	630	35/25
NF630-CSL	630	50/35
NF630-CSN	630	65/42
NF630-CSH	630	100/65
NF800-CSC	800	125/70		700 750 800
NF800-CSL	800	135/75		700 750 800
