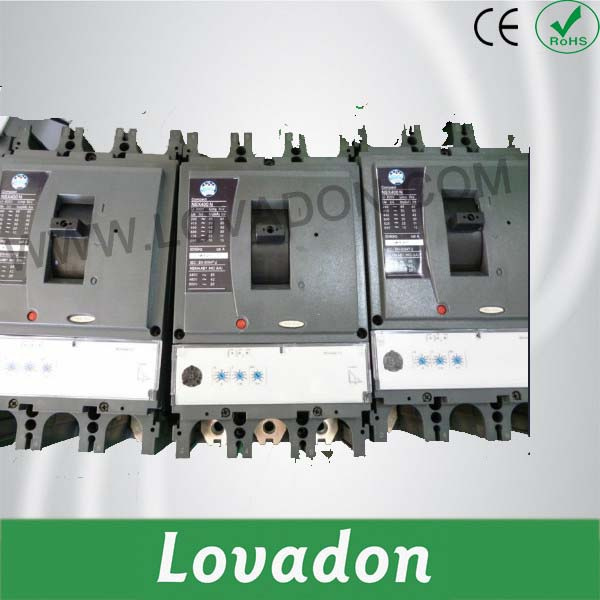

Good Quality Nsx MCCB Moulded Case Circuit Breaker

Name: Good Quality Nsx MCCB Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 766234415
Availability: InStock
Rating: 4.5 (41 reviews)

Price:	US $ 10-15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NSX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material Of Plastic Body:	PC
Current:	100A-1600A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CE
Poles Number:	1,2,3,4

Product Description

NSX Moulded Case Circuit Breaker NSX Moulded Case Circuit Breaker NSX Moulded Case Circuit Breaker

Model	Inm (A)	In (A)	Ue (V)	Ui (V)	Icu (KA) AC380V	Ics(%Icu)	Overall dimension			Installation dimension			Operating Performance(times)
							L	W 3P/4P	H	A	B	Φd	Power-on	Power-off
NSX-100N	100	25,40,50, 63,80, 100	690	750	25	75%	161	105/140	86	35	125	2-Φ6	1500	8500
NSX-100H					70	75%
NSX-100L					150	75%
NSX-160N	160	125,160	690	750	36	75%	161	105/140	86	35	125	2-Φ6	1000	7000
NSX-160H					70	75%
NSX-160L					150	75%
NSX-250N	250	200,225,250	690	750	36	75%	161	105/140	86	35	125	2-Φ6	1000	7000
NSX-250H					70	75%
NSX-250L					150	75%
NSX-400N	400	350,400	690	750	45	75%	255	140/185	110	45	200	4-Φ6	1000	4000
NSX-400H					70	75%
NSX-400L					150	75%
NSX-630N	630	500,600	690	750	45	75%	255	140/185	110	45	200	4-Φ6	1000	4000
NSX-630H					70	75%
NSX-630L					150	75%
NSX-1250N	1250	800,1000,1250	690	750	50	75%	327	210	147	199	200	4-Φ6.5	1000	4000

2. Work & Install Circumstance

2.1 Altitude of the installation place shall not exceed 2000m.
2.2 Circumstance temperature shouldn't be higher than +40ºC(+45ºC for marine type) or lower than -5ºC average temperature of 24h shall not exceed +35ºC.Relative atmosphere humidity shall not exceed 50% when circumstance temperature is at 40ºC, relative humidity could be higher if temperature drops, the average humidity of the most humid month shall not exceed 90%, in the meantime, average temperature of this month shall not be lower than +25ºC, condensation on product surface due to temperature changing should be taken into consideration as well.
2.3 Working circumstance of the product shall not contain any explosive, metal corrosive or conductive
media.
2.4 Vertical inclination against the installation surface should not exceed 5°.
2.5 Working area ought to be rainproof and doesn't contain too much amount of vapor in air.
2.6 Working area mustn't be shaky.
2.7 Install type: III
2.8 Pollution class: 3
2.9 There are two basic install methods: vertical connecting & horizontal connecting.
2.10 There are two wiring methods: upper wiring & lower wiring.
2.11 Breaker can be defined as fixed type circuit breaker & plugin circuit breaker.
