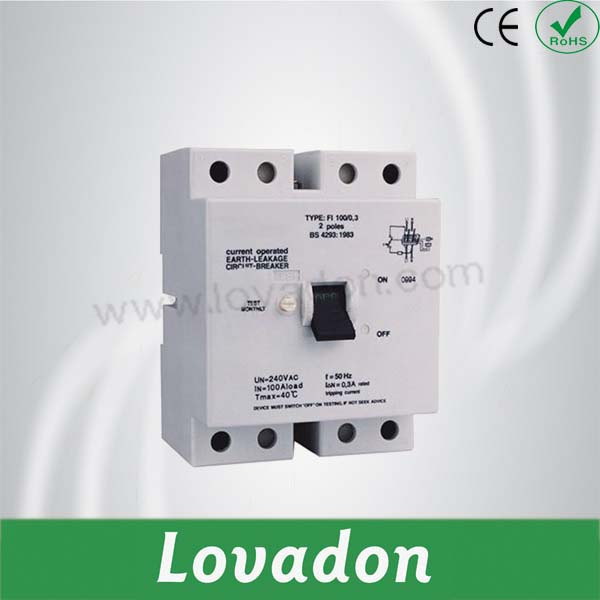

Good Quality Nt40 Residual Current Circuit Breaker RCCB

Name: Good Quality Nt40 Residual Current Circuit Breaker RCCB
Brand: all-electronics-online.com
SKU: 774187805
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	US $ 6-7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Nt40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Breaking Capacity:	10ka
Rated Current:	1~63A
Mechanical Life:	20,000
Operqating Temperature:	-25~+55
Terminal Size:	0.75~25mm2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CE
Poles Number:	1,2,3,4

Product Description

Miniature Circuit Breakers (MCB) which can be used in low voltage electrical installations to protect conductors, switchgear, and electrical equipment in general against overload and short-circuit.

Rated voltage Un	230/400V
Rated In	6-63A
Rated frenquency	50Hz
Energy limiting class	3
Tripping characteristic	B,C,D
Cross-section of connecting lead	1-25mm2
Isolating class	B
Mounting on the rall	EN60715(EN50022)
Build-in width	18mm/pole
Standards	IEC 60898, EN 60898
Certificates	CE,CB,SEMKO,RoHS

Construction and Feature:
-Provides protection against earth fault/leakage current and function of isolation.
-High short-circuit current withstand capacity
-Application to terminal and pin/fork type bulbar connection
-Fire resistant plastic parts endures abnormal heating and strong impact
-Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
-Independent of power supply and line voltage, and free from external internal interference voltage fluctuation.
Type: Circuit Breaker
Arc-extinguishing Medium: Air
Structure: Earth Leakage Circuit Breaker
Breaking Capacity: Low Voltage Circuit Breakers
Speed: Normal Type Circuit Breaker
Operation: Electric Type, Manual Type.
Residual current characteristic: AC
Pole No. 2, 4
Rated making and breaking capacity: 630A
Rated current (A): 25, 40, 63
Rated voltage: 230/400V AC
Rated Frequency: 50/60Hz
Rated Residual operating current IΔ N (mA): 30, 100, 300, 500
Tripping time: 100ms(depending on specifications 5XIΔ N400ms)
Minimum value of rated making and breaking capacity (Im): 1KA
Ambient temperature: -5 C~+55 C
Climatic resistance: 55 C/28 cycles
Vibration resistance: Minimum 5g 30min, 0~8Hz
Life expectance: At least 10, 000 operations
