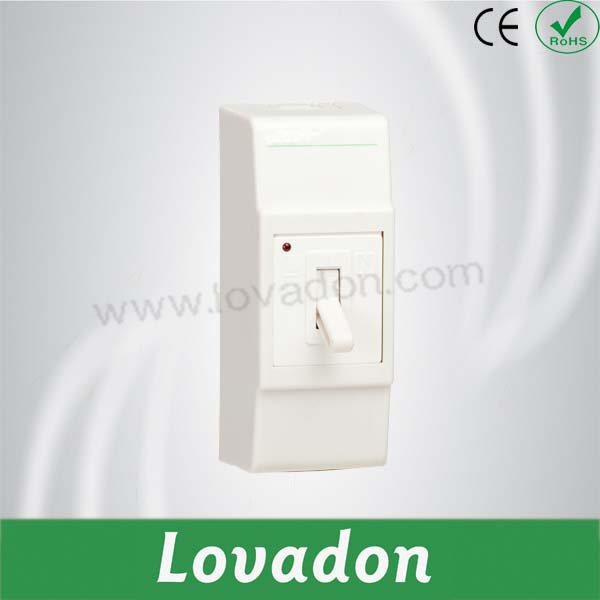

Good Quality Nt50 Miniature Circuit Breaker

Name: Good Quality Nt50 Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 773622815
Availability: InStock
Rating: 4.8 (120 reviews)

Price:	US $ 2-2.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NT50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Breaking Capacity:	10ka
Rated Current:	1~63A
Mechanical Life:	20,000
Operqating Temperature:	-25~+55
Terminal Size:	0.75~25mm2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CE
Poles Number:	1,2,3,4

Product Description

Miniature Circuit Breakers (MCB) which can be used in low voltage electrical installations to protect conductors, switchgear, and electrical equipment in general against overload and short-circuit.

Rated voltage Un	230/400V
Rated In	6-63A
Rated frenquency	50Hz
Energy limiting class	3
Tripping characteristic	B,C,D
Cross-section of connecting lead	1-25mm2
Isolating class	B
Mounting on the rall	EN60715(EN50022)
Build-in width	18mm/pole
Standards	IEC 60898, EN 60898
Certificates	CE,CB,SEMKO,RoHS

1.Specifications
Fuse link				Fuse base
Type	Rated current (A)	Rated voltage (V)	Weight (kg)	Type	Rated current (A)	Weight (kg)
NT00C	2-100	500,600	0.15	Sist 101	160	0.2
NT00	4-160	500,600	0.15	Sist 160	160	0.2
NT0	6-125	500,600	0.2	Sist 160	160	0.32
NT1	160-224	500,600	0.36	Sist 201	250	0.8
NT2	250-400	500,600	0.65	Sist 401	400	1.2
NT3	315-630	500,600	0.85	Sist 601	630	1.5
NT4	800-1000	500,600	1.95	Sist 1001	1000	3.45

Product Description
Provides protection against Short-circuit/Overload current and function of isolation.
High breaking current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
Independent of power supply and line voltage, and free from external interference, voltage fluctuation

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
