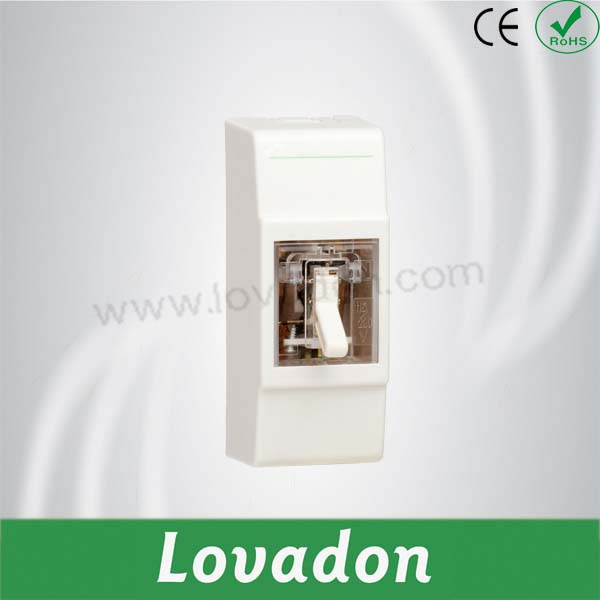

Good Quality Nt50 Series Miniature Circuit Breaker

Name: Good Quality Nt50 Series Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 773622865
Availability: InStock
Rating: 4.8 (56 reviews)

Price:	US $ 1.5-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NT50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Breaking Capacity:	10ka
Rated Current:	1~63A
Mechanical Life:	20,000
Operqating Temperature:	-25~+55
Terminal Size:	0.75~25mm2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CE
Poles Number:	1,2,3,4

Product Description

Miniature Circuit Breakers (MCB) which can be used in low voltage electrical installations to protect conductors, switchgear, and electrical equipment in general against overload and short-circuit.

Rated voltage Un	230/400V
Rated In	6-63A
Rated frenquency	50Hz
Energy limiting class	3
Tripping characteristic	B,C,D
Cross-section of connecting lead	1-25mm2
Isolating class	B
Mounting on the rall	EN60715(EN50022)
Build-in width	18mm/pole
Standards	IEC 60898, EN 60898
Certificates	CE,CB,SEMKO,RoHS

Specifications
Number of poles(p):2P
Rated current(A):6, 10, 16, 20, 25, 32, 40, 50, 63
Rated voltage(V):230/400
Breaking capacity(A):3000-6000

Number of poles	2P
Rated current(In)	6, 10, 16, 20, 25, 32, 40, 50, 63
Tripping curve	B,C,D
Rated frequency	50/60Hz
Rated voltage	230/400V
Mechanical life	10000
Installation temperature	no obvious impact and vibration
Utilization category	A
Rated limiting short-circuit current	3000-6000

Product Description
Provides protection against Short-circuit/Overload current and function of isolation.
High breaking current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
Independent of power supply and line voltage, and free from external interference, voltage fluctuation
