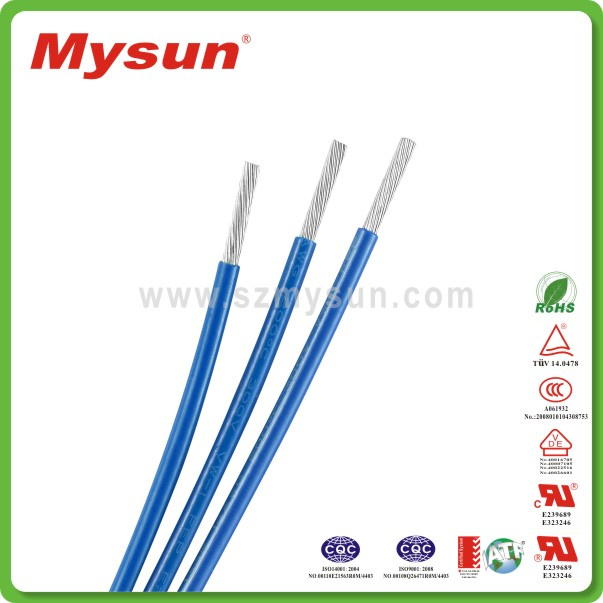

Good Quality UL Certificated PTFE Wire PTFE Insulated Wire

Name: Good Quality UL Certificated PTFE Wire PTFE Insulated Wire
Brand: all-electronics-online.com
SKU: 833339315
Availability: InStock
Rating: 4.3 (29 reviews)

Price:	US $ 0.1-0.14/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL1180
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	Teflon
Certification:	CSA, Ts16949
Sheath Material:	Teflon FEP PFA PTFE ETFE
Range Of Application:	Home Appliance,LED,Metro
Brand:	Mysun

Product Description

Specifications:

Nominal voltage: 300V

Temperature range: 200C

Standard: UL 758

Insulation: PTFE

Conductor: tinned copper,nickel plated copper,silver plated copper

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
32	7/0.08	0.24	0.33	0.90	563	610/2000
30	7/0.10	0.30	0.33	0.96	361	610/2000
28	7/0.12	0.36	0.33	1.02	227	610/2000
26	7/0.16	0.48	0.33	1.14	143	610/2000
24	7/0.20	0.60	0.33	1.23	89.3	610/2000
22	19/0.15	0.75	0.33	1.41	56.4	305/1000
20	19/0.185	0.93	0.33	1.59	35.2	305/1000
18	19/0.235	1.17	0.35	1.87	22.2	305/1000
16	19/0.30	1.50	0.35	2.20	14	305/1000
14	19/0.37	1.85	0.35	2.55	8.78	305/1000
12	19/0.47	2.35	0.35	3.05	5.53	305/1000
10	37/0.43	3.00	0.35	3.70	3.476	305/1000

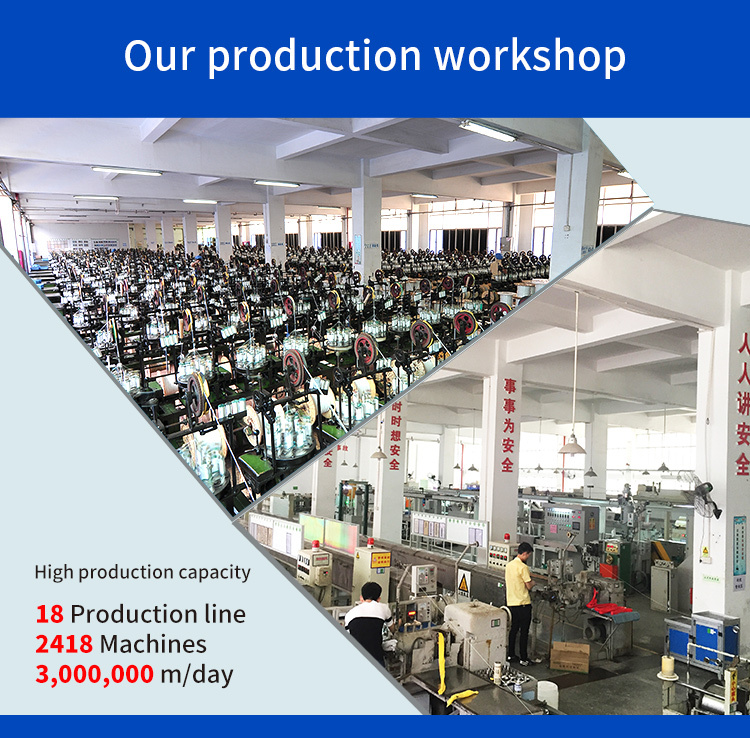

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
