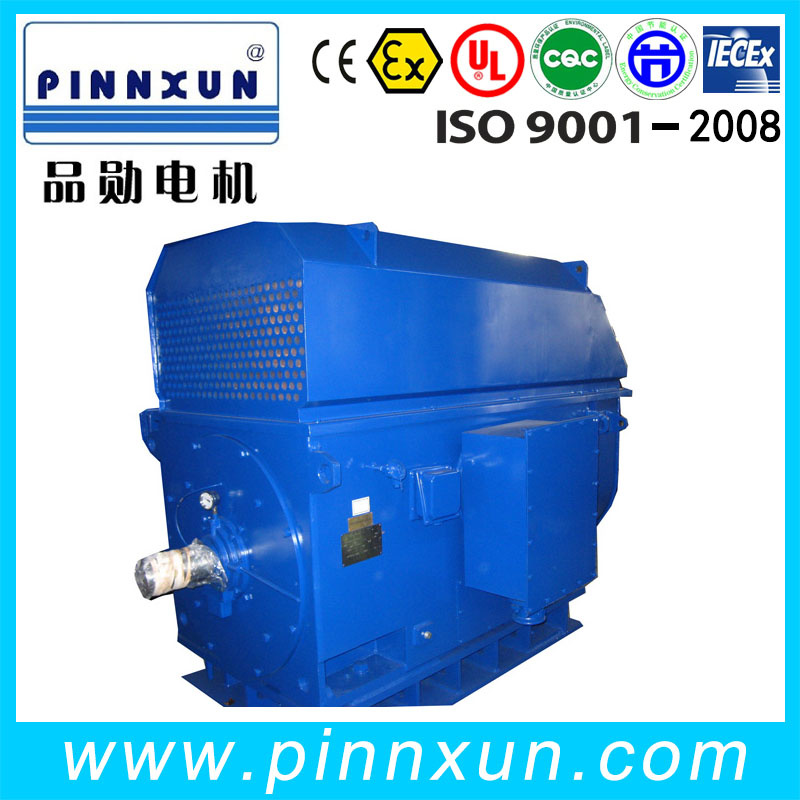

GOST Standard High Voltage Three Phase Asynchronous Motor
| Price: |
US $ 3200-100000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
DAZO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Squirrel Cage High Voltage Motor |
| Protect Feature: |
Enclosed |
| Structure: |
Asynchronous Motor |
| Phase: |
Three Phase |
| Color: |
Grey or Other |
| Shape: |
Linear |
| Scope Of The Center Height: |
H355~H1000 |
| Work Mode: |
S1 |
| Protection Class: |
IP55 |
| Insulation Class: |
F |
| Function: |
Driving |
| Number Of Stator: |
Three-Phase |
| Number Of Poles: |
2, 4, 6, 8, 10, 12 |
| Brand: |
Pinnxun |
| Certification: |
CE, ISO, CCC |
Product Description
Specifications
DAZO4 series three-phase asynchronous squirrel cage motor is designed for non regulation mechanism driving speed (pumps, fans)
DAZO series (GOST Standard) high votlage ac motor
Specifications Engine DAZO : The engines are designed to operate on AC , 50 Hz, 3000 V, 6000 V and 10,000 V.Dvigateli 3000 V have dimensions of 6000 V motors with saving moschnosti.Tok motors have 3000 V is twice more than the engine 6000 V V.Vid climatic performance motors voltage of 3000 V and 6000 V - U1 , T2.Vid climatic performance motors voltage of 10000 V - U1.Nominalny mode - continuous S1.Konstruktivnoe performance engines - IM1001.Sposob cooled engines - ICA01A61.Stepen protection - IP54, terminal box - IP55, external fan - IP21.Pusk engine line is ensured at the rated voltage and at lower mains voltage during start-up to 0,8 U nom.Dvigateli allow two consecutive starting from cold or one hot start . The interval between successive starts of at least three hours , the number of starts is 10000 for the period of operation and 500 for a god.Dvigateli has roller bearings with grease . Temperature control is carried out with thermocouples soprotivleniya.Soedinenie bearing motors drive by elastic muft.Izolyatsionnye the stator winding temperature class not lower than " B". Stator winding insulation is of thermosetting type "Monolith -2 ." The stator winding has six leads brought to four insulators in the terminal box . Stator windings - zvezda.Kontrol winding temperature and the stator core by six copper thermal laid down in the grooves statora.Elektrodvigateli DAZO allow both clockwise and counterclockwise rotation. diversion
Motor Performance
Power range:160kw-10000kw
Frame Size:355-1000mm
Rated Voltage: 3KV 6KV 10KV
Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP44 IP54 IP55
Cooling type;IC611 IC616
Ambient Temperature: -15°C~40°C
Altitude: not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
Packing & Shipping
Our Servies
WHY CHOOSE US
WHAT WE DO AT PINNXUN
- Stamping of lamination
- Rotor die-casting
- Winding and inserting - both manual and semi-automatically
- Vacuum varnishing
- Machining shaft, housing, end shields, etc
- Rotor balancing
- Painting - both wet paint and powder coating
- Motor assembly
- Packing
- Inspecting spare parts every processing
- 100% test after each process and final test before packing.
1. Order warranty: We have large production capacity, can ship in a short time.
2. Quality warranty: We test every motor one by one to ensure our quality before we deliver the
motors.
3. Shipping warranty: We choose the fastest and the most reliable forward agent to deliver our motors.
Delivery terms: Ex-works/FOB ,CFR and CIF.
4. Service after sale warranty: Our motors warranty time :12 months .and We have professional team
who work on service after sale to help you to solve your technical problem. We will try our best to
answer all your questions and improve the defect.
5. Replacement warranty: Once you find our motors is defected, we will replace it unconditionally.
|
No. |
Squirrel cage motor |
Y |
DAZO(YKK) |
YKS |
Y2 |
|
Slip ring motor |
YR |
YRKK |
YRKS |
/ |
|
1 |
Structure |
Box-type construction, made up of steel plates welded with each other |
Compact struction |
|
2 |
Cooling method |
IC01 or (IC11, IC21, IC31) |
IC611 or IC616 |
IC81W |
IC411 |
|
3 |
Natural ventilation, with top mounted protection cover |
With top mounted air-air cooler |
With top mounted air-water cooler |
|
|
4 |
Protection type |
IP23 |
IP44 or IP54 |
IP44 or IP54 |
IP54 |
|
5 |
Insulation |
F |
|
6 |
Mounting arrangement |
IMB3 |
|
7 |
Voltage available |
3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv |
|
8 |
Frequency available |
50HZ 60HZ 0-100HZ |
