| Prod Model: |
DL-GPS-015 |
| Mounting: |
Paste Sticking |
| Connector: |
SMA Gold Plated Male Head Straight |
| Cable: |
Rg174 |
| Color: |
Black |
| Size: |
102*66*21mm |
| Weight: |
150g |
| Usage: |
Car Antenna |
| Operating Wavelength: |
Medium Wave |
| Material: |
Al |
| Directionality: |
Directional Antenna |
| VSWR: |
1.5~2 |
Product Description

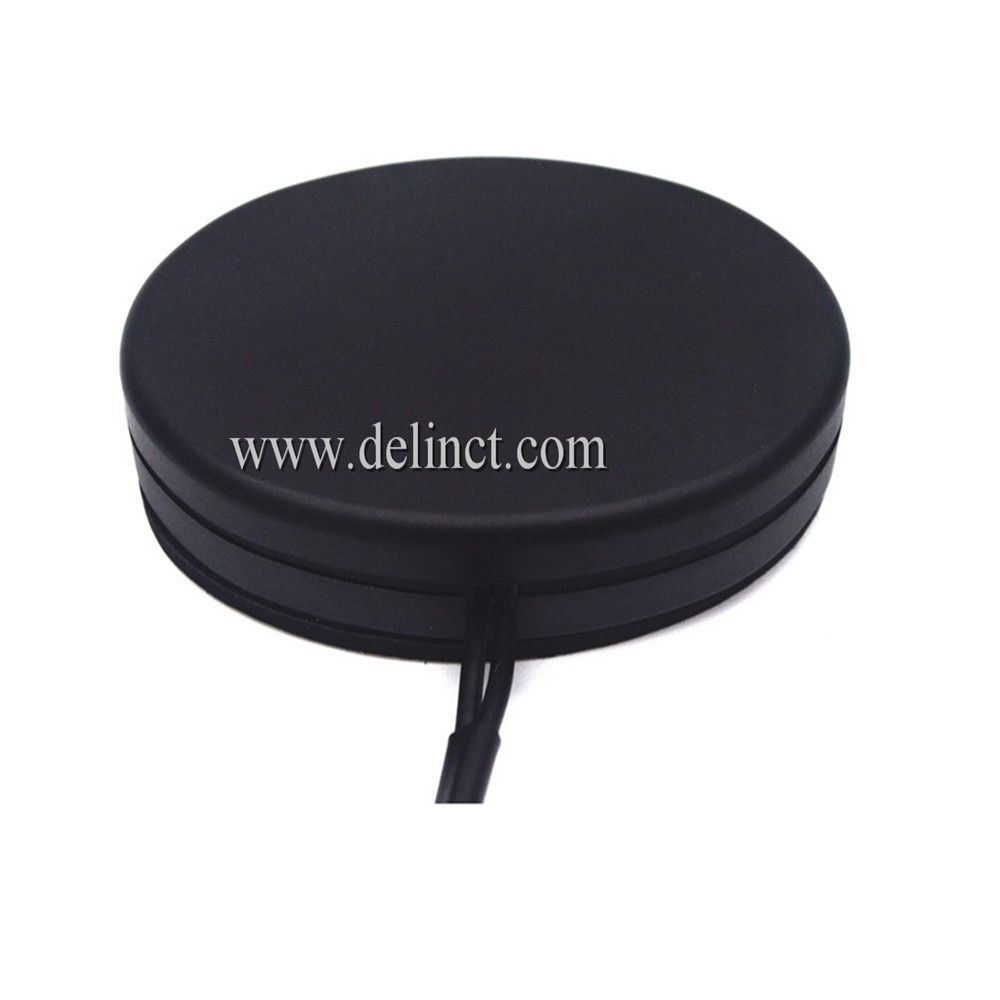

SummaryGPS&GSM integrated vehicle antenna of our company, can receive GPS satellite positioning signal and GSM network signal, is a kind of high gain, high sensitivity, universal GPS&GSM combined antenna work. It has the advantages of small volume, light weight, durable, high accuracy and sensitivity, low power consumption, high reliability and many other excellent properties that can be used with a variety of GPS&GSM receiver, widely used in vehicle navigation dispatching, vehicle tracking and monitoring, measurement and control etc.
Main technical characteristics of GPS&GSM composite antennaOur company GPS&GSM composite antenna adopts low profile antenna design scheme, GPS and GSM integration design, to achieve GPS and GSM share.
1 High gain: gain up to 28dB
2 High sensitivity: to solve the problem of weak signal in the car
3 Optimum anti-jamming: filtering performance
4 Stable performance: no loss of satellite
5 The positioning time is short: high precision
6 Excellent mechanical properties and manufacturing processes
7 Small in size and light in weight
8 High and low temperature resistance, corrosion resistance, good waterproof performance
9 Stable and reliable product quality
Product Apearance| Size | 102×66×21mm | Mounting | Paste sticking |
| Weight | <150gram | Connector | SMA gold plated male head straight |
| Color | Black | Cable | RG174 1.5m |
The properties of GPS antenna
| NO | (Item) | (Specifications) | PostEnvironmental Tolerance |
| 1 | (MHz)
Range of Receiving Frequency | 1575.42±5 | ±2.5 |
| 2 | (MHz)
Center Frequency | 1575.42 | ±3.0 |
| 3 | Band Width(MHz)
(Retum Loss≤-10dB) | ≥10 | - |
| 4 | V.S.W.R(in Center Frequency) | ≤2.0 | - |
| 5 | Gain (Zenith)(dBi typ) | 3 | ±0.5 |
| 6 | Axial Ratio(Db)
(with 70mm Square GND plan) | ≤4 | - |
| 7 | Polarization |
Right-Handed Circular | - |
| 8 | Impedance(Ω) | 50 | - |
Amplifier
| NO | (Item) | (Specifications) |
| 1 | frequency range (MHz) | 1575.42±5 |
| 2 | amplifier gain (dB) | 28±2 |
| 3 | standing-wave ratio (SWR) | ≤2.0 |
| 4 | noise factor | ≤2.0 |
| 5 | DC voltage (V) | 3~5V |
| 6 | direct current (mA) | ≤20mA |
| 7 | Out of band inhibition(dB) | ≤-25(fo+100MHz)
≤-40(fo-100MHz) |
GSM:The antenna indicators are as follows:| NO | Item | Specifications |
| 1 | frequency band(MHz) | 890~960
1720-1920 |
| 2 | directivity of antenna | Quasi dipole |
| 3 | gain(dB) | ≤2.0 |
| 4 | standing-wave ratio | ≤2.0 |
| 5 | normal impedance(Ω) | 50 |
| 6 | polarization | linear polarization |
| 7 | Radome Color | black (colour) |
Operating ConditionTemperature: -40ºC~+80ºC
Humidity:95%~100%
Storage:Temperature:-45ºC~+85ºC
Humidity:95%~100%
