| Prod Model: |
CCTR-811 |
| Warranty: |
5 Years |
| Export Markets: |
Global |
| Power: |
9-45V DC |
| GPS Sensitivity: |
-159dBm |
| SIM Card Frequency: |
850/900/1800/1900MHz |
| Color: |
Silver |
| Place Of Origin: |
Guangdong, China |
| Dimension: |
82mm*60mm*13mm |
| Weigh: |
80g |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description

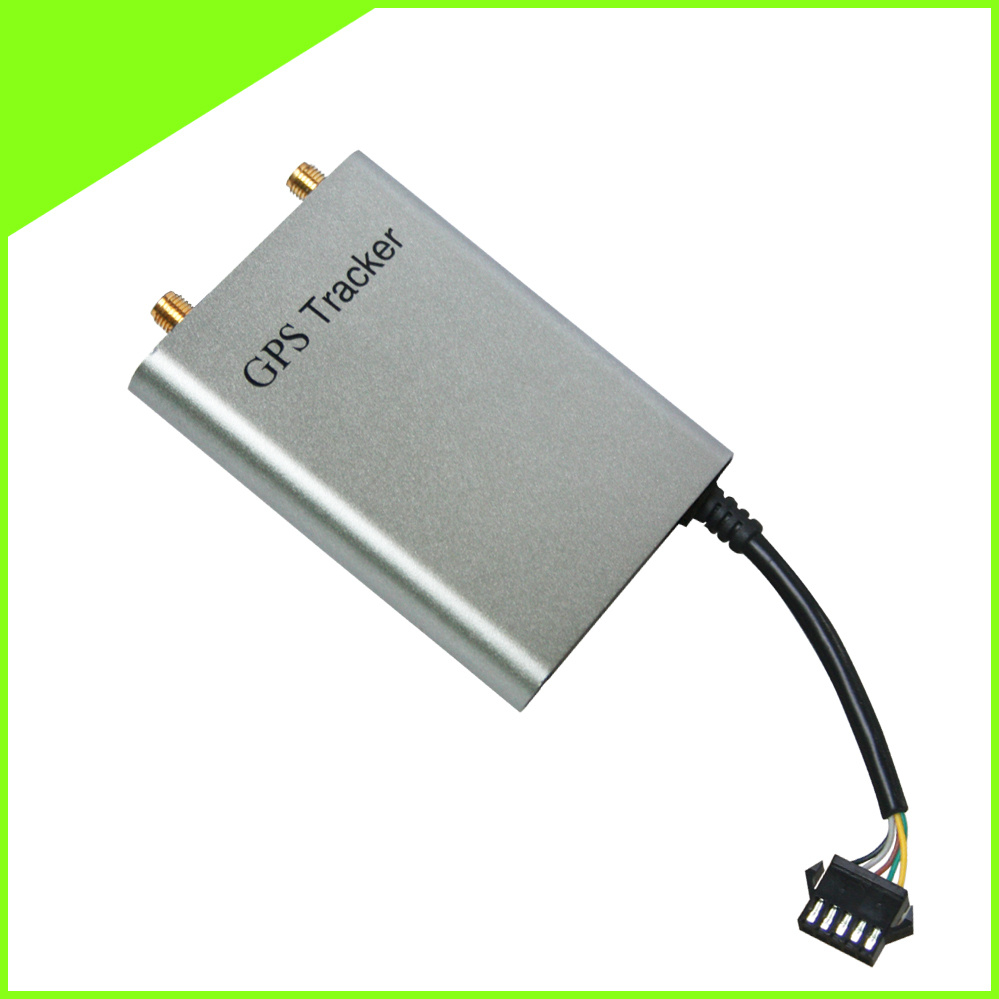

GPS gsm gprs tracker cctr-811 with Remote Fuel Engine Control
Main features:
Easy installation, 2-5 wires;
Auto download & config APN & GPRS setting;
Tracker SIM card balance checking by SMS;
App (Android & iPhone) / WeChat / Web / SMS / Wap locate;
Built in backup battery for power down alarm;
Built in Shock Sensor for Car Move and Shock Alarm;
Shock sensor control uploading to save car battery power;
Online Air Upgrade From Internet Server by GPRS;
Cell ID locate when no GPS (Indoor or underground);
u-Blox GPS module A-GPS fast locate;
Universal 4 GSM Band for Global & wide working voltage: 9-45V DC.
Primary Competitive Advantages:
- Top grade extra slim AL metal case for easy hidden
- Online software GPRS air upgrade
- Auto download & configure APN & GPRS, Also can be set by SMS
- Tracker SIM card money balance SMS checking
- Cell ID locate (base station locate) without GPS
- Life time no platform Service charge (Our free tracking platform)
- External GSM & GPS antenna make the signal better
- U-Blox GPS module has A-GPS function
- GPRS protocol can be changed to work with client platform
- Platform support iPhone & Android App locate / WeChat locate / SMS locate
Key Specifications/Special Features:
- Top grade extra slim AL metal case for easy hidden
- Online software GPRS air upgrade
- Auto download & configure APN & GPRS, Also can be set by SMS
- Tracker SIM card money balance SMS checking
- Cell ID locate (base station locate) without GPS
- Life time no platform Service charge (Our free tracking platform)
- Built in 4 Band GSM & u-Blox GPS module
- External GSM & GPS antenna make the signal better
- U-Blox GPS module has A-GPS function
- Device can be located by SMS or calling without server
- Report location by SMS with Google map link without server
- Report location by SMS with text description without server
- 4 level user role for dealer / distributor / fleet management / Single user
- Alarm can be send by SMS
- SMS report can be disable to save charge
- Built in rechargeable Li battery for backup & power down alarm
- Built in memory to record track without GSM network
- Upload interval is 30 seconds & can be set by user sms
- Stop uploading after the tracker stop moving 10 minutes or ACC turn off
- Uploading tracking is controlled by shock sensor or ACC
- report the last position when the tracker enter no GPS signal place
- Upload web or IP can be set by SMS
- Tracker status can be check by SMS
- Can Freeze car running on the platform (Remote turn off engine)
- External microphone for hearing voice in the car
- Can preset 3 phone number by SMS
- Can send SOS or alarm information to preset phone
- SOS &r alarm information can also send to platform
- Move alarm and shock alarm can replace car alarm function
- Open GPRS protocol to client for adding protocol to platform
- GPRS protocol can be changed to work with client platform
- Visit website can track the car or display the history tracking
- Platform support iPhone & Android App locate / WeChat locate / SMS locate
- History tracking can be saved on server over 6-12 months
- Suit for tracking car, bus, truck, taxi, school bus, transportation vehicle, moving equipment etc
Specification:| Dimension | 82mm*60mm*13mm | Weight | 80g |
| GSM Module | SIMCOM | GPS Module | U-Blox |
| GSM Frequency | 4 band (850/900/1800/1900MHz) | A-GPS | Available |
| GPS channel | 24 channels | Locate precision | 10-20 Meters |
| GPS Cold Start Time | 30 seconds | GPS Hot Start Time | 1-2 second |
| GSM Antenna | External | GPS Antenna | External |
| Working Voltage | 9-45V DC | Battery (CCTR-811) | 300mAh |
| Recharging Current | < 5V/100mA | Uploading Current | <200mA / 5V |
| Standby Current | < 10 mA | Working Temperature | -20 ºC to +55 ºC |
| Absolute Temperature | -35 ºC to +70 ºC | Storage Temperature | -40 ºC to +80 ºC |
Package include:
1pc* Main unit CCTR-811
1pc* Wiring
1pc* External SOS button
1pc* Microphone
1pc* GPS antenna
1pc* GSM antenna
1pc* CD Manual
Note:
1.Although the platform is free, but after receiving the ID to provide the activation
2.This GPS trackers need to use a Sim card for 850/900/1800/1900MHZ, not support 3G,4G sim card.
3.The package no include sim card,customers need to get it from your own country by yourself.
