GPS Module SMT Type Mtk Moddule Orginal
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
LS20037 |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
Product Description
Company ProfileShenzhen Universe Communication Tech. Limited was established in 2002. It's a high technology firm which is concentrated on R&D, producing, and selling GPS, BEIDOU, GLONASS, telecommunication,navigation,aviation and base station antenna.We are in possession of R&D capability of more 100 kinds of product categories per year. We not only customize various types of antennas according to customers' requirements ,but also provide complete technical support and a complete set of solutions.Both the quality and price of our products are competitive.We also deliver goods in time and provide perfect after sale service.
| Specification |
LS20037 is a complete stand-alone GPS smart antenna module, including embedded patch antenna and GPS receiver circuits, dedicated designed for cellular phones that are going to integrate GPS function. The module is powered by MediaTek GPS chip and can track up to 66 satellites at a time while providing fast time-to-first-fix, one-second navigation update and low power consumption. Besides, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment.
It is easy to install without both RF connector and coaxial cable that are needed in a separated active antenna. In other words, reduce the cost and size. Also, speed up the time to market by eliminating R&D efforts on RF matching and stability between separated GPS antenna and module. Furthermore, it can be directly powered by a lithium battery without any external voltage regulars. A built-in hardware enable pin provides the convenience to turn on/off the module. Therefore, LS20037 of miniature size and brilliant performance is the best choice to be integrated into your slimmest cellular phones. |
| Features |
- Slimmest RHCP patch antenna
- Optimal RF design for cellular phone
- Easy to install (SMT process capable)
- MediaTek high sensitivity solution
- Support 66-channel engine
- Fast TTFF at low signal level
- Support AGPS
- Built-in DC/DC converter to save power
- Up to 10 Hz update rate
- Capable of SBAS (WAAS, EGNOS, MSAS)
- Pin-to-pin compatible with LS20027 (SiRF solution), LS20057 (Qualcomm/ATHEROS solution)
|
| Application |
- Cellular phones with GPS function
- GPS personal tracker
- Mobile internet device with GPS function
|
Gps Receiver| Chip | MTK MT3329 |
| Frequency | L1 1575.42MHz, C/A code |
| Channels | Support 66 channels (22 Tracking, 66 Acquisition) |
| Update rate | 1HZ default, up to 10Hz |
| Acquisition Time | Hot start(Open sky) | <2s (typical) |
| Cold start(Open sky) | 35s(typical) |
| Position Accuracy | Autonomous | 3m(2D RMS) |
| SBAS | 2.5m (depends on accuracy of correction data) |
| Datum | WGS-84(default) |
| Max. Altitude | < 18,000m |
| Max. Velocity | <515m/s |
| Protocol Support | NMEA 0183 ver 3.01 | 9600bps(1), 8 data bits, no parity, 1 stop bits(default)
1Hz: GGA, GLL, GSA, GSV, RMC, and VTG |
Note 1: Both baud rate and output message rate are configurable.GPS Antenna| Antenna Type | Patch Antenna |
| Polarization | RHCP |
| Frequency Range | 1575.42MHz ± 1.023MHz (1) |
| Gain | 4dBic Typ. @zenith (1) |
| Axial ratio | Max 4.0dB @zenith (1) |
Note 1: This value is measured with the evaluation board and must be fine tuned when

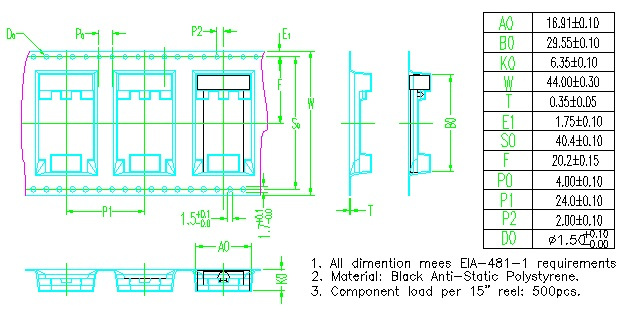

installed into your device. Please contact us for your antenna tuning.Reel Packing Information
