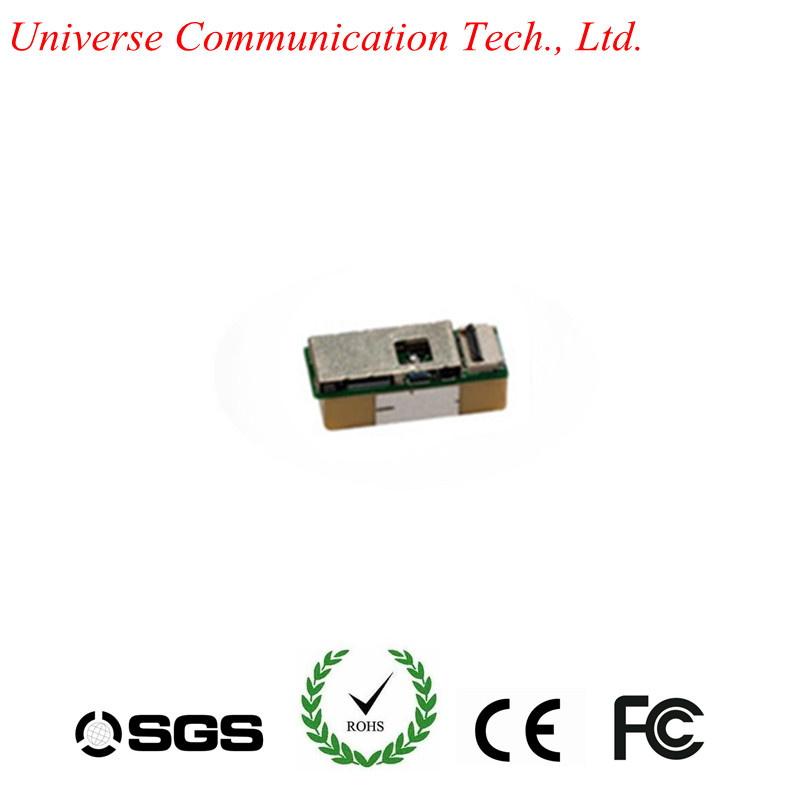

GPS Smart Antenna Modules, Including Embedded Patch Antenna and GPS Receiver Circuits
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |

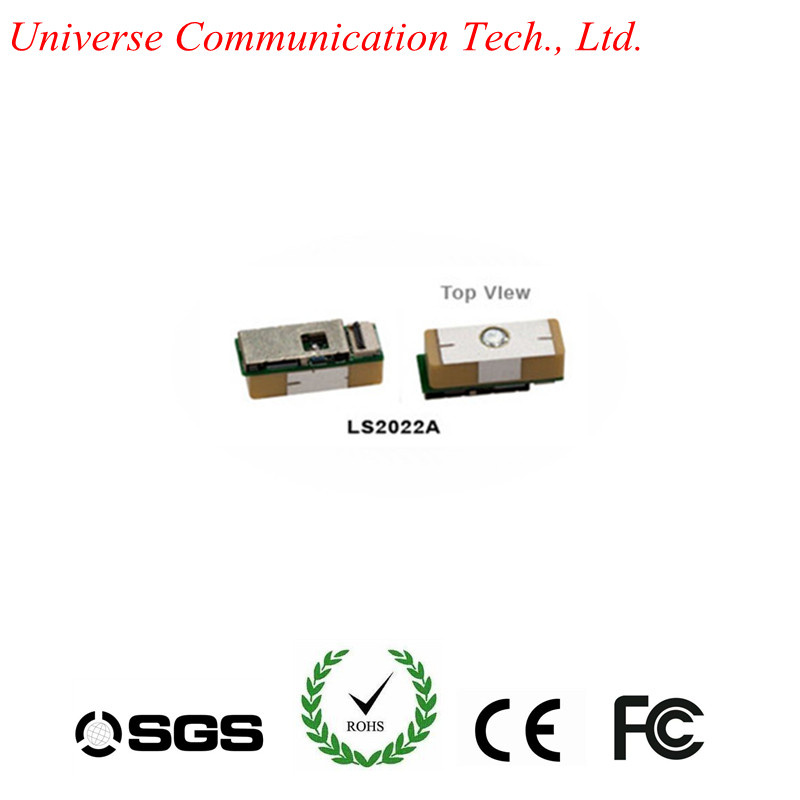

LS2022A |
| Sample Time: |
1-3 Days |
| Lead Time: |
3-5 Days |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Brand: |
Locosys |
Product Description
Company ProfileShenzhen Universe Communication Tech. Limited was established in 2002. It's a high technology firm which is concentrated on R&D, producing, and selling GPS, BEIDOU, GLONASS, telecommunication,navigation,aviation and base station antenna.We are in possession of R&D capability of more 100 kinds of product categories per year. We not only customize various types of antennas according to customers' requirements ,but also provide complete technical support and a complete set of solutions.Both the quality and price of our products are competitive.We also deliver goods in time and provide perfect after sale service.
| Specification |
| LS20229 series are complete stand-alone GPS smart antenna modules, including embedded patch antenna and GPS receiver circuits. The module is powered by SiRF Star IV, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. With SiRF CGEE (Client Generated Extended Ephemeris) technology, it reliably predicts satellite positions for 3 days that are stored in the on-board EEPROM and delivers CGEE-start time of less than 15 seconds under most conditions, without any network assistance. |
| Features |
- SiRF Star IV high sensitivity solution
- Support 48-channel GPS
- Fast TTFF at low signal level
- Built-in active jammer remover to track up to 8 CW jammers
- Embedded free CGEE technology to get faster location fix
- Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN) (supported in the future)
- Micro Power Mode (supported in the future)
|
| Application |
- GPS tracker
- Digital cameras and digital video recorder with GPS function
- Mobile internet device with GPS function
|
Gps Receiver| Chip | SIRF Star IV ,GSD4e-9333 |
| Frequency | L1 1575.42MHz,C/A Code |
| Channels | Support 48 channels |
| Update rate | 1HZ |
| Acquisition Time | Hot start(Open sky) | <1s (typical) |
| Cold start(Open sky) | 32s(typical) |
| <15s(typical),CGEE start |
| Position Accuracy | Autonomous | 3m(2D RMS) |
| SBAS | 2.5m(depends on accuracy of correction data) |
| Max. Altitude | <18,000m |
| Max. Velocity | <515m/s |
| Protocol Support | NMEA 0183 ver 3.0 | 4800bps, 8 data bits, no parity, 1 stop bits(default)
1Hz: GGA, GSA,RMC
0.2Hz:GSV |

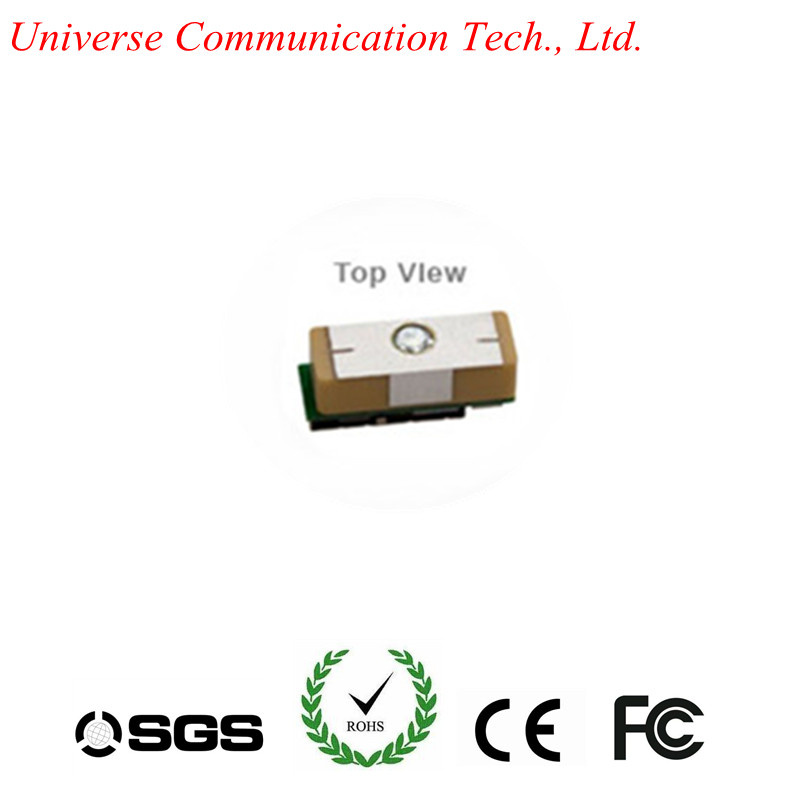

GPS Antenna| Model | LS20229-A |
| Antenna type | Patch antenna(3.5mm thickness) |
| Polarization | RHCP |
| Frequency Range | 1575.42MHz±1.023MHz |
| Gain | 3dBi Type@zenith |
| Axial ratio | Max 4.0dBi@zenith |
