GPS Time Synchronizer Cl-8009

Name: GPS Time Synchronizer Cl-8009
Brand: all-electronics-online.com
SKU: 694908152
Availability: InStock
Rating: 4.7 (126 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CL-8009
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
GPS And IEEE 1588.:	Stratum 2 (Itu-T G. 812: Type II)
Type:	GPS Antenna
Use:	Hand Held

Product Description

Features of Receiver
Receiver type: 50-Channel
GPS L1 C/A code,
High precision automatic
Survey-in timing mode
Tracking Capability: 16 Satellites
Sensitivity: Tracking -160dBm
Hot starts -157dBm
Cold starts -147dBm
Timing Accuracy: RMS 30 ns
99% < 60 ns
Granularity 21 ns
Compensated 15 ns
GPS Antenna: Active or passive

Introduction

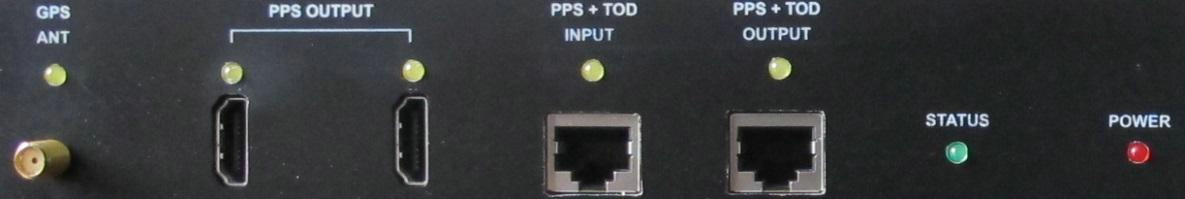

The CL-8009 GPS Time Synchronizer integrates high accuracy GPS time receiver module with a high stability OCXO crystal oscillator. Adopting CPLD technology and unique frequency/phase tracking algorithm, it provides multi-channel of time and frequency signals simultaneously (10MHz, 1PPS, TOD etc. ) Different physical/electrical interfaces are optional according to the customers requirement.
The CL-8009 is designed for applications with requirement on timing synchronization to supply high
Accuracy time and frequency reference signals.

Specifiations
Clock Source
GPS and IEEE 1588.
The two input sources could be switched according to preset priorities.
Time Output
Standard: Stratum 2 (ITU-T G. 812: Type II)
Accuracy: <1E-12 (Average over 24 hrs GPS lock)
Hold-over Accuracy: <2E-11 (24 hrs after GPS off, Δ T =2° C, Hold-over capability ≤ 1.5uS)
Power Supply
Power Supply: -48 VDC, AC/DC adapter is
Optional
Power consumption: ≤ 15W
Environmental Characteristics
Operating Temperature: -20° C to +50° C
Storage Temperature: -40° C to +85° C
Humidity: <95% non-condensing
Mechanical
Rack mountable 19" 1U, other sizes are optional

As a professional and famous manufacturer of GPS timing box and xDSL splitter (ADSL2+ & VDSL2 splitter & PSTN splitter & SHDSL splitter and Microfilter), CoreLogic is the certificated supplier for Telefornica, Nokia&Siemens, Alcatel-Lucent, UTstarcom, 3M, ADC/Krone, ZTE, HUAWEI Technology, Fiber home and etc...

Established in 1998, Beijing Corelogic Communication Co., Ltd.Focuses on developing telecommunication product with the most advanced communication technologies in the digital network, especially specilized in electronic components such as GPS timing box and network transformers and XDSL splitters.Our company stands on the grounds of the core values of honesty, transparency and integrity that have helped us to serve our clients better and build lasting relationships with them.

Moreover, Corelogic designs and sells a full range of high performance xDSL CPE&CO splitters.Corelogic Splitters are available in a variety of formats, including DSLAM boards, rack-mount boards, modules, and MDF splitters;And comply with all desired country and customer-specific requirements.As a famous manufacturer, we are the certificated supplier for France telecom, Telefornica, Nokia&Siemens, Alcatel-Lucent, UTstarcom, 3M, ADC/Krone, ZTE, HUAWEI Technology, Fiber home and etc...

Our range of products and services includes as below:
1, Electronic components (network transformer)
2, xDSL splitter for central office
3, xDSL splitter for CPE
4, ISDN network terminal (ISDN NT1, NT1 PLUS, ISDN adapter, ISDN telephone)
5, Line attenuator(simulate cable line attenuation as 100m, 200m, 300m, 500m.)
6, ADSL2+ handle tester,
7, VDSL2 handel tester
8, PON power meter
9, ADSL2+ & VDSL2 IP DSLAM within IU chassis
10, GPS timing box

Of course, we have two big modern factories in China mainland with about 2, 500 employees, and our products have steady quality and competitive price, in a words, our products have high performance-price rates.We can provide free samples for your test approval.

We are looking forward to establishiing business relationship with you in the near future.
