| Prod Model: |
BN-105B |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Model: |
Bn-105b |
Product Description

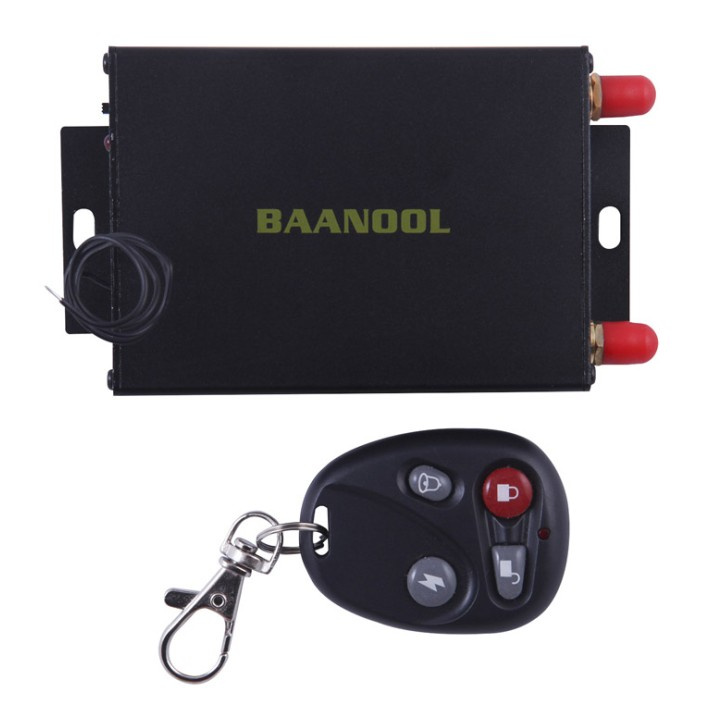

GPS tracker BN-105B supports remote support RFID, arm / disarm / lock / unlock the tracker
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
1.Function Introduction
1.1 GPS/LBS (location based service) double way tracking solution.
1.2 SMS/GPRS/Internet Network data transmission.
1.3 Configure by remote terminal, remote control vehicle.
1.4 Snapshoot photo automatically when alarm triggered
1.5 RFID.
1.6 Fuel level measurement, Oil leakage or theft alarm.
1.7 Vehicle Speed Detection.
1.8 Kilometragereport.
1.9 Tracking and monitoring by SMS, web server and mobile app.
2.Applications
Used widely for vehicle and other moving objects tracking and management.

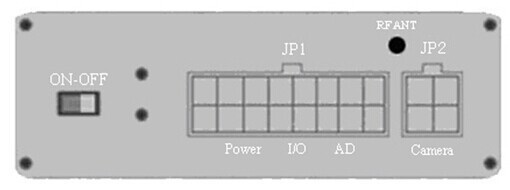

3. Hardware Description
(JP1 )16PIN harness port
(JP2 ) Camera port / RFID Port
4. Basic functions
1. Tracking by GPS and location base service both even in building, underground and garage
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or sms comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, SOS button ,Low battery alarm, Geo fence,Overspeed Alarm , Power off alarm
10 Engine -cut and restore alarm by SMS GPRS
11, Door, windows alarm get by SMS
12, Movement alert sensor
13, Free tracking GPRS software send you in CD package
14. With direction and heading value
15. Optional vibration sensor and fuel sensor
16. Optional camera
17 Support SD card function
5. Installation wiring diagram

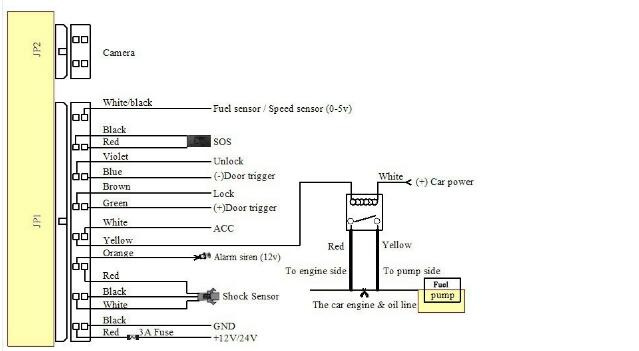

Unit installation wiring diagram
5.2.1.1.choose only one from vehicle Speed detection and fuel measurement.
5.2.1.2.For vehicle Speed detection, white with black wire directly connect to speed sensor signal wire of car gearbox.
5.2.1.3.For fuel measurement, white with black wire connect to fuel sensor signal wire.
5.3.SIM Card Installation
5.3.1 Use a tweezers or a sharp thing to touch the SIM CARD popup switch, the SIM CARD slot will pop up, take out the SIM card slot to load the SIM card, and then put the SIM card slot back to its original position after confirm the SIM card in the right place.
5.3.2 Please make sure that the SIM card is GSM network and able to execute the function of incoming calls display, no calls can be diverted and the PIN code is locked. The SMS format must be TXT format, and can't recognize the PDU format.
5.3.3 If need to save historical positions or positions when GSM not available, please insert SD card to its slot.
5.3.4 User need open the case to install the second internal SIM card
6.Function and Operation
6.1.Turn on device
6.1.1 Connect the positive (red) and negative (black) wire to 12V or 24V car power, wait for 1 minute after connecting power to wait tracker works normal, and then turn on the backup battery switch

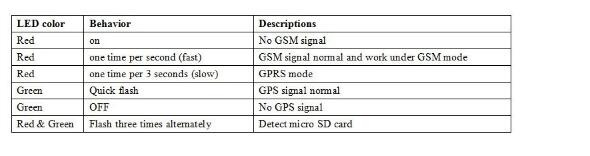

6.2.GSM/GPS LED Indicator
6.46.Web platform and app for mobile phones
6.46.1 Web based platform www.gpstrackerxy.com. Configuration IP: 202.104.150.75 Port: 9000. Or configure corresponding IP according the server you choose.
6.46.2 Please check chapter 7.42 GPRS settings for more details.

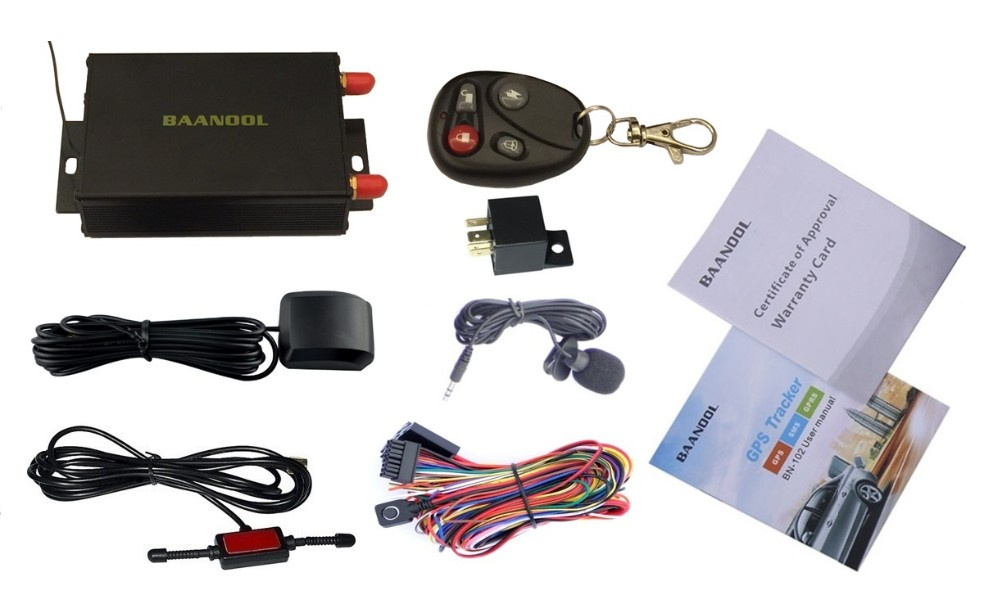

Package & accessories
1pc* Original retail box1pc* GPS Tracker BN105B1pc* Remote controller1pc* GPS Antenna 3 meters long
1pc* GSM Antenna 2 meters long1pc* Microphone
1pc* Harness 16PIN 1pc* Relay1pc* User Manual
