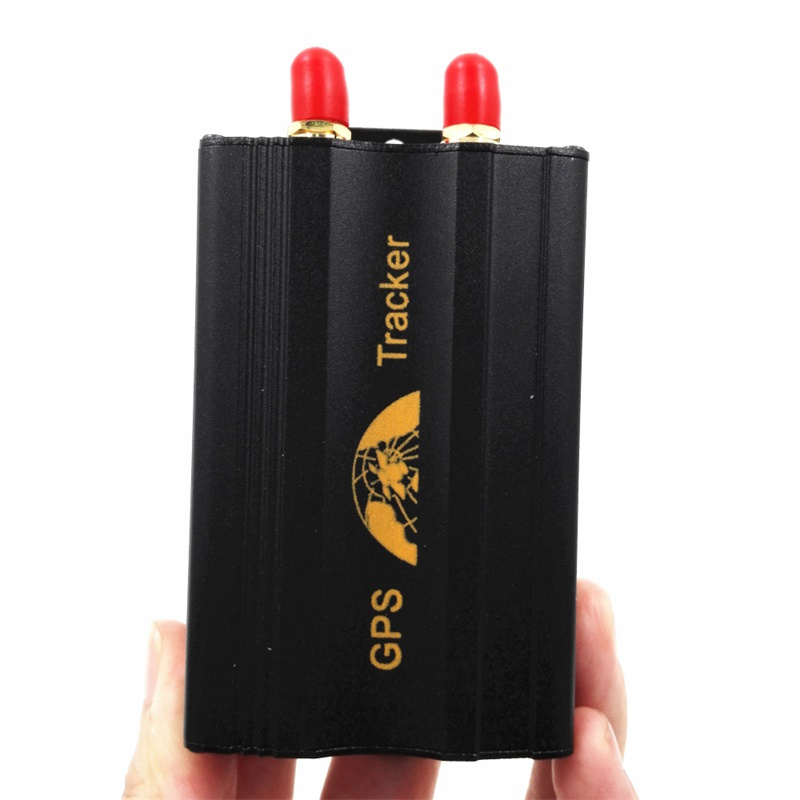

GPS Tracker GSM GPS Tk103A+ Car GPRS SMS Tracking Device Car Safety and Security System

Prod Model:	TK103A+
Band:	850/900/1800/1900MHz
GPS Chip:	Sirf3 Chip
GPS Accuracy:	<5m
GPS Sensitivity:	-159dBm
Type:	GPS Tracker
Use:	Automotive
Screen Size:	No Screen

Product Description

GPS tracker GSM GPS TK103A+ car GPRS SMS tracking device car safety and security system

Support :
Used widely for vehicle and other moving objects tracking.
Support both GPS & LBS (Location based service).
Support SMS/GPRS/Internet Network data transmission
Support GPRS on-line and GPRS re-connected automatically if GPRS drops
Support SMS / GPRS dual-mode switching
Support configuration by remote terminal.
Support for point-to-point, point to group, group-to-group monitoring.
Set multiple functions of security, positioning, monitoring
surveillance,emergency alarms and tracking in its entirety.

Specifications

Content	Specs.
Dim.	83mm X 54mm X 26mm
Weight	Approx. 120g
Network	GSM / GPRS
Band	850/900/1800/1900MHz or 900/1800/1900MHz
GPS chip	SIRF3 chip
GSM/GPRS module	Simcom SIM340d or Simcom SIM300d
GPS sensitivity	-159dBm
GPS accuracy	5m
Time To First Fix	Cold status 45sWarm status 35s Hot status 1s
Voltage of carpower system	12V - 24V
Battery Chargeable changeable	3.7V 800mAh Li-ion battery
Standby	80hours
Storage Temp.	-40° C to +85° C
Operation Temp.	-20° C to +55° C
Humidity	5%--95% non-condensing

Package Include:

1pc* GPS Tracker  GPS103A+/TK103A+
1pc* GPS Antenna  3 meters long
1pc* GSM Antenna  2 meters long
1pc* Plug 16 pin Harness
1pc* Relay
1pc* Microphone
1pc* User Manuals
