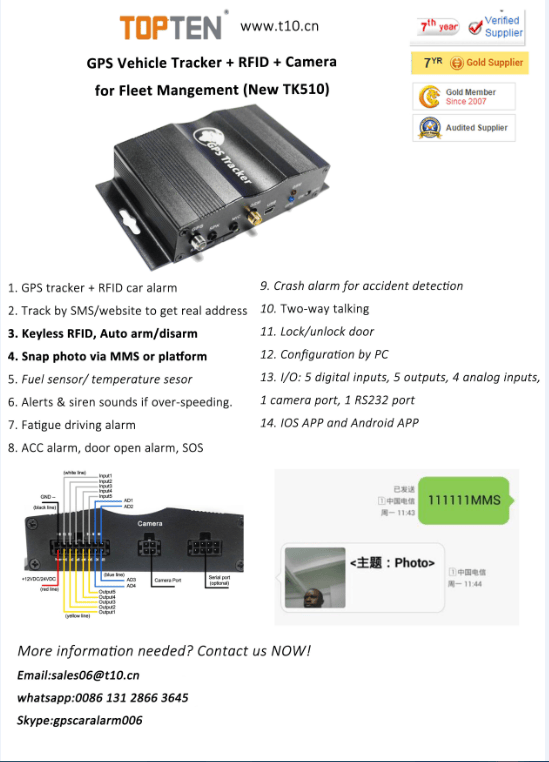

GPS Tracking System with RFID, Fuel Sensor, Camera, Two Way Talking Free (TK510-KW)
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
gps tracking system (TK510-KW) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
+9V ~ +35V/1.5A |
| Interface: |
5 Digital Inputs, 3 Negative and 2 Positive Trigge |
| Button: |
One Sos Button |
| Functions: |
Fleet Management/Tracking/Anti-Theft |
| GSM Module: |
Latest GPS Sirf-Star III Chipest |
| Backup Battery: |
850mAh |
| Features: |
Fleet Management Tracking |
| Support: |
RFID Function |
| LED: |
2 LED Lights to Show GPS/GSM Working Status |
| Memory: |
8MB |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Certification: |
ISO14001 |
| Screen Size: |
110*80*30 |
| Chip: |
U-Blox7 Chipset |
| Brand: |
Topten |
Product Description
gps tracker for car or truck with camera and fuel sensor (TK510-KW)
Main Features of Advanced GPS Tracker TK510
1. GPS tracker + RFID car alarm
2. Support max 64G SD card store
3. Two way communication
4. Oil leaking/Refuel alarm
5. Support active RFID & passive RFID
6. Full fleet manage
7. Support max 4 fuel sensor manage
8. Unique RFID car alarm function
9. Driver ID identify
10. Photo with location & driving information log function
11. Accident alarm (Option)
12. Harsh braking and harsh acceleration alarm
13. Check the car's real physical address (such as city name, Street name...(Need
Support of the center)
14. Tracking via SMS or GPRS (TCP/UDP)
15. Current location report
16. Get actual address name via SMS or website
17. Get position Google Map link via SMS
18. Tracking by distance or time interval
19. Data logger function with 4MB memory.
20. Built-in motion sensor for power saving
21. SOS panic button
22. Geo-fencing control
23. Internal backup battery
24. Over-Speed alert
25. Suddenly acceleration/brake alert
26. Engine cut-off to stop the car in safe condition
27. Monitoring voice (optional)
28. Alert when TK510 is power failure
29. I/O: 5 digital inputs, 4 analog inputs, and 5 outputs
30. Mileage report
31. Monitor fuel consumption for Fleet management(optional)
32. Monitor temperature (optional)
Power Supply | +9V ~ +35V/1.5A |
| Backup Battery | 950mAh |
| Dimension | 110mm x 80mm x 30mm |
| Installation Dimension | 180G |
| Operating temperature | -20 ~ 55 centigrade |
| Humidity | 5% to 95% non-condensing |
| Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz |
| GPS Module | Latest GPS SIRF-Star III chipset |
| C/A Code | 1.023 MHZ chip rate |
| Channels | 20channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average. |
| Hot start | 1 sec., average. |
| Warm start | 38 sec., average. |
| Cold start | 42 sec., average |
| Attitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status |
| Flash Memory | 8MB |
| Interface | 5 digital inputs, 3 negative and 2 positive triggering; 2 analog
Inputs and 5 outputs. |
Warranty,Payment,Package&Lead Time- Warranty: 1 year after sales, 3 year maintenous
-
- lead time: order quantity <300 pcs, will arrange in 3 working days upon receipt of the payment
- order quantities > 300 pcs, delivery time will be about 3 to 7 days upon receipt of the payment.
-
- Packing: Standard packing: Neutral packing in English or customized packing
-
- Payment:
- Payment terms: Bank Transfer, Western Union, Paypal
Standard Package of Advanced GPS Tracker Tk510
| main unit | 1pc |
| GSM antenna | 1pc |
| GPS antenna | 1pc |
| SOS button | 1pc |
| wiring | 1pc |
| Relay | 1pc
|
| Please contact below info to get more details ,thanks! |
| Contact | Kelly Wang |
| MB | +86 13128663645 |
