Product Description

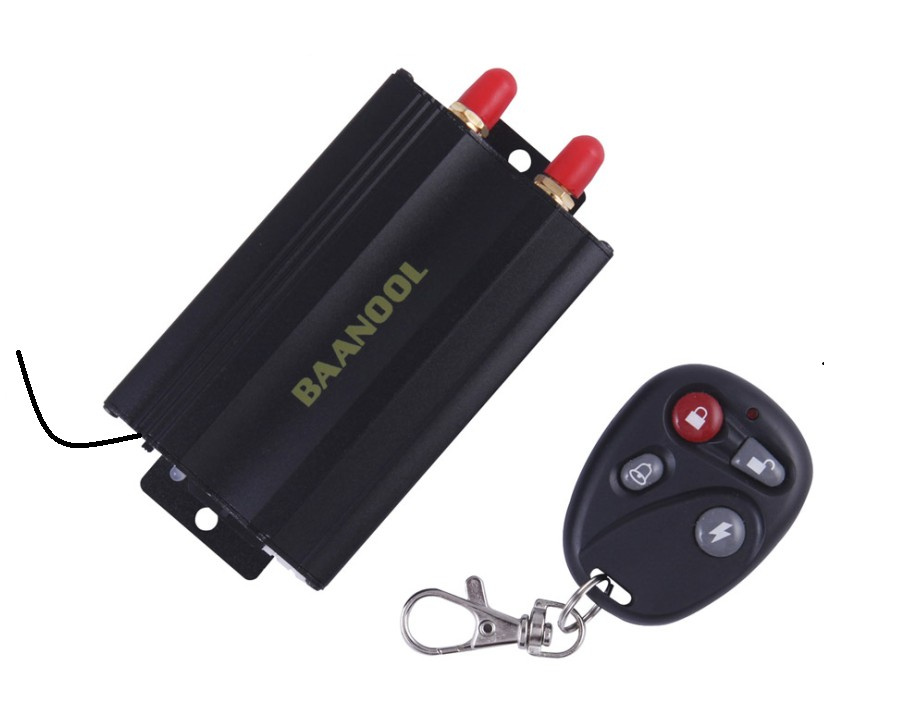

GPS vehicle tracker BN-103B SMS/GPRS dual mode switching real-time positioning and tracking
1. Function Introduction
1.1 This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
1.2 Features
1.2.1 Support both GPS & LBS (Location based service).
1.2.2 Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
1.2.3 Support GPRS on-line and GPRS re-connected automatically if GPRS drops
1.2.4 Support SMS / GPRS dual-mode switching
1.2.5 Support configuration by remote terminal.
1.2.6 Support for point-to-point, point to group, group-to-group monitoring.
1.2.7 Set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
2. Applications
Used widely for vehicle and other moving objects tracking.

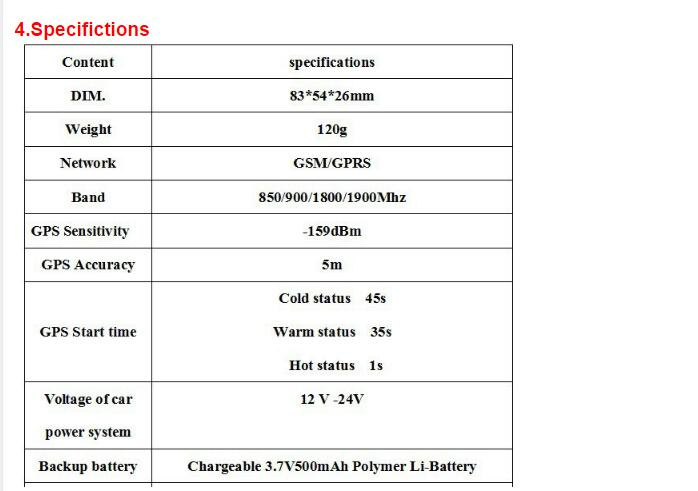

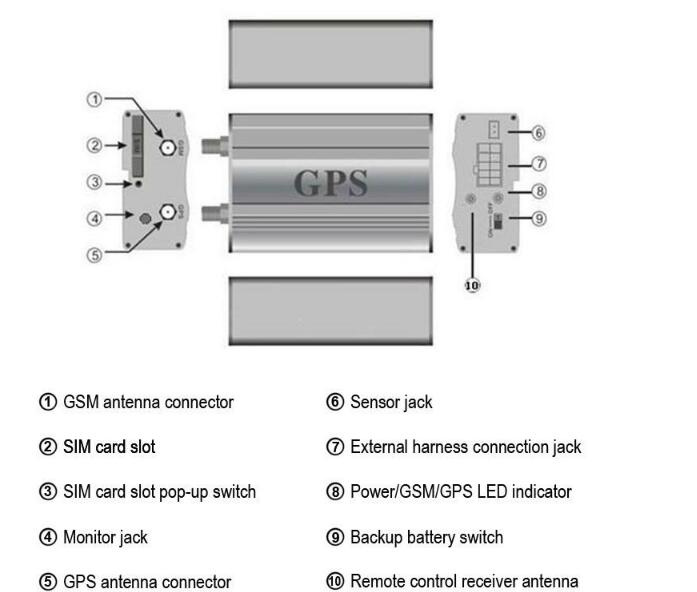

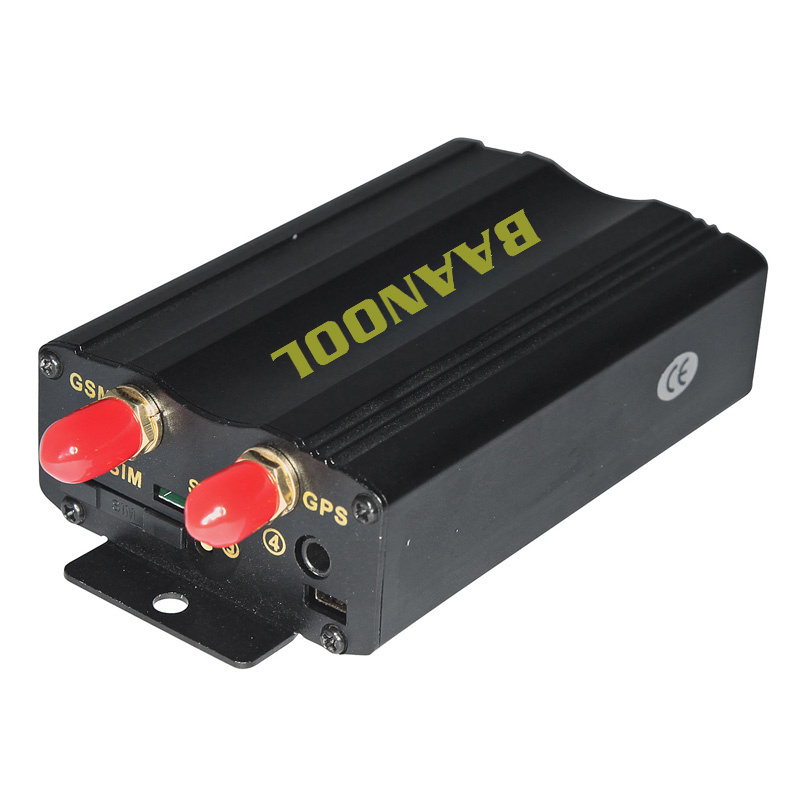

3. Hardware Description
6. Operating Instructions
6.1 Terminal Installation
6.1.1 Please ask the qualified engineers to install it.
6.1.2 Do not install it in an environment which is over GSM performance index, and please pay attention to fix the antennas in an appropriate position with good signals.
6.1.3 Pay attention to make installation location preventing water and dust.
6.1.4 Find the 10 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original car circuit showing below:

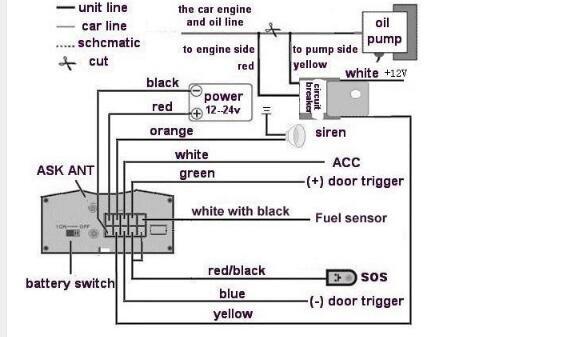

Wiring diagram
6.1.5 Note: The orange wire can be connected to the original car horn; it can also be connected to the siren you buy with the tracker. (Siren is Option)
6.2 SIM CARD Installations
6.3 Turn on the Tracker Device.
6.4 GSM/GPS LED Indicator
6.5 Initialization
6.6 Change Password
6.7 Authorization
6.8 Single Locating
6.8.1 Any number call the tracker device, it will reply a SMS including the position of latitude and longitude if don't set up the authorized number.
If authorized number has set successfully, the device won't reply SMS including the positioning of latitude and longitude when the unauthorized number dials up it.
6.8.2 Dialing the tracker device from the authorized number, it will hang up your calling and respond to a real-time latitude and longitude information as following:
Tracking location, when no GPS signal, the SMS includes the last valid latitude & longitude as well as the LAC code of current position,
the LAC code can be input in the column of "manual track" menu of web platform to check location.
6.9 Auto track continuously
6.9.1 Track with limited times upon time interval
6.9.2 Track with unlimited times upon time interval
6.9.3 Smart track upon time and distance interval
6.10 Automatic update positions of vehicle turns
6.11 GPS drift suppression
6.12 Absolute street address by SMS
6.13 Location based service (LBS)
6.14 Monitor
6.15 Data logging
6.16 Data Load
6.17 Forward the third parties' message
6.18 Charges Inquiry
6.19. Alarms
6.19.1 Low battery alarm
6.19.2 Power off alarm
6.19.3. GPS blind Spot alert
6.19.4 SOS
6.19.5 Geo-fence
6.19.6 Multi-area management
6.19.7 Movement alarm
6.19.8 Over speed alarm
6.19.9 Accident alarm (Option)
6.19.10 ACC working alarm
6.19.11. Fuel alarm
6.20 Cut off the Oil and Power System
6.21 Arm
6.22 Disarm

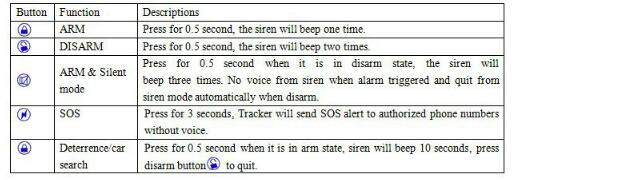

6.23 Function of Remote Controller (Option, for model B ONLY)
6.24. Alarms under Arm State
6.24.1 Door alarm
6.24.2 Shock Sensor alarm
6.24.3 ACC alarm
6.25. Silent Mode
6.26. Alarm without GSM network service
6.27 Check the Vehicle State.
6.28 Reset Hardware
6.29 Sleep Mode
6.30 Check IMEI
6.31 Terminal (local) Time Setting
6.32 TCP/UDP switch
6.33 Configure parameters by USB
6.34 GPRS Setting
6.35 Less GPRS traffic
6.36 Activate "Fuel" value in GPRS data
6.37. Modes Switch between "SMS" and "GPRS"
6.38 Set up monitor center number

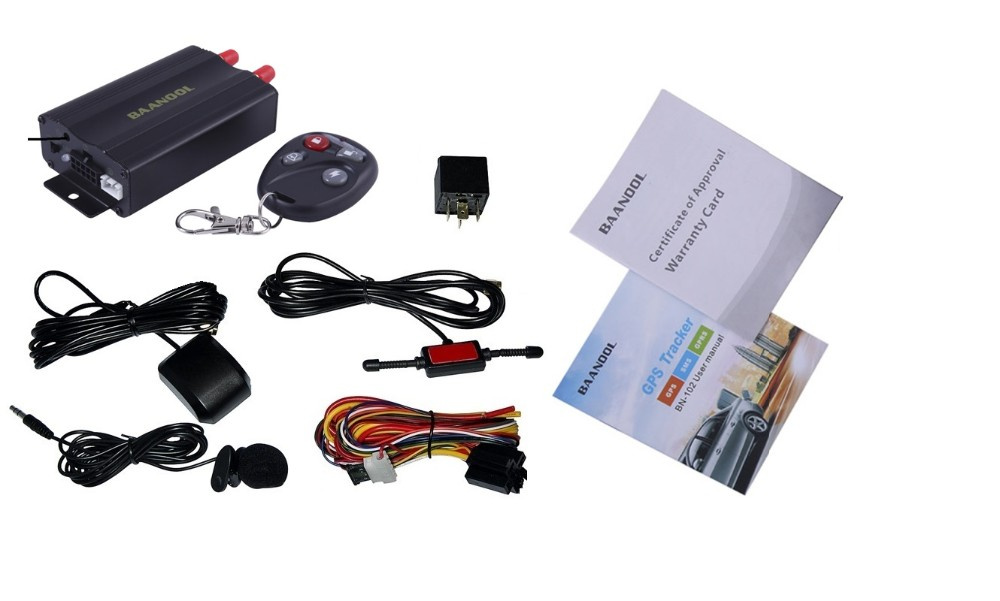

6.39 Web platform and PC installation tracking software user manualPackage include : (no box)
GPS Unit
Remote controller(one)
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
manual
