GPS303b Auto Car Motorcycle GPS Tracker Water-Resistant Anti-Theft GSM GPRS Tracking Device with Sos Alarm Over Speed Alert No Box

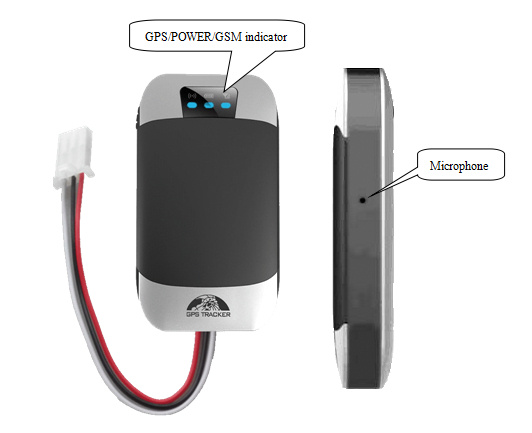

Hardware Description:

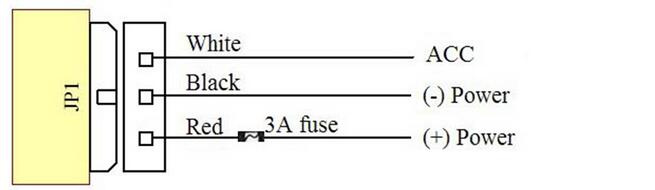

Wiring Diagram:

Find the 12 PIN harness and insert it into the corresponding holes of the products, and connect thewires with the original car circuit showing below:

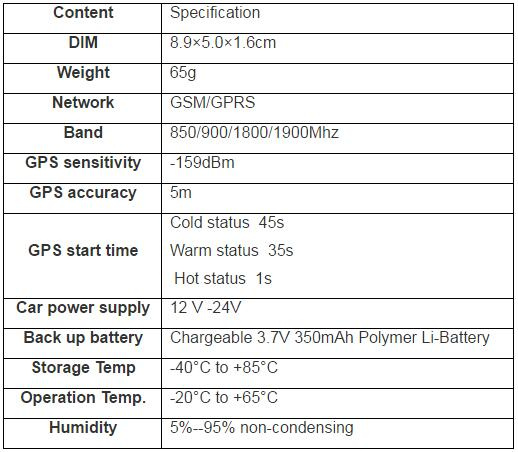

Specifications




Usage

1.Input sim card, Turn on the device, Support to set 5 admin number monitor the GPS device.

2. Single Locating

3. Auto track continuously

4. Turning points update automatically

5. GPS drift suppression

6. Exact street address

7. Location based service (LBS) /Cell-ID Locating

8. Voice Monitor

9. Data logging

10. Data load

11. Forward the third parties' message

12.SIM card balance inquiry

13. ACC working alarm

14.Arm

15.Disarm

16.Decide how many times of alarm message

17.Low battery alarm

18.Power off alarm

19.GPS blind Spot alert

20.Geo-fence

21.Multi-area management

22.Movement alarm

23. Over speed alarm

24.Alarms under ARM State: ACC alarm; Built in Acceleration Sensor Alarm

25. Sleep Mode:sleep by time,sleep by shock sensor,deep sleep by shock sensor, no sleep mode

26.Start Work on specific time

27.Check IMEI

28.Check the Vehicle State

29.Terminal(Local)time setting

30.Reset Hardware

31.Configure parameters by USB

32.TCP/UDP Switch

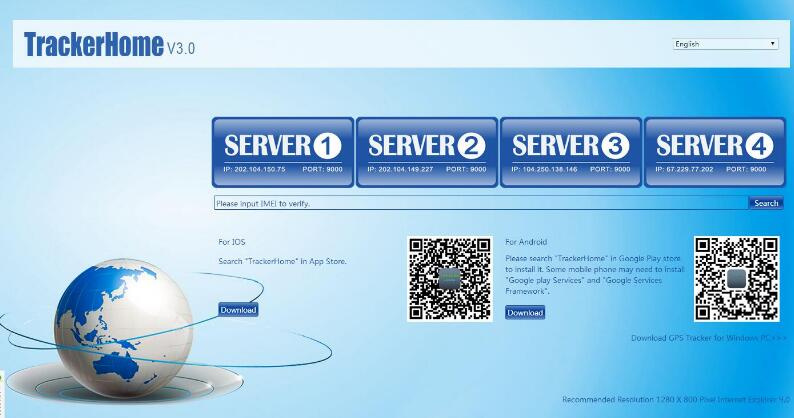

Web platform  ( 10 years free!! )




Package Include:

 1pc * GPS Main Unit GPS303B
 1pc * 3Pin harness
 1pc * Screwdriver
 1pc * User Manual
