| Prod Model: |
QL-51B |
| Size: |
70mm*9mm*5mm |
| Capacity: |
50g |
| Ultimate Overload: |
%Fs150 |
| Rated Output: |
Mv/V 0.5±0.15 |
| Pattern: |
Mini Load Cell |
Product Description

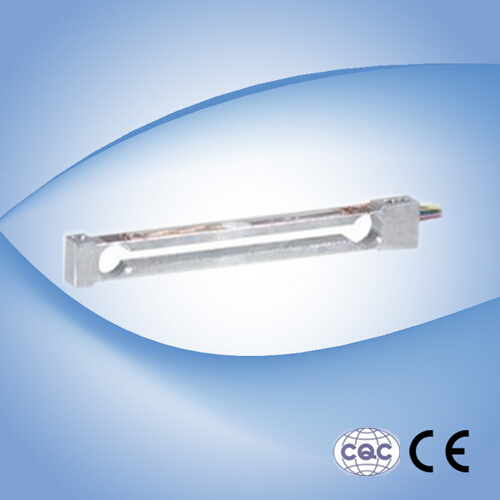

Gram Range Force Cell (QL-51B)QL-51B miniature sensor are available in the capacities from 50g
Aluminum construction, silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic balance, electronic platform scale and other electronic weighing devices.
Features:Capacity :50 g
Defend grade: IP65
High accuracy.
Aluminum parallel beam
Integral installation, Low profile and nice exterior.

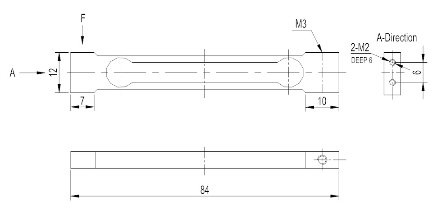

Product Size:
| Specifications: |
| capacity | g | 50 |
| ultimate overload | %FS | 150 |
| rated output | mV/V | 0.5±0.15 |
| excitation voltage | Vdc | ≤6 |
| combined error | %FS | ± 0.05 |
| zero unbalance | mV/V | ± 0.5 |
| non-linearity | %FS | ± 0.05 |
| hysteresis | %FS | ± 0.05 |
| repeatability | %FS | ± 0.05 |
| creep | %FS/5min | ± 0.05 |
| input resistance | Ω | 1055 ± 10 |
| output resistance | Ω | 1000 ± 10 |
| insulation resistance | M Ω | ≥ 2000 @ 50 Vdc |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.05 |
| temperature coefficient of ZERO | %FS/10ºC | ± 2.0 |
Electrical connection: Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
The cable length could be chose by customer's application.
