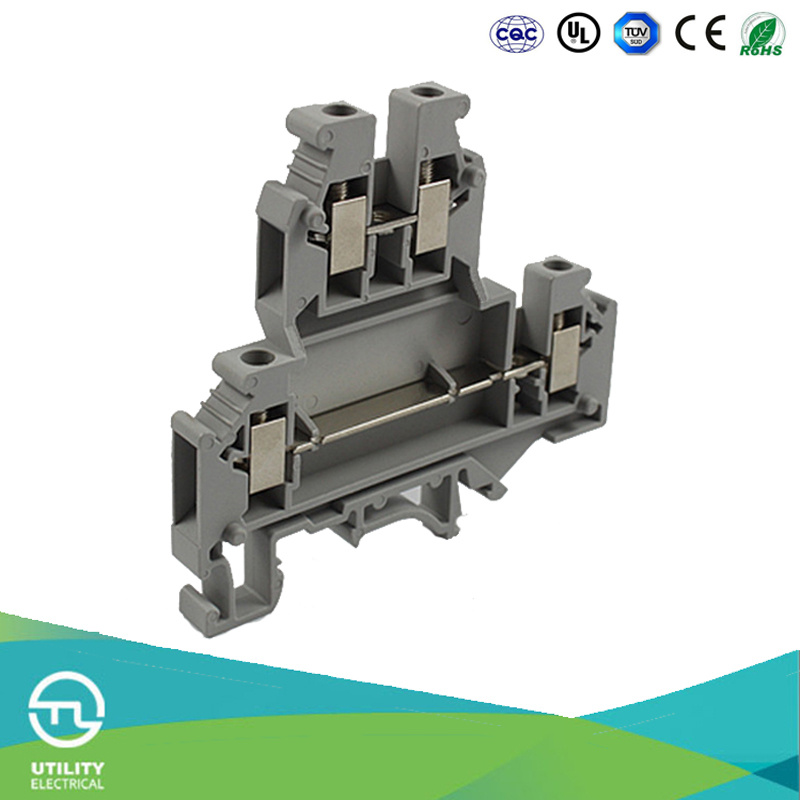

| Prod Model: |
JUT1-4/2Q |
| Current: |
32A |
| AWG: |
24-12 |
| Rated Section: |
4mm2 |
| International Standard: |
IEC 60947-7-1 |
| Rigid Cable: |
0.2-4mm2 |
| Solf Cable: |
0.2-4mm2 |
| Voltage: |
500V |
| Material: |
Copper |
| Application: |
Conduct Electricity |
| Type: |
Screw Type |
| Brand: |
Utl |
Product Description
UTL ELECTRICAL CO,. LTD. is a PROFESSIONAL MANUFACTURE of all kinds of terminal blocks, which was founded in 1990. Through persistent research and development, we have grown into a leading manufacturer of this field. The main products have gained the certifications, such as VDE, UL, CE, RoHS, ISO9001, CQC and CCS etc.
PHOENIX UTL PHOENIX UTL
| UK1.5N | JUT1-1.5 | SAK2.5EN | JUT2-2.5 |
| UK3N | JUT1-2.5 | SAK4EN | JUT2-4 |
| UK2.5B | JUT1-2.5B | SAK6EN | JUT2-6 |
| UK5N | JUT1-4 | SAK10EN | JUT2-10 |
| UK6N | JUT1-6 | SAK16EN | JUT2-16 |
| UK10N | JUT1-10 | SAK35EN | JUT2-35 |
| UK16N | JUT1-16 | SAK70/35 | JUT2-70 |
| UK35N/UKH25 | JUT1-35 | EK2.5/35 | JUT2-2.5PE |
| UKH50 | JUT1-50 | EK4/35 | JUT2-4PE |
| UKH70/UKH95 | JUT1-95 | EK6/35 | JUT2-6PE |
| UKH150 | JUT1-150 | EK10/35 | JUT2-10PE |
| UKH240 | JUT1-240 | EK16/35 | JUT2-16PE |
| USLKG1.5N | JUT1-1.5PE | EK35/35 | JUT2-35PE |
| USLKG2.5 | JUT1-2.5B/PE | ASK1/EN | JUT2-4RD |
| SLKG2.5N/USLk | JUT1-2.5PE | EW35 | E/2 |
| USLKG5 | JUT1-4PE | AKB2.5 | JUT2-2.5E |
| UKK3 BU | JUT1-2.5/2 | DK4QEN | JUT2-4/2 |
| Model | JUT1-4/2Q |
| Housing | PA66 VO |
| Conducting Strip | Copper Tin-Plated |
| Screw | Brass Nickel-Plated |
| Pressing Box | Brass Nickel-Plated |
| Thickness | 6.2mm |
| Width | 67mm |
| Height | 62mm/67mm |
| AWG | 24-12 |
| Voltage | 500V |
| Current | 32A |
| End Plate | G-JUT1-2.5/4Q |
| Central Adaptor | JFB10-4 |
| Side Adaptor | JEB2-4,JEB3-4,JEB10-4 |
| Insulating Spacer | JS-KK3 |
| Mark Bar | ZB6 |
Packaging & Shipping
Shipping:
Samples:will be prepared within three days.
Bulk order:around one weekdays.
Large order:20-25 days will be OK.
Company Information
UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.
Workshop
UTILITY are Cengcengbaguan accordance with the appropriate standards by the professional staff to produce marketable, used worldwide industrial automation products as their responsibility to actively follow the introduction, learn technology, science and technology innovation internationally famous brand products, forge ahead.
"UTILITY" service drew our customers appreciated."Takeoff UTILITY, proud UTILITY man",who is the UTILITY with advanced management,strong technical strength, perfect process technology,first-class testing equipment and excellent mold processing technology to produce the premise of higher quality products,with excellent sales team,well sales network and professional services,open up the market to win a new chapter today.
Certifications
UTILITY painstaking research of the IEC, UL, CSA, GB, CE, CCC and other international and domestic standards for terminals, and in accordance with these standards preparing their own more stringent corporate standards, from the development, mold design, raw material procurement, production, plastic parts molding products, metal parts, to finished product assembly and quality testing, packaging, shipping, etc.
