Green Prototype PCB Circuit with HASL Printed Circuit Board
| Price: |
US $ 0.86/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-265-V2.65 |
| Finished Thickness: |
1.679mm |
| Pth Cu Thickness: |
22.66um |
| Inner Layer Cu Thickness: |
35 Um |
| Surface Cu Thickness: |
Surface Cu Thickness |
| Surface Finish: |
Lead- Free HASL |
| Solder Mask: |
Green |
| Legend: |
White |
| Trace Width (mm): |
0.376mm |
| Spacing (mm): |
0.176 mm |
| Warp And Twist: |
0.21% |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Pass 235±5ºC solderability test prototype 8 Layer HASL Lead Free PCB with Green Mask No
Delamination in Gps Tracking Device
Commodity Introduction
This is a type of FR-4 PCB for the application of Gps Tracking Device. It's an 8 layer board at
1.6mm thick. The base laminate is from ShengYi, Solder mask and silkscreen from Nan Ya and

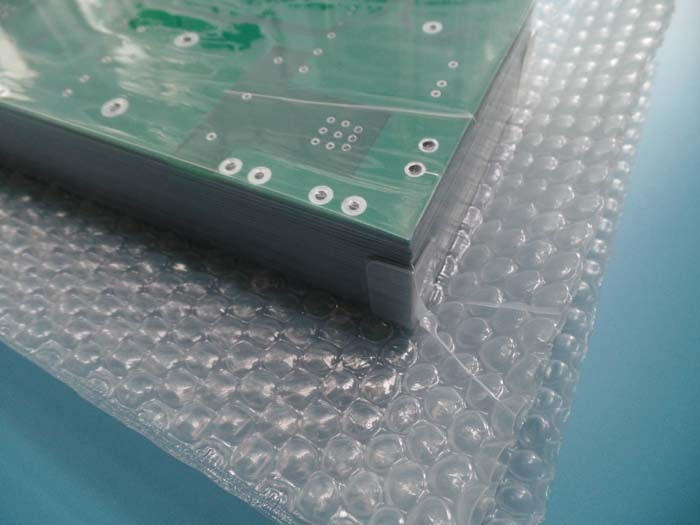

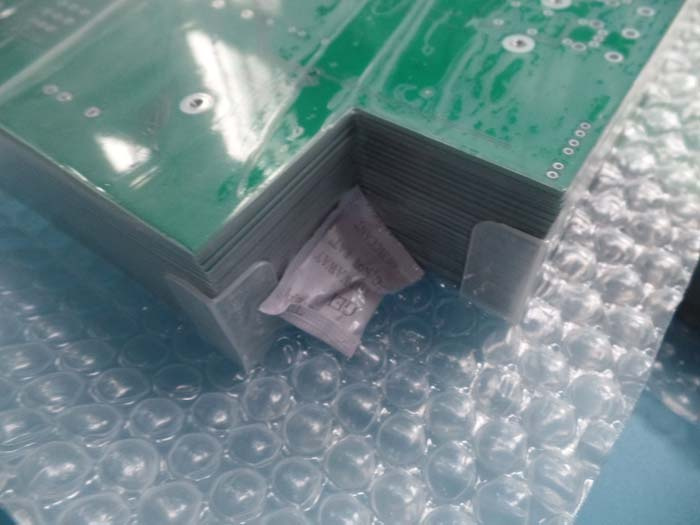

Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels
are packed separately.
Parameters & Data Sheet| Item | Description | Requirement | Actual |
|
| Laminate | Laminate Type | FR4:CTI:175V-249V | FR4:CTI:175V-249V |
| Supplier | SHENGYI | SHENGYI |
| Tg | TG170 | TG170 |
| Finished thickness | 1.57+/-0.15 MM | 1.679MM |
| Plating Thickness | PTH Cu thickness | 20 um | 22.66um |
| Inner layer Cu Thickness | 35 um | 35 um |
| Surface Cu thickness | 35 um | 53.2 um |
| Solder Mask | Material type | LP-4G G-05 | LP-4G G-05 |
| Supplier | Nan Ya | Nan Ya |
| Color | Green | Green |
| Single / both sides | Both Sides | Both Sides |
| S/M thickness | >= 10.0 um | 26.1um |
| 3M tape test | NO Peel Off | no peel off |
| Legend | Material type | S-380W | S-380w |
| Supplier | Tai yo | Tai yo |
| Color | White | White |
| Location | Both Sides | Both Sides |
| 3M tape test | No peel off | no peel off |
| Circuit | Trace Width (mm) | 0.25+/-20%mm | 0.376mm |
| Spacing (mm) | 0.38+/- 20%mm | 0.176 mm |
| Identification | UL mark | 94V-0 | 94V-0 |
| Company Logo | QM | QM |
| Date code | 1017 | 1017 |
| Mark location | CS | CS |
| Surface Finish | Lead- free HASL | >3.85um | 5.17um |
| Reliabilty Tests | Thermal shock test | 288±5ºC,10sec,
3 cycles | NO Discolor,
NO Delamination |
| solder abllity test | 235±5ºC | 100% wetting |
| Function | Electrioal Test | 100% | pass |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | | 100% | Pass |
| Appearance | Visual inspection | 100% | Pass |
| warp and twist | <= 0.75% | 0.21% |
| Others | V-Cut thickness | NA | OK |
| Angle | NA | OK |
Finished dimension (unit: mm): including v-cut| No | Required | Actual Dimension |
| 1 | 190 | 189.97 | 189.94 | 189.96 | 189.96 | 189.94 |
| 2 | 128 | 127.98 | 127.95 | 127.96 | 127.96 | 127.95 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| No | Required | PTH/NPTH | Actual Dimension |
| 1 | 0.900 | Y | 0.850 | 0.875 | 0.900 | 0.825 |
| 2 | 1.020 | Y | 1.075 | 0.950 | 1.075 | 0.950 |
| 3 | 1.300 | Y | 1.300 | 1.350 | 1.350 | 1.300 |
| 4 | 3.050 | Y | 3.100 | 3.075 | 3.050 | 3.025 |
Learn PCB and Buy PCB
High CTI 600V PCB
What is Comparative Tracking Index (CTI)?
Here CTI is a quality item that refers to copper clad laminate which is widely used in home
electrical appliance or other high-voltage (110V, 220V) electrical apparatus. It is a simulated
condition that the PCB is polluted in its working environment, which result in leakage or short
-circuit at the track gap of the PCB surface, being accompanied by heat releasing and charring.
The way of experiment is that continous 50 drops of 0.1% ammonium chloride solution are dropped
between two points on the PCB surface, 30 seconds per drop, turning on high voltage AC current
to do the test. Firstly trying 300V to generate 1A current. There's ammonium chloride solution on
the surface, so after current is switched on it will produce resistance who also bring out heat, then
the solution is slowly evaporated. 2nd drop is on and till to 50 drops to see if the PCB has leakage
or not. Once the PCB has 0.1A creepage and exceeds 0.5 seconds, it's judged Failure.
The quality of CTI of laminate refers to the externally applied voltage value and without failure of
50 drops. If abovementioned 300V passed, we can increase the voltage to 400V, 500V or 600V
till to the high value before failure. That is the data of the laminate CTI.
Bicheng offers high CTI PCB's (high CTI 600V FR-4 and aluminum backed material) which is
working in such harsh environment of high voltage, filth and humidity.
IEC 112 standard has 3 degrees as follows | Comparative Tracking Index (in Volts) | Class | | 600 <= CTI | I | | 400 <= CTI < 600 | II | | 175 <= CTI < 400 | IIIA | | 100 <= CTI < 175 | IIIB |
|
As per the standard of IEC,the smaller a substrate of CTI grade, the better resistance to tracking.
Normal FR-4 ranges 175-225V
