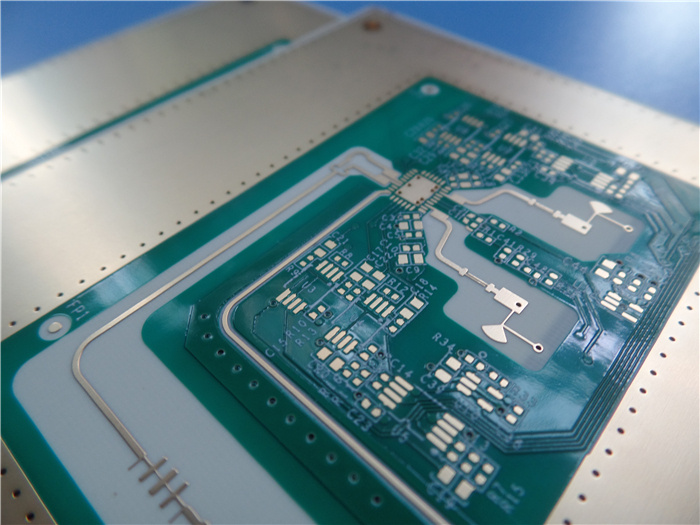

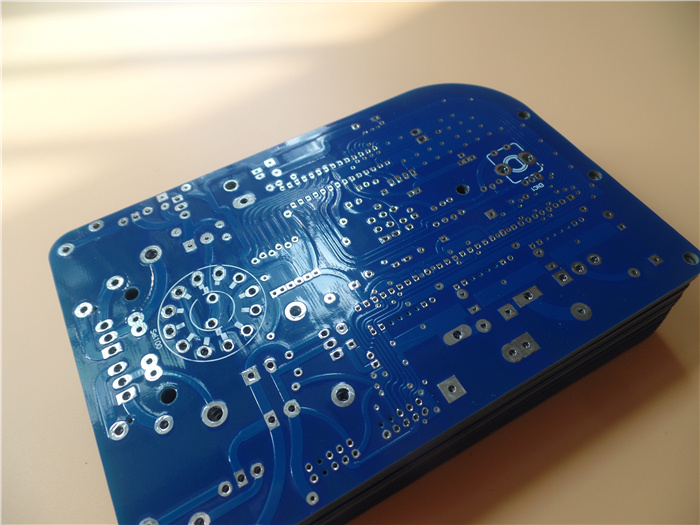

Green Solder Mask PCB Circuit Board Rapid Prototype Rogers PCB
| Price: |
US $ 0.98/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-651-V6.51 |
| Board Thick: |
1.6mm |
| Surface Finish: |
HASL Lead Free |
| Out Layer Copper: |
1.5 Oz |
| Soldermask Color: |
Green |
| Silkscreen Color: |
White |
| Minimum Trace And Space: |
5 Mil/5.5 Mil |
| Minimum / Maximum Holes: |
0.9/3.1mm |
| Final Foil Internal: |
1 Oz |
| Via: |
Plated Through Hole(Pth), Via Tented. |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Company Profile
Bicheng Enterprise Limited which was founded in Shenzhen China in 2003 is a professional
PCB export enterprise. We have established a good relationship of cooperation with well-known
enterprises in the same industry. Our PCB products range from fiberglass PCB, high frequency
PCB to metal core PCB and ceramic PCB's. This is a unique printed circuit board supplier and
export enterprise. She has groups of skilled manufacturing facilities just like the experienced
football players in the football field and every batch of shipment is like a beautiful gift transmitted
to your hands.
Printed Circuit Board
Aluminum PCB
High Frequency PCB
Flex PCB
Technology Information
ITEQ Laminate/ Prepreg : IT-140TC / IT-140BS
IPC-4101A Spec / 21
LAMINATE(IT-140TC) | Property | Thickness<0.50 mm | Thickness>=0.50 mm | Units | Test Method |
| [0.0197 in] | [0.0197 in] |
Typical
Value | Spec | Typical
Value | Spec | Metric | IPC-TM-650 |
| (English) | (or as noted) |
Peel Strength,
minimum | | | | | N/mm | 2.4.8 |
A. Low profile
copper foil and
very low profile
copper foil - all
copper weights
> 17mm [0.669
mil] | | | | | (lb/inch) | 2.4.8.2 |
B.Standard
profile copper
foil | 0.96 (5.5) | 0.70 (4.0) | 0.96 (5.5) | 0.70 (4.0) | | 2.4.8.3 |
1.After Thermal
Stress | | | | | | |
2.At 125°C
[257 F] | | | | | | |
3.After Process
Solutions | 1.75 (10 ) | 0.80 (4.57) | 1.93 (11.0) | 1.05 (6.00) | | |
| | 1.66 (9.5) | 0.70 (4.00) | 1.66 (9.5) | 0.70 (4.00) | | |
| | 1.49 (8.5) | 0.55 (3.14) | 1.49 (8.5) | 0.80 (4.57) | | |
Volume Resistivity,
minimum | | | | | MW-cm | 2.5.17.1 |
| A. C-96/35/90 | 5x1010 | 106 | -- | -- |
B. After moisture
resistance | -- | -- | 5x1010 | 104 |
C. At elevated
temperature
E-24/125 | 5x1010 | 103 | 5x1010 | 103 |
Surface Resistivity,
minimum | | | | | MW | 2.5.17.1 |
| A. C-96/35/90 | 3.5x1010 | 104 | -- | -- |
B. After moisture
resistance | -- | -- | 3.5x1010 | 104 |
C. At elevated
temperature
E-24/125 | 6x1010 | 103 | 6x1010 | 103 |
Moisture
Absorption,
maximum | 0.3 | -- | 0.1 | 0.8 | % | 2.6.2.1 |
Dielectric
Breakdown,
minimum | -- | -- | 60 | 40 | kV | 2.5.6 |
Permittivity
(Dk, 50%
resin content) | 4.6 | 5.4 | 4.6 | 5.4 | -- | 2.5.5.9 |
(Laminate &
Laminated
Prepreg) |
| A. 1MHz |
Loss Tangent
(Df, 50% resin
content) | 0.016 | 0.035 | 0.016 | 0.035 | -- | 2.5.5.9 |
(Laminate &
Laminated
Prepreg) |
| A. 1MHz |
Flexural
Strength,
minimum | | | | | N/mm2 | 2.4.4 |
A. Length
direction | -- | -- | 500-530 | 415 | (lb/in2) |
| | -- | -- | (72,500-76,850) | -60,190 | |
B. Cross
direction | -- | -- | 430-460 | 345 | |
| | -- | -- | (62,350-66,700) | -50,140 | |
Arc Resistance,
minimum | 120 | 60 | 120 | 60 | s | 2.5.1 |
Thermal Stress
10 s at 288°C
[550.4F],
minimum | | | | | Rating | 2.4.13.1 |
| A. Unetched | Pass | Pass
Visual | Pass | Pass
Visual |
| B. Etched | Pass | Pass
Visual | Pass | Pass
Visual |
Electric Strength,
minimum | 45 | 30 | -- | -- | kV/mm | 2.5.6.2 |
(Laminate &
Laminated
Prepreg) |
| Flammability, | V-0 | V-0 | V-0 | V-0 | Rating | UL94 |
(Laminate &
Laminated
Prepreg) |
Glass Transition
Temperature
(DSC) | 140 | 135
minimum | 140 | 135
minimum | ˚C | 2.4.25 |
Decomposition
Temperature | -- | -- | 305 | -- | ˚C | 2.4.24.6 |
| (5% wt loss) |
| Z-Axis CTE | | | | | | 2.4.24 |
| A. Alpha 1 | -- | -- | 55 | -- | ppm/˚C |
| B. Alpha 2 | -- | -- | 290 | -- | ppm/˚C |
C. 50 to 260
Degrees C | -- | -- | 4.2 | -- | % |
Thermal
Resistance | | | | | | 2.4.24.1 |
| A. T260 | -- | -- | 15 | -- | Minutes |
| B. T288 | -- | -- | 2 | -- | Minutes |
CAF
Resistance | -- | -- | Pass | AABUS | Pass/Fail | 2.6.25 |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
More >
